The three cylinder configurations (12V, 16V and 20V) in the 1163 engine family cover a performance range from 4,440 to 7,400kW at 1,300 rpm. With a 230mm bore and 280mm stroke, the series gets its name from its per cylinder capacity of 11.63 liters. Series 1163 engines are in service in both civilian and defense applications ranging from catamaran ferries to coast guard vessels.
PART NUMBER | XT5610100140 |
ENGINE TYPE | MTU 1163 ENGINE |
DESCRIPTION | PISTON RING F/TURBOCHARGER |
DIMENSIONS | Ø 50,2 X 2,5 X 2,1 |
UNIT WEIGHT | 7.620 KG |
HS CODE | 84149000 |
NATO-VERS.-NR. | 2815123649904 |

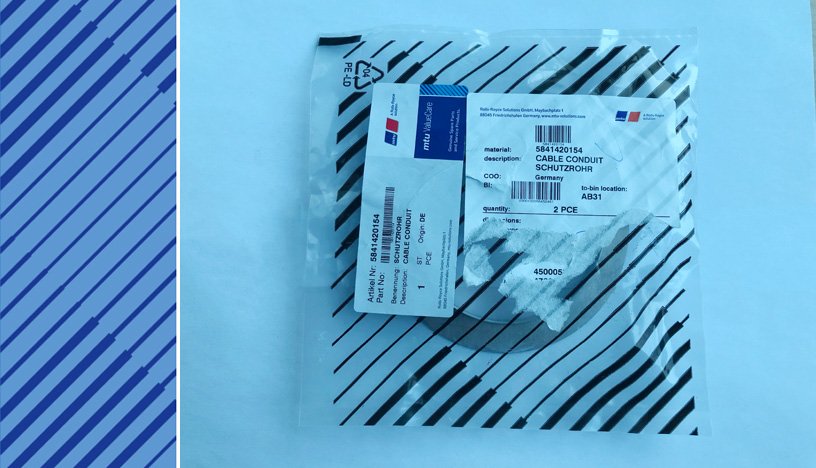

PART NUMBER | 5841420154 |
ENGINE TYPE | MTU 1163 ENGINE |
DESCRIPTION | CABLE CONDUIT |
DIMENSIONS | N/A |
UNIT WEIGHT | 0.067 KG |
HS CODE | 84099900 |
NATO-VERS.-NR. | 4730123479517 |

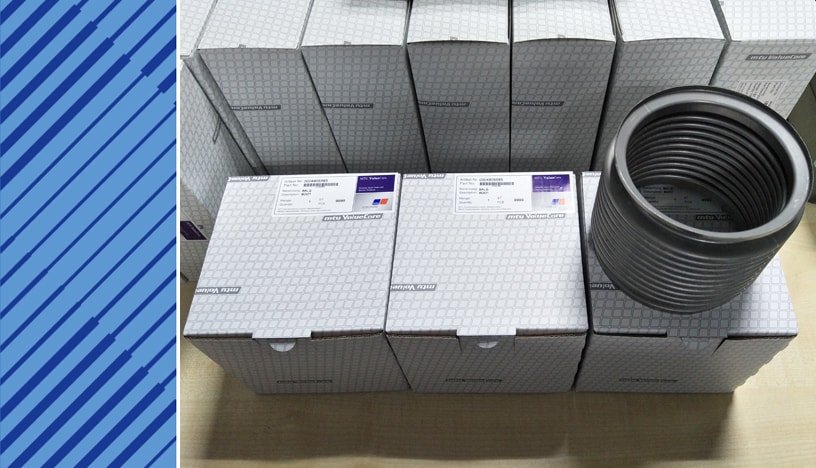

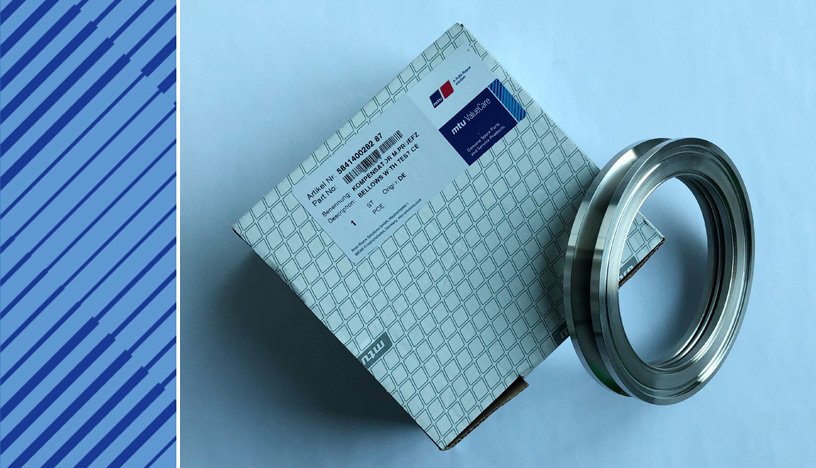

PART NUMBER | 5841400282/87 |
ENGINE TYPE | MTU 1163 ENGINE |
DESCRIPTION | BELLOWS WITH TEST CERT. 3.1 |
DIMENSIONS | N/A |
UNIT WEIGHT | 0.389 KG |
HS CODE | 84099900 |
NATO-VERS.-NR. | 2990123479418 |

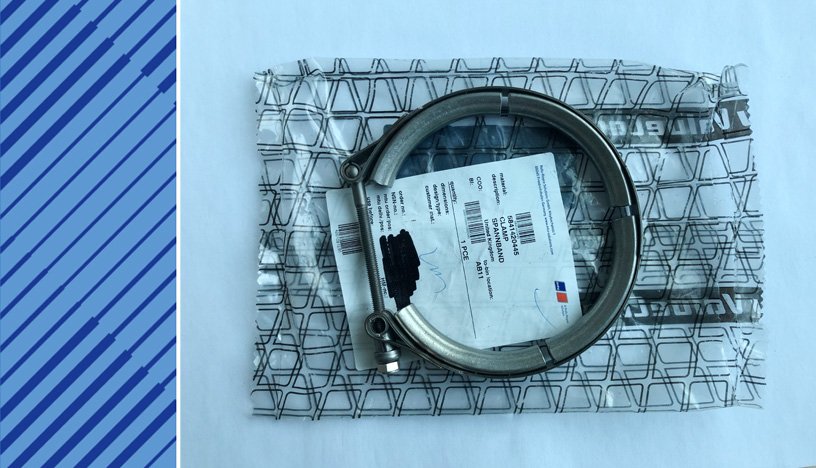

PART NUMBER | 5841420445 |
ENGINE TYPE | MTU 1163 ENGINE |
DESCRIPTION | CLAMP |
DIMENSIONS | T140103565AB2A |
UNIT WEIGHT | 0.244 KG |
HS CODE | 73269098 |
NATO-VERS.-NR. | 4730123604852 |

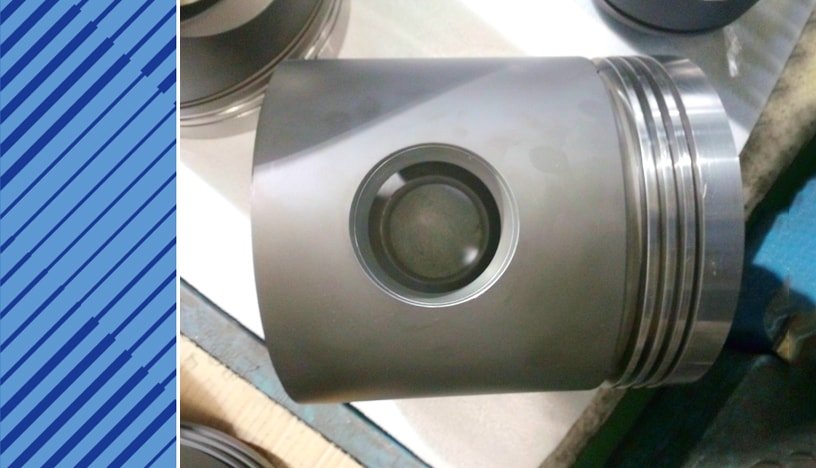

PART NUMBER | 5840371625 |
ENGINE TYPE | MTU 1163 ENGINE |
DESCRIPTION | PISTON CROWN |
DIMENSIONS | N/A |
UNIT WEIGHT | 7.620 KG |
HS CODE | 84099900 |
NATO-VERS.-NR. | 2815123580493 |
PART NUMBER | 0180944502 |
ENGINE TYPE | MTU 1163 ENGINE |
DESCRIPTION | PREFILTER |
DIMENSIONS | GESTR. LAENGE 1135MM |
UNIT WEIGHT | 0.160 KG |
HS CODE | 84213100 |
NATO-VERS.-NR. | 2940123843755 |

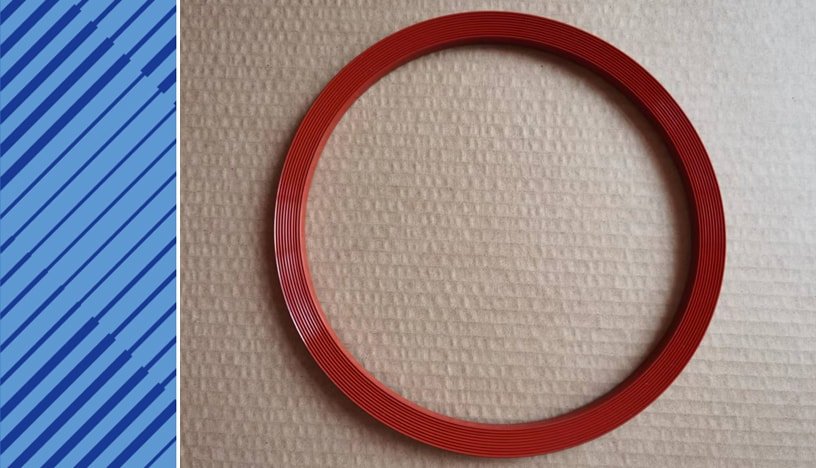

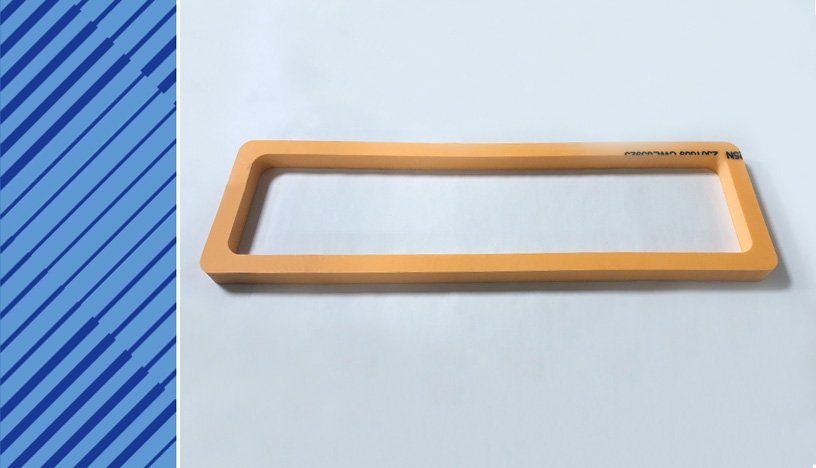

PART NUMBER | 5840940180 |
ENGINE TYPE | MTU 1163 ENGINE |

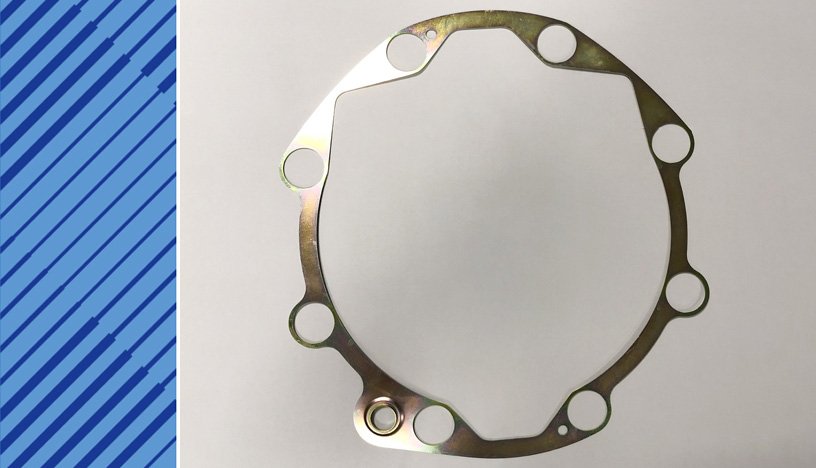

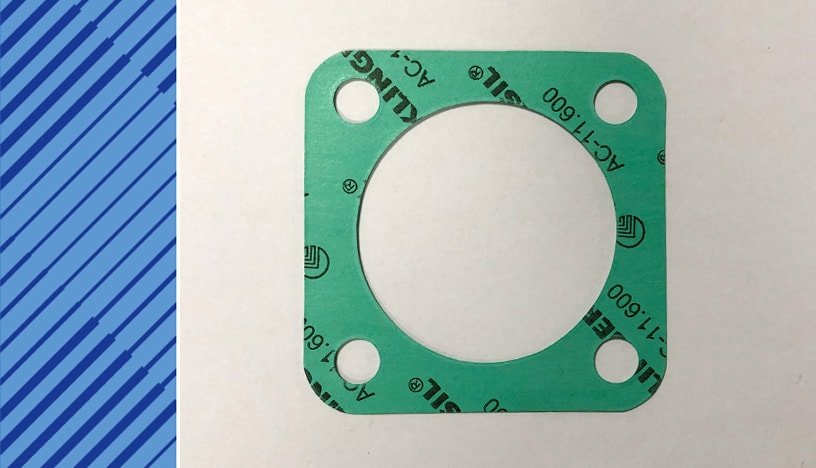

DESCRIPTION | GASKET |
DIMENSIONS | N/A |
UNIT WEIGHT | 0.170 KG |
HS CODE | 39269097 |
NATO-VERS.-NR. | 5330123851397 |
PART NUMBER | X00E50214448 |
ENGINE TYPE | MTU 1163 ENGINE |
DESCRIPTION | ACTUATOR |
DIMENSIONS | HARTVERGUSS,MIT OELRUECKLAUF |
UNIT WEIGHT | 7.987 KG |
HS CODE | 90329000 |
NATO-VERS.-NR. | 3010123845496 |

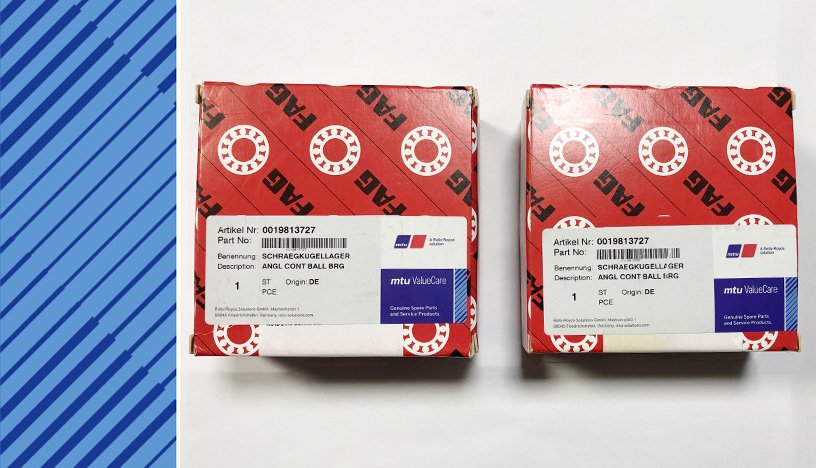

PART NUMBER | 0019813727 |
ENGINE TYPE | MTU 1163 ENGINE |
DESCRIPTION | ANGL CONT BALL BRG |
DIMENSIONS | Z-575915.SKL |
UNIT WEIGHT | 1.596 KG |
HS CODE | 84821090 |
NATO-VERS.-NR. | 3110123349092 |

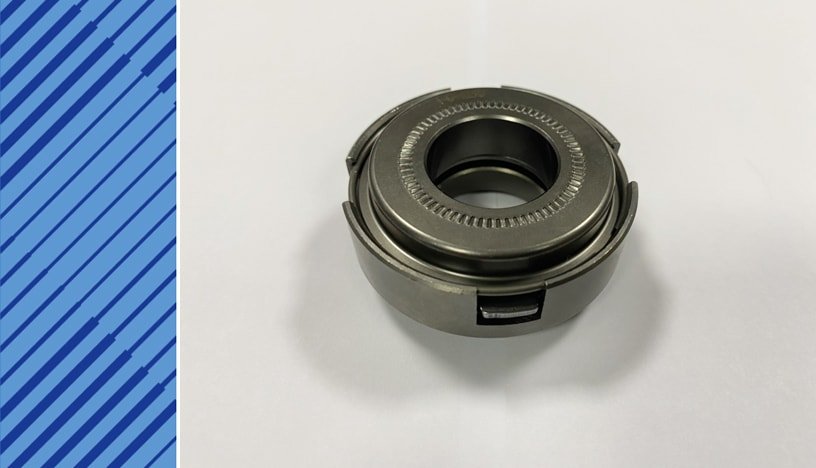

PART NUMBER | 8492000005 |
ENGINE TYPE | MTU 1163 ENGINE |
DESCRIPTION | ROTARY SEAL |
DIMENSIONS | N/A |
UNIT WEIGHT | 0.145 KG |
HS CODE | 84842000 |
NATO-VERS.-NR. | 4320123183791 |

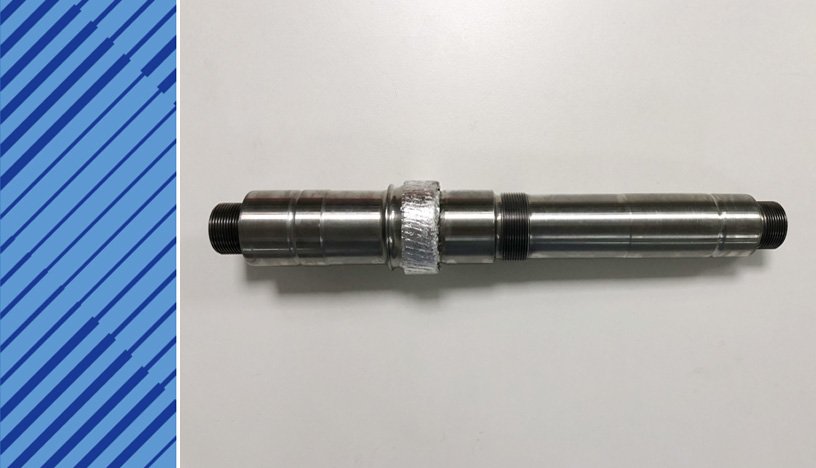

PART NUMBER | 5842040714 |
ENGINE TYPE | MTU 1163 ENGINE |
DESCRIPTION | SHAFT |
DIMENSIONS | N/A |
UNIT WEIGHT | 3.500 KG |
HS CODE | 84831095 |
NATO-VERS.-NR. | 4320123354455 |
PART NUMBER | 5205304131 |
ENGINE TYPE | MTU 1163 ENGINE |
DESCRIPTION | TRAVEL SENSOR |
DIMENSIONS | FA-26/B |
UNIT WEIGHT | 1.400 KG |
HS CODE | 90329000 |
NATO-VERS.-NR. | 5945123604708 |
PART NUMBER | 5110850060 |
TURBO MODEL | ZR210 / 007 |
DESCRIPTION | PISTON RING |
DIMENSIONS | Ø 40,05 X 2 X 1,425 |
UNIT WEIGHT | 0.002 KG |
HS CODE | 84099900 |
NATO-VERS.-NR. | 2815123349464 |
PART NUMBER | 5120850560 |
TURBO MODEL | ZR210 / 007 |
DESCRIPTION | PISTON RING F/TURBOCHARGER |
DIMENSIONS | Ø 50,2 X 5 X 2,1 |
UNIT WEIGHT | 0.013 KG |
HS CODE | 84099900 |
NATO-VERS.-NR. | 2815124196114 |
PART NUMBER | 5120820226 |
TURBO MODEL | ZR210 / 007 |
DESCRIPTION | HEAT SHIELD |
DIMENSIONS | N/A |
UNIT WEIGHT | 0.160 KG |
HS CODE | 84149000 |
NATO-VERS.-NR. | 2590123855412 |
PART NUMBER | 5120251210 |
TURBO MODEL | ZR210 / 007 |
DESCRIPTION | BEARING |
DIMENSIONS | N/A |
UNIT WEIGHT | 1.080 KG |
HS CODE | 84149000 |
NATO-VERS.-NR. | 3130123650915 |
Destroyers, frigates, and corvettes: Equipped with mtu engines and propulsion systems, corvettes, frigates and destroyers are superbly equipped for their demanding tasks. Benefits of our engines include a high power concentration at low weight and excellent maneuverability.
Mine countermeasure vessels: At mtu we’ve always been a leader in the development of propulsion systems with low magnetic and acoustic signatures. And this is exactly what you're looking for in an engine if you're operating mine countermeasure vessels.
Offshore Patrol Vessels :Uneventful patrols on the high seas can suddenly turn into serious operations. When they do, you need a robust propulsion system which keeps going whatever the situation.
Amphibious and support vessels: Amphibious and support vessels might not be active on the front, but they're still vital for transport troops and equipment where it is needed. That’s why they need the best and most reliable propulsion systems around. Our ultra-reliable propulsion systems ensure you always arrive on time.
High Speed Patrol Vessels: With a wide range of duties including police, coast guard, border control and customs, inshore patrol vessels need propulsion systems with very fast responses..
Our mission: your long-term success, we full range of logistical support includes analysis, spare parts, training and technical documentation and more, products and services to match your specific needs, helping you safeguard uptime and reduce costs.
Last but not least we also offer you thoroughly inspected used parts. The advantage: they are usually immediately available and less expensive.
Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used MTU parts.
