MTU 538 Parts | 000N33714/1 | VALVE

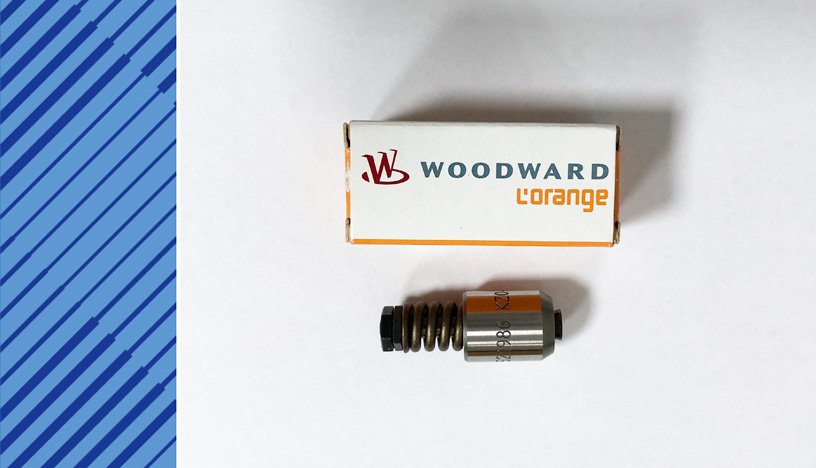

000N33714/1 VALVE

Other
Other 514D19001/1 GASKET 5602030680 GASKET 135L45018/1 SLOTTED NUT 8352010073 TAB WASHER 5602030380 GASKET 5602011380 GASKET 5602011280 GASKET 5602011480 GASKET 5602010980 GASKET 135L35003/1 BUSHING 5602010880 GASKET 700217040001 SHAFT SEAL RING 5602011880 GASKET 000N13235/1 GASKET 700327012000 GROMMET 735038008106 RUBBER HOSE 135D11006/1 RUBBER SEAL 135D01012/1 RUBBER GROMMET 700327015000 GROMMET 000N33715/1 DELIVERY VALVE 000N33714/1 VALVE 5600740280 GASKET 135D11005/1 SEALING RING 135D11003/1 SEALING RING 5600980180 GASKET 5600980380 GASKET 806B01035/2 SPACER RING 806A23001/1 LOCKING PLATE 135D08007/1 SEALING RING 5600510580 GASKET 5600513780 GASKET 5600513580 GASKET 5600513680 GASKET 5600510080 GASKET 5600512280 GASKET 5600520080 GASKET 5600160280 GASKET 5600180080 GASKET 5030210580 GASKET 806A06020/1 SEALING RING 5601420084 SHIM 5611420680 GASKET 5600160180 GASKET 000N33730/1 STRAINER FILTER 999900010000 RIVET NUT 700292013000 TAB WASHER 700368035002 RUBBER SLEEVE 700368090002 SLEEVE RUBBER 135C04501/2 CONNECTING PIECE X58708300028 FUEL FILTER ELEMENT 000N33726/1 NOZZLE ELEMENT 135B09041/3 CONROD 135D17033/1 TAPPET 135C05716/1 WASHER 135B03062/2 WASHER 135B03020/2 TAB WASHER 135C10002/1 VALVE SPRING INNER 135B03090/1 OIL SEAL 135B14008/1 SCREW 5600160071 PLUG 135L35037/1 STANDPIPE 135D19004/3 BEARING BUSHING 135C10017/5 GUIDE SLEEVE 135C01013/1 COLLARED BUSHING 5610380850 CONROD BUSHING SIZE 0 5610381150 CONROD BUSHING SIZE 3 5610380950 CONROD BUSHING SIZE 1 135C01007/1 COLLARED BUSHING 135C01006/1 SLOTTED NUT 135C01010/1 SPACER BUSHING 135C10020/2 VALVE HEAD INLET 135C10143/3 VALVE HEAD 135B09742/5 CONROD BEARING 5600550070 THREADED RING 135D17708/5 HYD LASH ADJUSTER 5610105420 CYLINDER HEAD 5600170509 BURNER 5600100083 SCREW 5619810086 ROLLER SIZE 0
PART NUMBER 000N33714/1
ENGINE TYPE MTU 538 ENGINE
DESCRIPTION VALVE
DIMENSIONS N/A
UNIT WEIGHT 0.038 KG
HS CODE 84099900
NATO-VERS.-NR. 2910123627732
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 538 PARTS 000N33714/1 2/2-WAY SOLENOID VALVE

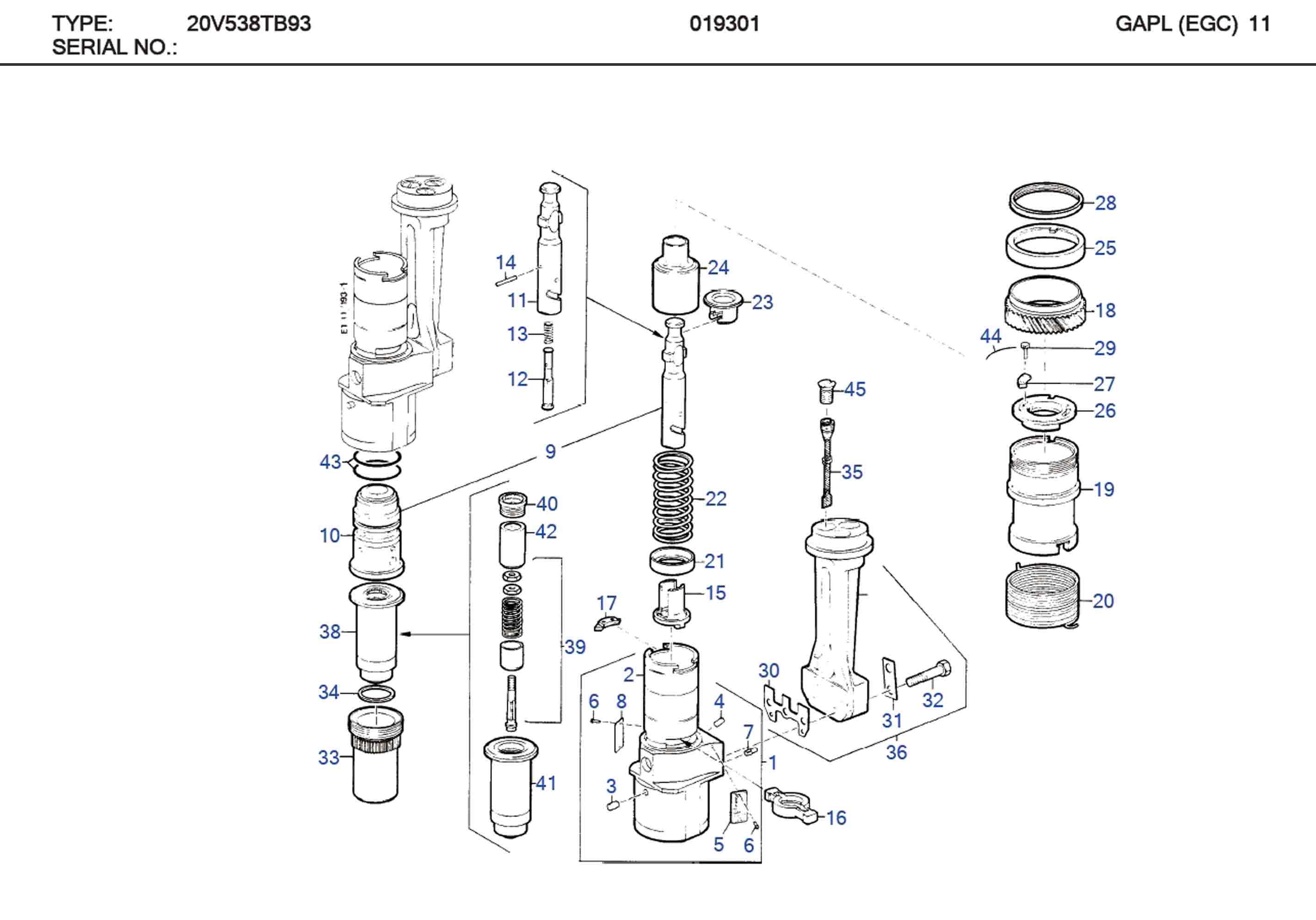

MTU 000N33714/1 Technical Engineering Exploded View

MTU 538 PARTS 000N33714/1 2/2-WAY SOLENOID VALVE

C/N Description Part-Number Qty
000 UNIT INJECTOR VIIIB 0080740602 001
01 EXHAUST HOUSING =KZO-U058 001
02 EXHAUST HOUSING =KZO-T185 001
03 DOWEL PIN 000007006121 001
04 DOWEL PIN =KZO-T186 001
05 NAMEPLATE =KZO-T123 BA 001
06 GROOVED PIN 001476001002 004
07 TOMMY BAR =849.046 002
08 INSTRUCTION PLATE =KZO-T092BA 001
09 PUMP ELEMENT 8590740010 001
10 PISTON GUIDE =KZO-T840 001
11 PUMP TIMING PISTON =KZO-T841 001
12 SUCTION VALVE CONE 000N33040/1 001
13 SUCTION VALVE SPRING 000N33045/1 001
14 NEEDLE ROLLER 005402202154 001
15 DRIVER 8590740150 001
16 CARDAN 8590740160 001
17 SLIDING BLOCK 8590740170 002
18 HELICAL GEAR 8590740020 001
19 CONTROL SLEEVE 8590740030 001
20 TORSION SPRING 000N33052/1 001
21 SPRING RETAINER 8590740040 001
22 TAPPET SPRING 8590740050 001
23 SPRING RETAINER 8590740060 001
24 ROLLER TAPPET 8590740070 001
25 CLAMPING RING 8590740080 001
26 ADJUSTING RING 8590740090 001
27 COVER PLATE 8590740100 001
28 LIFTING-EYE NUT 000N33065/1 001
29 SCREW 000N33124/1 001
30 CONNECT.TOWER GASKET 000N33084/1 001
31 TAB WASHER 000N33085/1 002
32 SCREW 8590740110 004
33 CABLE GLAND 8590740120 001
34 WASHER 000N33090/1 001
35 STRAINER FILTER 000N33730/1 001
36 CONNECTING TOWER 000N33728/1 001
38 NOZZLE ELEMENT 8590740140 001
39 2/2-WAY SOLENOID VALVE 000N33714/1 001
40 VALVE SEAT 8590740180 001
41 NOZZLE CAP 000N33105/1 001
42 STROKE LIMITER 000N33108/1 001
43 O-RING 700429032000 002
44 LOCKING WIRE =849.457 001
45 COUNTERSUNK-HEAD SCREW 000N33121/1 003

000N33714/1 SUPERSEDED PART AND EFFECTIVE DATE

000N33714/1 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 000N33714/1 000N33074/1 N/A
02 000N33714/1 000N33746/1 1994/10/01
03 000N33714/1 000N33073/1 1994/11/01
04 000N33714/1 000N33072/1 1994/12/01
05 000N33714/1 382732/1 1995/01/01
06 000N33714/1 000N33070/1 1995/02/01
07 000N33714/1 382731/1 1995/03/01
08 000N33714/1 000N33069/1 1995/04/01
09 000N33714/1 000N33714/1 1995/05/01

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
