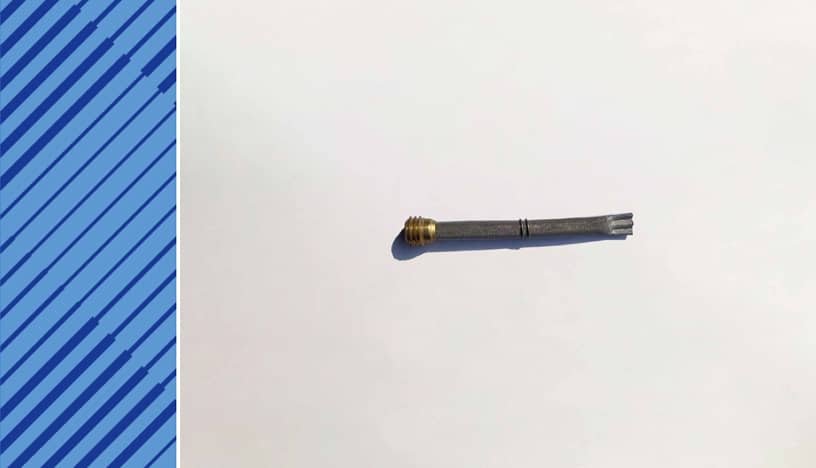

MTU 538 INJECTOR COMPONENT 000N33730/1 STRAINER FILTER

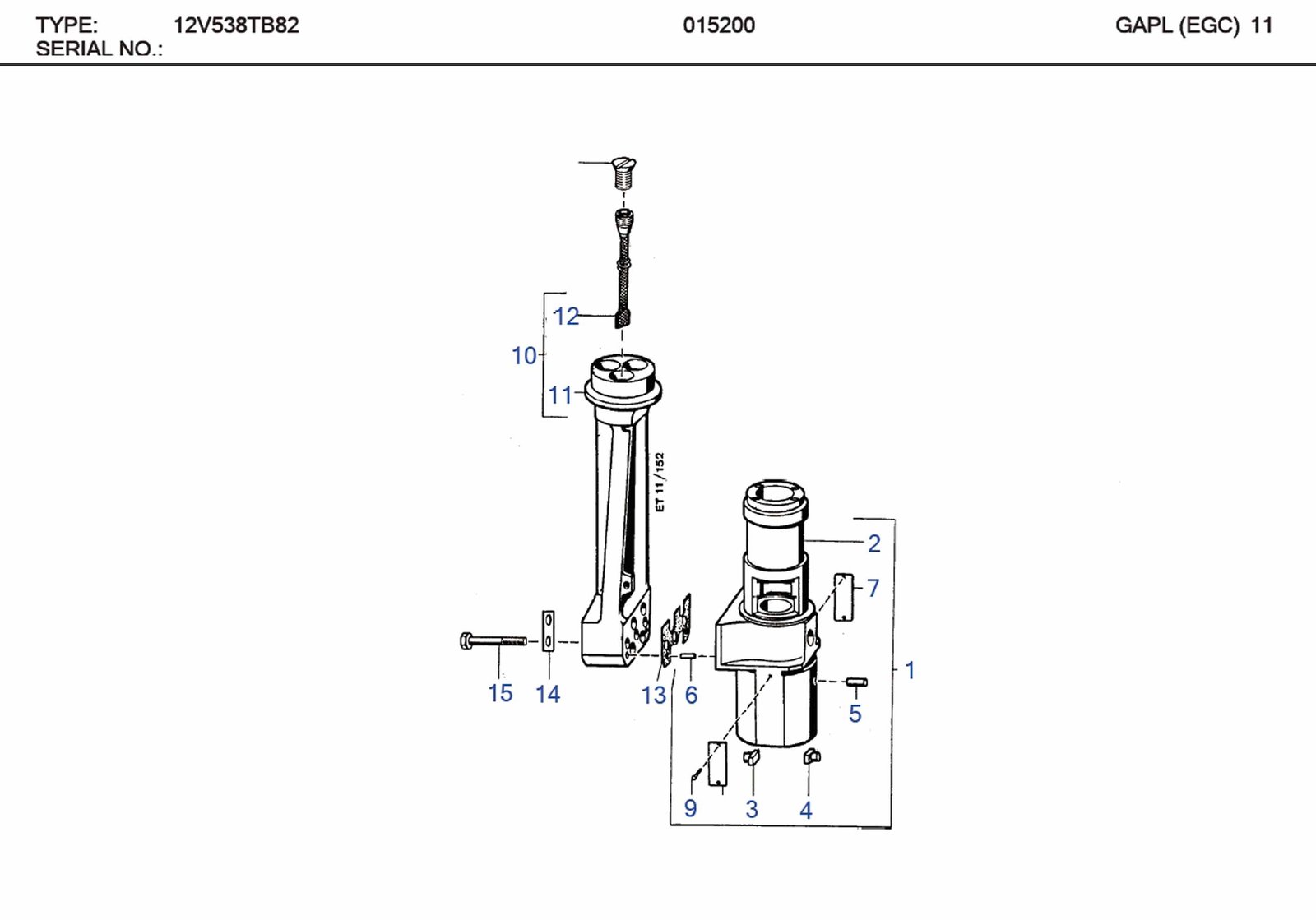

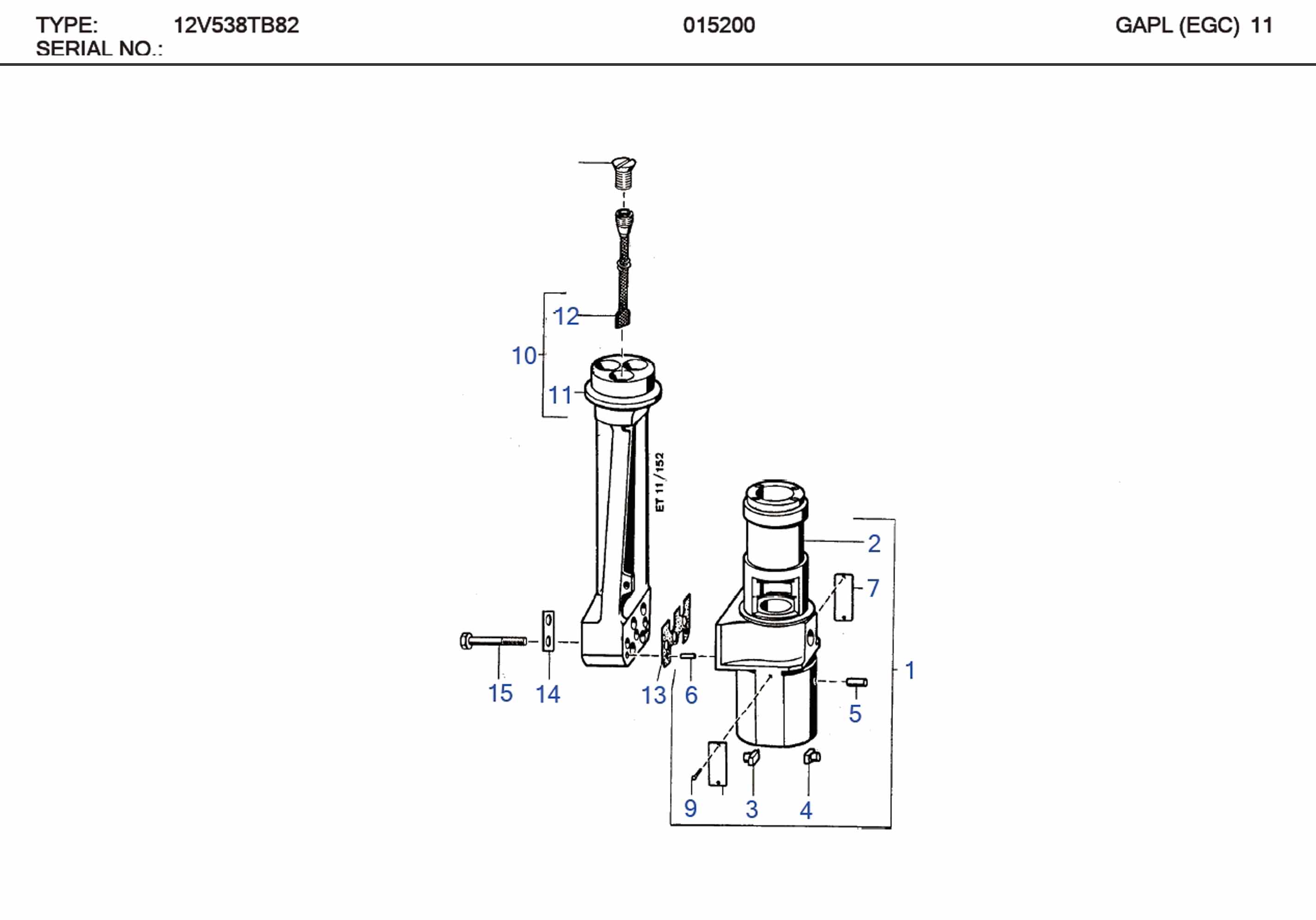

MTU 000N33730/1 Technical Engineering Exploded View MTU 538 INJECTOR COMPONENT 000N33730/1 STRAINER FILTER

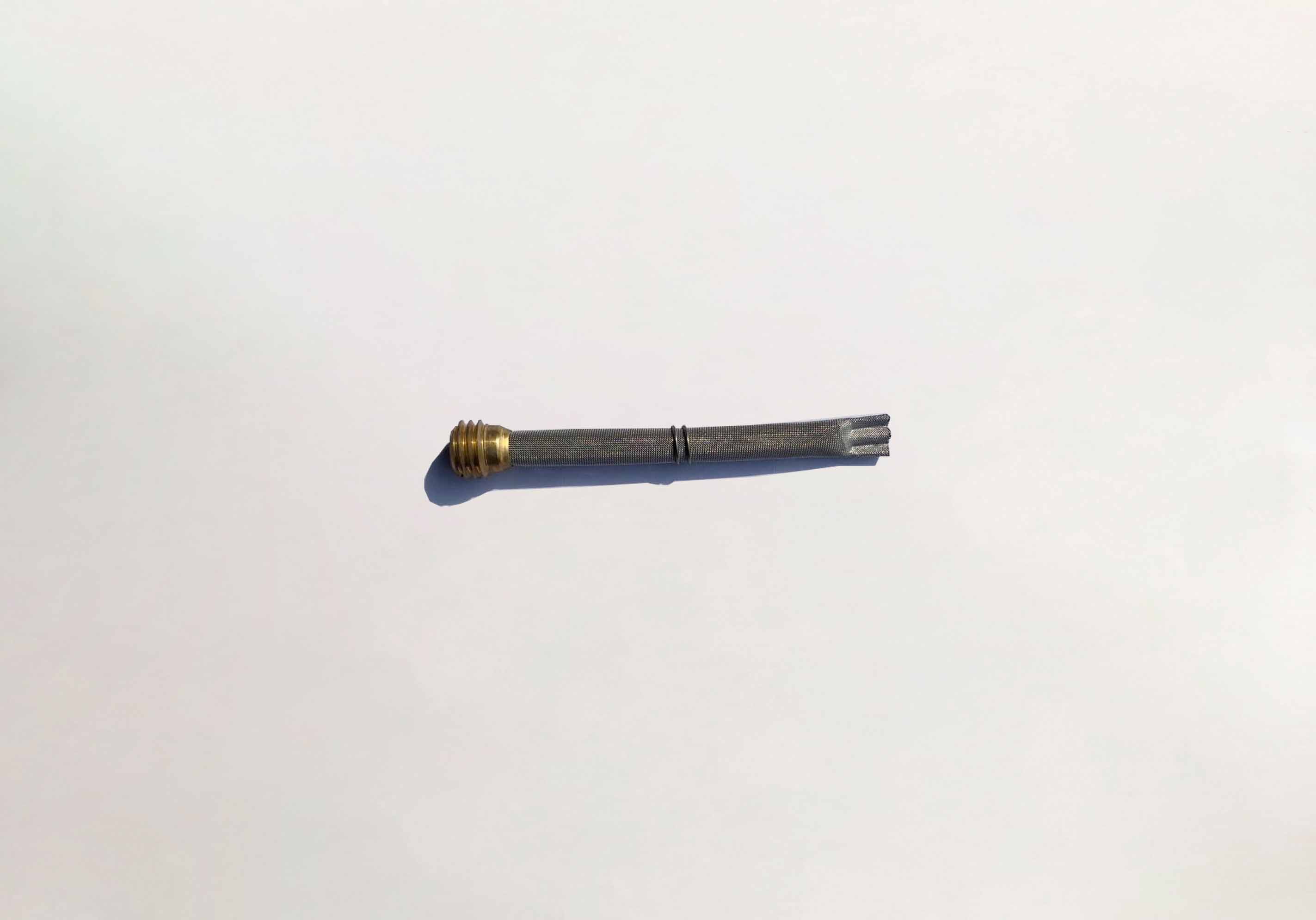

MTU 538 INJECTOR COMPONENT 000N33730/1 STRAINER FILTER

C/N Description Part-Number Qty
000 UNIT INJECTOR VIIB 0060748602 001
01 EXHAUST HOUSING 000N33704/1 001
02 EXHAUST HOUSING 000N33013/1 001
03 TOMMY BAR 000N33014/1 001
04 TOMMY BAR 000N33015/1 001
05 DOWEL PIN 000007006121 001
06 GROOVED PIN 001474004002 002
07 NAMEPLATE 000N33006/1 001
09 GROOVED PIN 001476001002 004
10 CONNECTING PIECE 000N33731/1 001
11 CONNECTING TOWER 000N33728/1 001
12 STRAINER FILTER 000N33730/1 001
13 CONNECT.TOWER GASKET 000N33084/1 001
14 TAB WASHER 000N33085/1 002
15 SCREW 000931008054 004

000N33730/1 SUPERSEDED PART AND EFFECTIVE DATE

000N33730/1 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 000N33730/1 000N33077/1 N/A
02 000N33730/1 000N33730/1 1989/04/01

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
