MTU 538 Parts | 700327015000 | GROMMET

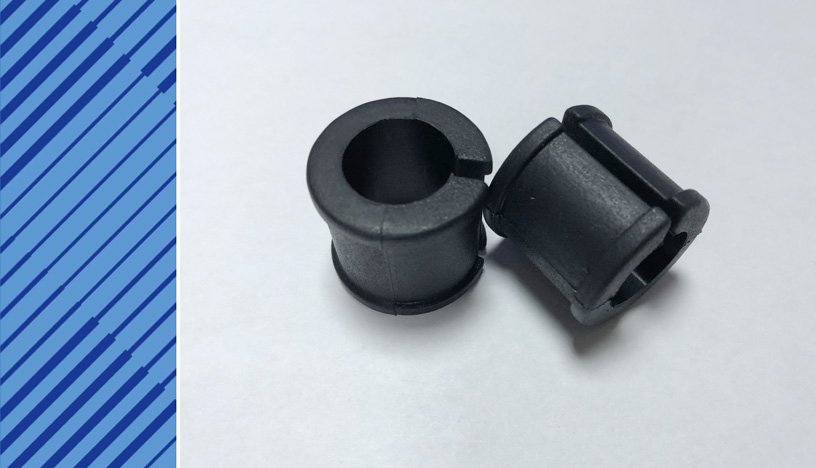

700327015000 GROMMET

Other
Other 514D19001/1 GASKET 5602030680 GASKET 135L45018/1 SLOTTED NUT 8352010073 TAB WASHER 5602030380 GASKET 5602011380 GASKET 5602011280 GASKET 5602011480 GASKET 5602010980 GASKET 135L35003/1 BUSHING 5602010880 GASKET 700217040001 SHAFT SEAL RING 5602011880 GASKET 000N13235/1 GASKET 700327012000 GROMMET 735038008106 RUBBER HOSE 135D11006/1 RUBBER SEAL 135D01012/1 RUBBER GROMMET 700327015000 GROMMET 000N33715/1 DELIVERY VALVE 000N33714/1 VALVE 5600740280 GASKET 135D11005/1 SEALING RING 135D11003/1 SEALING RING 5600980180 GASKET 5600980380 GASKET 806B01035/2 SPACER RING 806A23001/1 LOCKING PLATE 135D08007/1 SEALING RING 5600510580 GASKET 5600513780 GASKET 5600513580 GASKET 5600513680 GASKET 5600510080 GASKET 5600512280 GASKET 5600520080 GASKET 5600160280 GASKET 5600180080 GASKET 5030210580 GASKET 806A06020/1 SEALING RING 5601420084 SHIM 5611420680 GASKET 5600160180 GASKET 000N33730/1 STRAINER FILTER 999900010000 RIVET NUT 700292013000 TAB WASHER 700368035002 RUBBER SLEEVE 700368090002 SLEEVE RUBBER 135C04501/2 CONNECTING PIECE X58708300028 FUEL FILTER ELEMENT 000N33726/1 NOZZLE ELEMENT 135B09041/3 CONROD 135D17033/1 TAPPET 135C05716/1 WASHER 135B03062/2 WASHER 135B03020/2 TAB WASHER 135C10002/1 VALVE SPRING INNER 135B03090/1 OIL SEAL 135B14008/1 SCREW 5600160071 PLUG 135L35037/1 STANDPIPE 135D19004/3 BEARING BUSHING 135C10017/5 GUIDE SLEEVE 135C01013/1 COLLARED BUSHING 5610380850 CONROD BUSHING SIZE 0 5610381150 CONROD BUSHING SIZE 3 5610380950 CONROD BUSHING SIZE 1 135C01007/1 COLLARED BUSHING 135C01006/1 SLOTTED NUT 135C01010/1 SPACER BUSHING 135C10020/2 VALVE HEAD INLET 135C10143/3 VALVE HEAD 135B09742/5 CONROD BEARING 5600550070 THREADED RING 135D17708/5 HYD LASH ADJUSTER 5610105420 CYLINDER HEAD 5600170509 BURNER 5600100083 SCREW 5619810086 ROLLER SIZE 0
PART NUMBER 700327015000
ENGINE TYPE MTU 538 ENGINE
DESCRIPTION GROMMET
DIMENSIONS Φ15
UNIT WEIGHT 0.006 KG
HS CODE 40169997
NATO-VERS.-NR. 5325121426339
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 538 ENGINE SPARE PARTS 700327015000 GROMMET

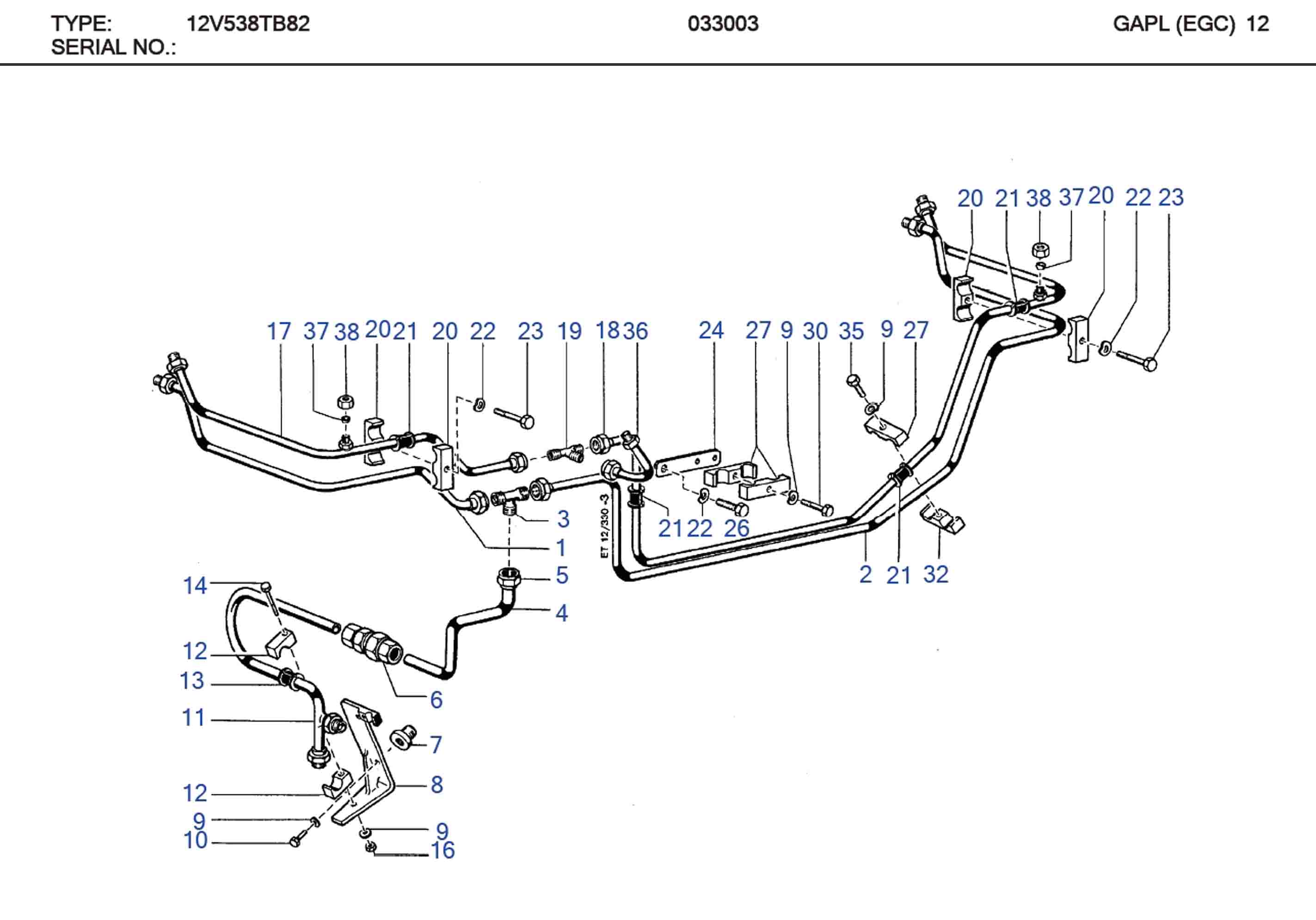

MTU 700327015000 Technical Engineering Exploded View

MTU 538 ENGINE SPARE PARTS 700327015000 GROMMET

C/N Description Part-Number Qty
01 FUEL RETURN LINE 136M11801/1 001
02 FUEL RETURN LINE 135M11802/1 001
03 FITTING TEE 007619020000 001
04 FUEL RETURN LINE 5610702038 001
05 RIVET NUT 915001020003 001
06 NON-RETURN VALVE 700430022108 001
07 THREADED BUSHING 700204008100 002
08 ALARM SWITCH 5610700040 001
09 SPRING WASHER 000137008203 005
10 SCREW 000933008108 002
11 FUEL RETURN LINE 5610702138 001
12 PIPE HALF-CLAMP 700325028100 002
13 GROMMET 700327022000 001
14 SCREW 000931008217 001
16 HEX NUT 000934008008 001
17 LEAK-OFF FUEL LINE 136M13731/1 001
18 LEAK-OFF FUEL LINE 136M13732/2 001
19 FITTING TEE 007619013000 001
20 PIPE HALF-CLAMP 135M19034/1 004
21 GROMMET 700327015000 008
22 SPRING WASHER 000137010202 003
23 SCREW 000931010232 002
24 ALARM SWITCH 135M20004/1 001
26 SCREW 000933010093 001
27 PIPE HALF-CLAMP 700325022104 003
30 SCREW 000931008058 001
32 PIPE HALF-CLAMP 700325022203 001
35 SCREW 000933008115 001
36 LEAK-OFF FUEL LINE 136M13733/1 001
37 SEALING CONE 915005004000 002
38 RIVET NUT 915001004005 002

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
