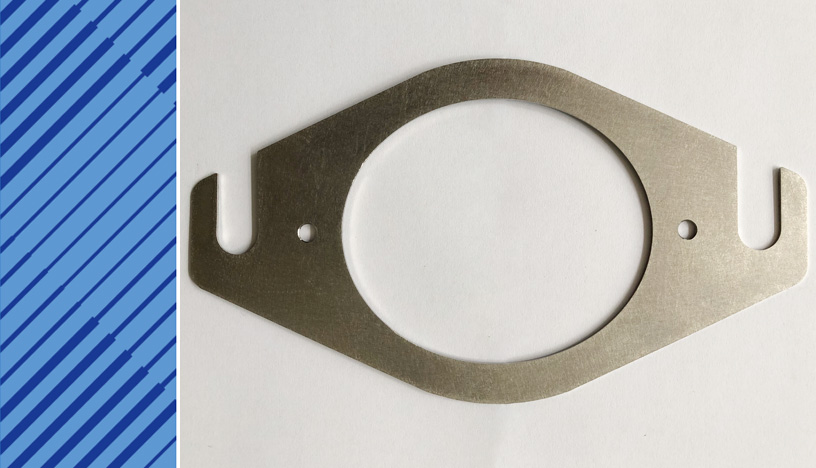

PART NUMBER 5601420084
ENGINE TYPE MTU 538 ENGINE
DESCRIPTION SHIM
DIMENSIONS 1,0 MM
UNIT WEIGHT 0.050 KG
HS CODE 73269098
NATO-VERS.-NR. 5365123995320
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 538 EXHAUST SYSTEM Parts 5601420084 SHIM

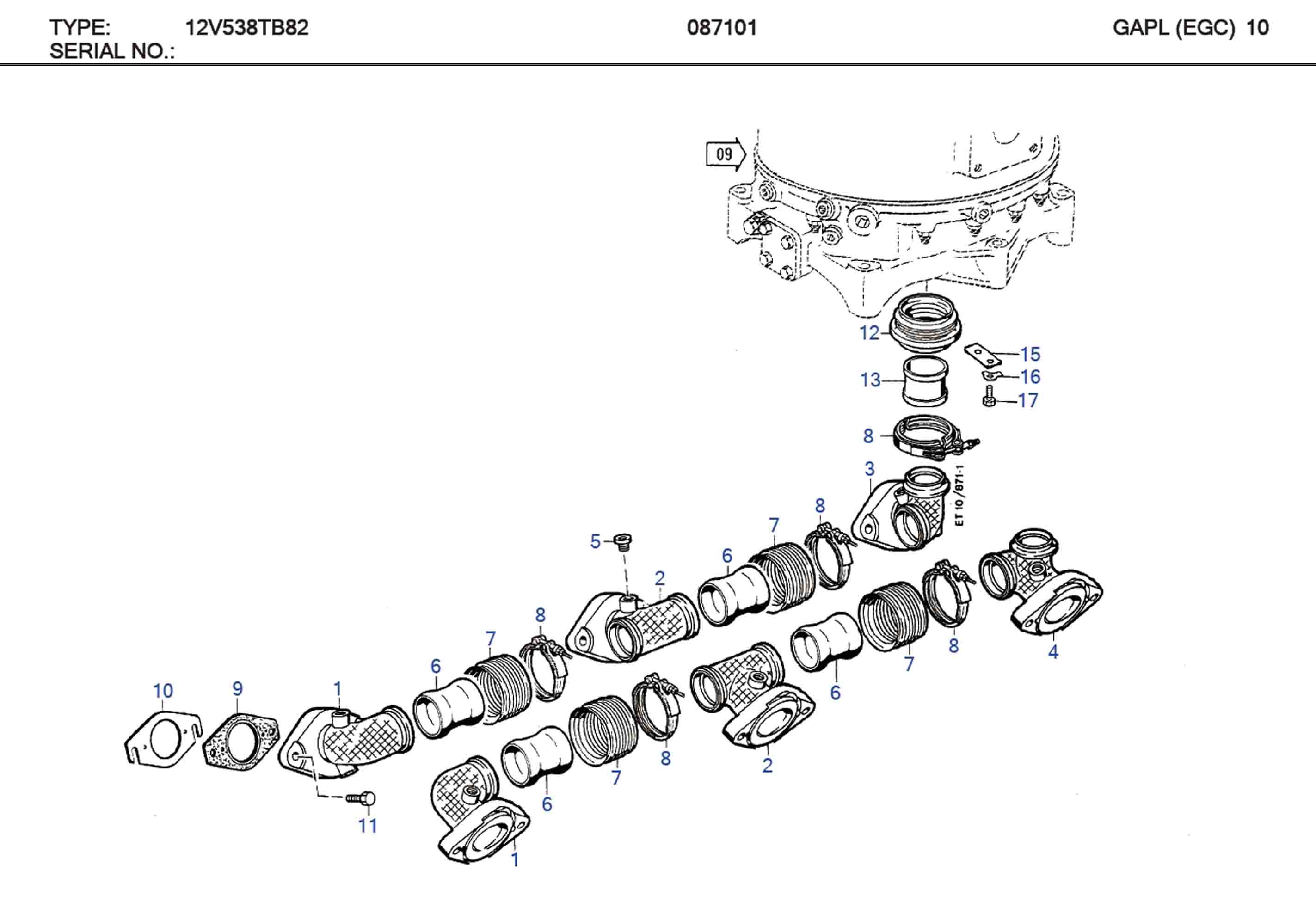

MTU 5601420084 Technical Engineering Exploded View

MTU 538 EXHAUST SYSTEM Parts 5601420084 SHIM

C/N Description Part-Number Qty
01 EXHAUST PIPE 5601401108 004
02 EXHAUST PIPE 5601401208 004
03 EXHAUST PIPE 5601401308 002
04 EXHAUST PIPE 5601401408 002
05 PLUG 000908018008 001
06 FLOATING PIPE JOINT 8331420037 008
07 GAITER 8331420159 008
08 V-BAND COUPLING 0019975190 012
09 GASKET 5611420680 012
10 SHIM 5601420084 001
10A SHIM 5601420284 001
11 SCREW 200933012005 024
12 EXHAUST PIPE BELLOWS 5601400282 004
13 CABLE CONDUIT 5601420037 004
15 TAB WASHER 822A02003/1 012
16 TAB WASHER 700292008400 004
17 SCREW 000933008214 004

5601420084 SUPERSEDED PART AND EFFECTIVE DATE

5601420084 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5601420084 135M01050/1 N/A
02 5601420084 135M01106/1 1987/12/01
03 5601420084 5601420084 1988/01/01

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
