MTU 538 Parts | 5600520080 | GASKET

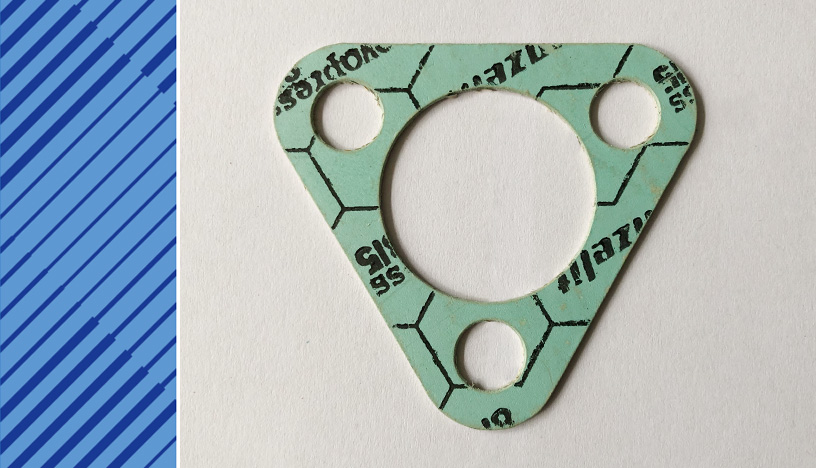

5600520080 GASKET

Other
Other 514D19001/1 GASKET 5602030680 GASKET 135L45018/1 SLOTTED NUT 8352010073 TAB WASHER 5602030380 GASKET 5602011380 GASKET 5602011280 GASKET 5602011480 GASKET 5602010980 GASKET 135L35003/1 BUSHING 5602010880 GASKET 700217040001 SHAFT SEAL RING 5602011880 GASKET 000N13235/1 GASKET 700327012000 GROMMET 735038008106 RUBBER HOSE 135D11006/1 RUBBER SEAL 135D01012/1 RUBBER GROMMET 700327015000 GROMMET 000N33715/1 DELIVERY VALVE 000N33714/1 VALVE 5600740280 GASKET 135D11005/1 SEALING RING 135D11003/1 SEALING RING 5600980180 GASKET 5600980380 GASKET 806B01035/2 SPACER RING 806A23001/1 LOCKING PLATE 135D08007/1 SEALING RING 5600510580 GASKET 5600513780 GASKET 5600513580 GASKET 5600513680 GASKET 5600510080 GASKET 5600512280 GASKET 5600520080 GASKET 5600160280 GASKET 5600180080 GASKET 5030210580 GASKET 806A06020/1 SEALING RING 5601420084 SHIM 5611420680 GASKET 5600160180 GASKET 000N33730/1 STRAINER FILTER 999900010000 RIVET NUT 700292013000 TAB WASHER 700368035002 RUBBER SLEEVE 700368090002 SLEEVE RUBBER 135C04501/2 CONNECTING PIECE X58708300028 FUEL FILTER ELEMENT 000N33726/1 NOZZLE ELEMENT 135B09041/3 CONROD 135D17033/1 TAPPET 135C05716/1 WASHER 135B03062/2 WASHER 135B03020/2 TAB WASHER 135C10002/1 VALVE SPRING INNER 135B03090/1 OIL SEAL 135B14008/1 SCREW 5600160071 PLUG 135L35037/1 STANDPIPE 135D19004/3 BEARING BUSHING 135C10017/5 GUIDE SLEEVE 135C01013/1 COLLARED BUSHING 5610380850 CONROD BUSHING SIZE 0 5610381150 CONROD BUSHING SIZE 3 5610380950 CONROD BUSHING SIZE 1 135C01007/1 COLLARED BUSHING 135C01006/1 SLOTTED NUT 135C01010/1 SPACER BUSHING 135C10020/2 VALVE HEAD INLET 135C10143/3 VALVE HEAD 135B09742/5 CONROD BEARING 5600550070 THREADED RING 135D17708/5 HYD LASH ADJUSTER 5610105420 CYLINDER HEAD 5600170509 BURNER 5600100083 SCREW 5619810086 ROLLER SIZE 0
PART NUMBER 5600520080
ENGINE TYPE MTU 538 ENGINE
DESCRIPTION GASKET
DIMENSIONS N/A
UNIT WEIGHT 0.002 KG
HS CODE 68069000
NATO-VERS.-NR. 5330123248915
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 538 ENGINE PARTS 5600520080 GASKET

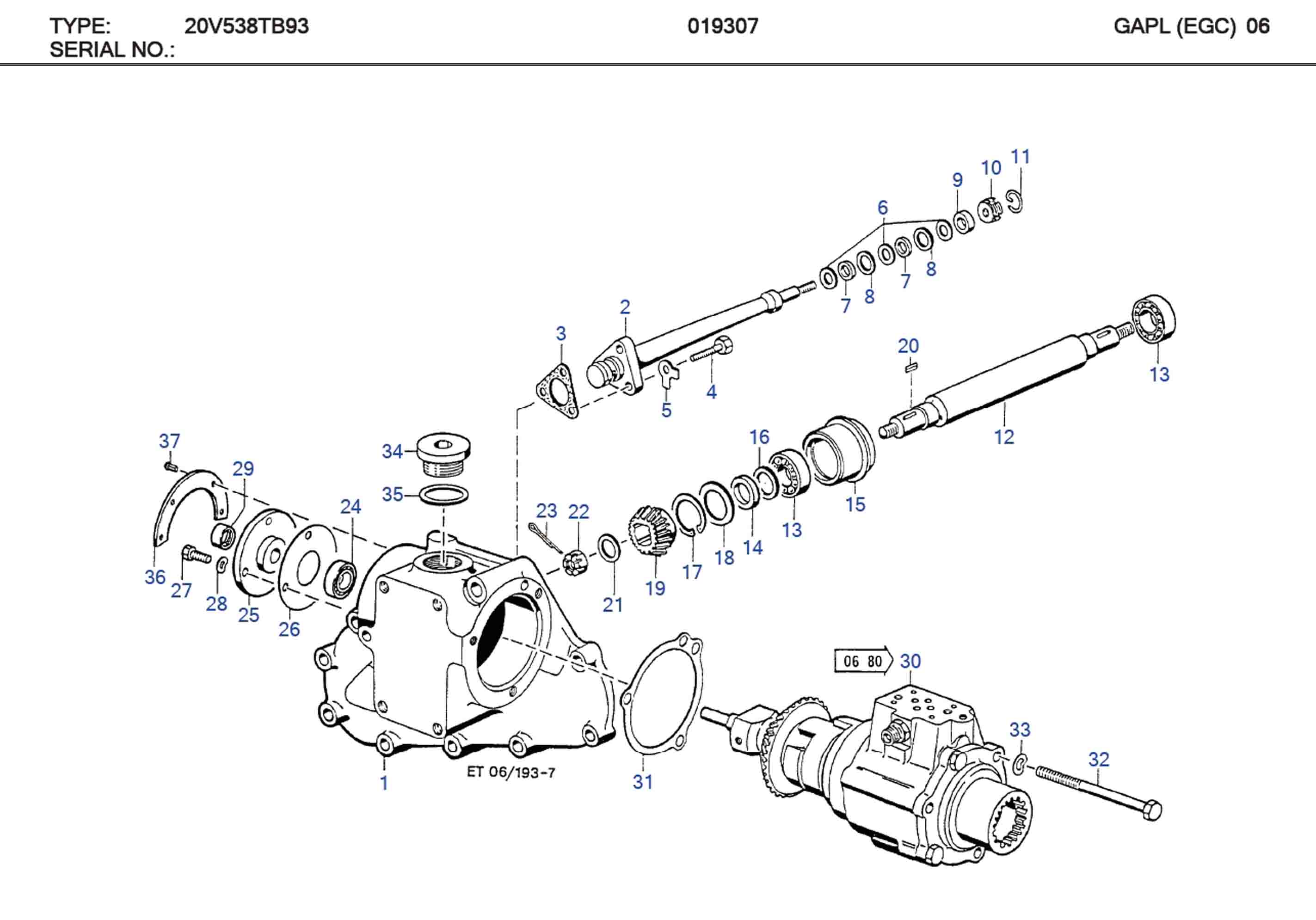

MTU 5600520080 Technical Engineering Exploded View

MTU 538 ENGINE PARTS 5600520080 GASKET

C/N Description Part-Number Qty
000 ANGLE GEARING 5610601181 001
01 END COVER 5610600155 001
02 SPACER FLANGE 135D06742/1 001
03 GASKET 5600520080 001
04 SCREW 304017008081 003
05 TAB WASHER 700292008400 003
06 COVER RING 135D06004/1 003
07 SPACER RING 135D06005/1 002
08 COVER RING 135D06006/1 002
09 SPACER BUSHING 135D06007/1 001
10 SLOTTED NUT 070851010000 001
11 COVER RING 070951015000 001
12 OUTPUT SHAFT 5610632210 001
13 GROOVE BALL BEARING 200625906008 002
14 SPACER RING 135D21003/1 001
15 DRIVE-END BEARING 135D21008/2 001
16 WASHER 717115017100 001
16A WASHER 717115017101 001
16B WASHER 717115017102 001
16C WASHER 717115017103 001
16D WASHER 717115017104 001
17 SNAP RING 000472035000 001
18 WASHER 717115025100 001
18A WASHER 717115025101 001
18B WASHER 717115025102 001
18C WASHER 717115025103 001
18D WASHER 717115025104 001
19 BEVEL GEAR 135D21007/1 001
20 KEY 006885005013 001
21 COVER DISC 000125010524 001
22 CASTLE NUT 000937010003 001
23 SPLIT PIN 000094002077 001
24 GROOVE BALL BEARING 200625906003 001
25 END COVER 5610630711 001
26 GASKET 5610630380 001
27 SCREW 000933006175 003
28 SPRING WASHER 000137006205 003
29 SHAFT SEAL 700217008001 001
30 CYLINDER CUTOUT 5610601081 001
31 SPACER PLATE 5610630352 001
32 SCREW 000931008147 003
33 SPRING WASHER 000137008203 003
34 PLUG 000908052003 001
35 SEALING RING 007603052101 001
36 FRONT SCALE 135D23001/1 001
37 GROOVED PIN 001476003007 004

5600520080 SUPERSEDED PART AND EFFECTIVE DATE

5600520080 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5600520080 135D06008/1 N/A
02 5600520080 5600520080 1990/04/01

MTU 538 Diesel Engine Models & Specifications

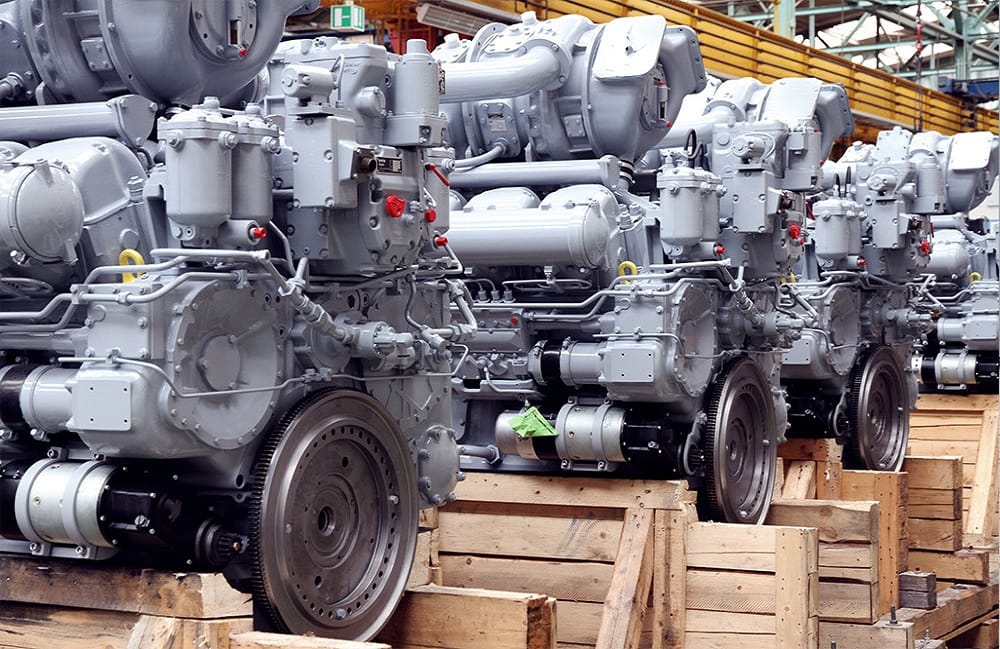

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
