PART NUMBER 135C04501/2
ENGINE TYPE MTU 538 ENGINE
DESCRIPTION CONNECTING PIECE
DIMENSIONS N/A
UNIT WEIGHT 0.404 KG
HS CODE 73072210
NATO-VERS.-NR. 2815121256643
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

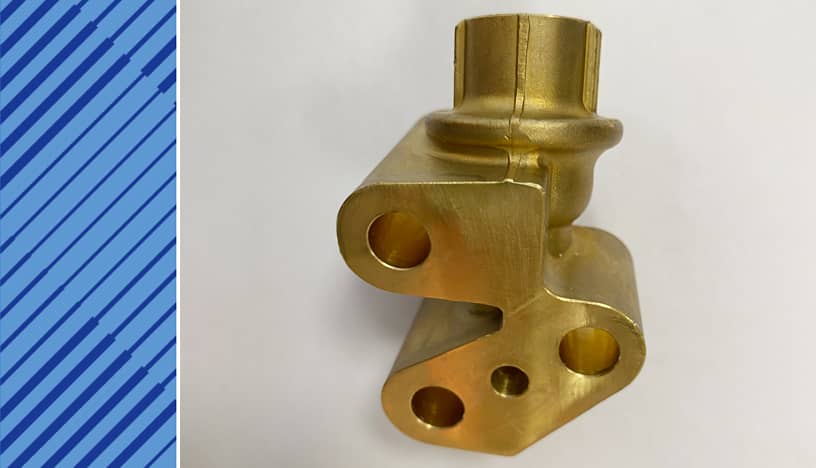

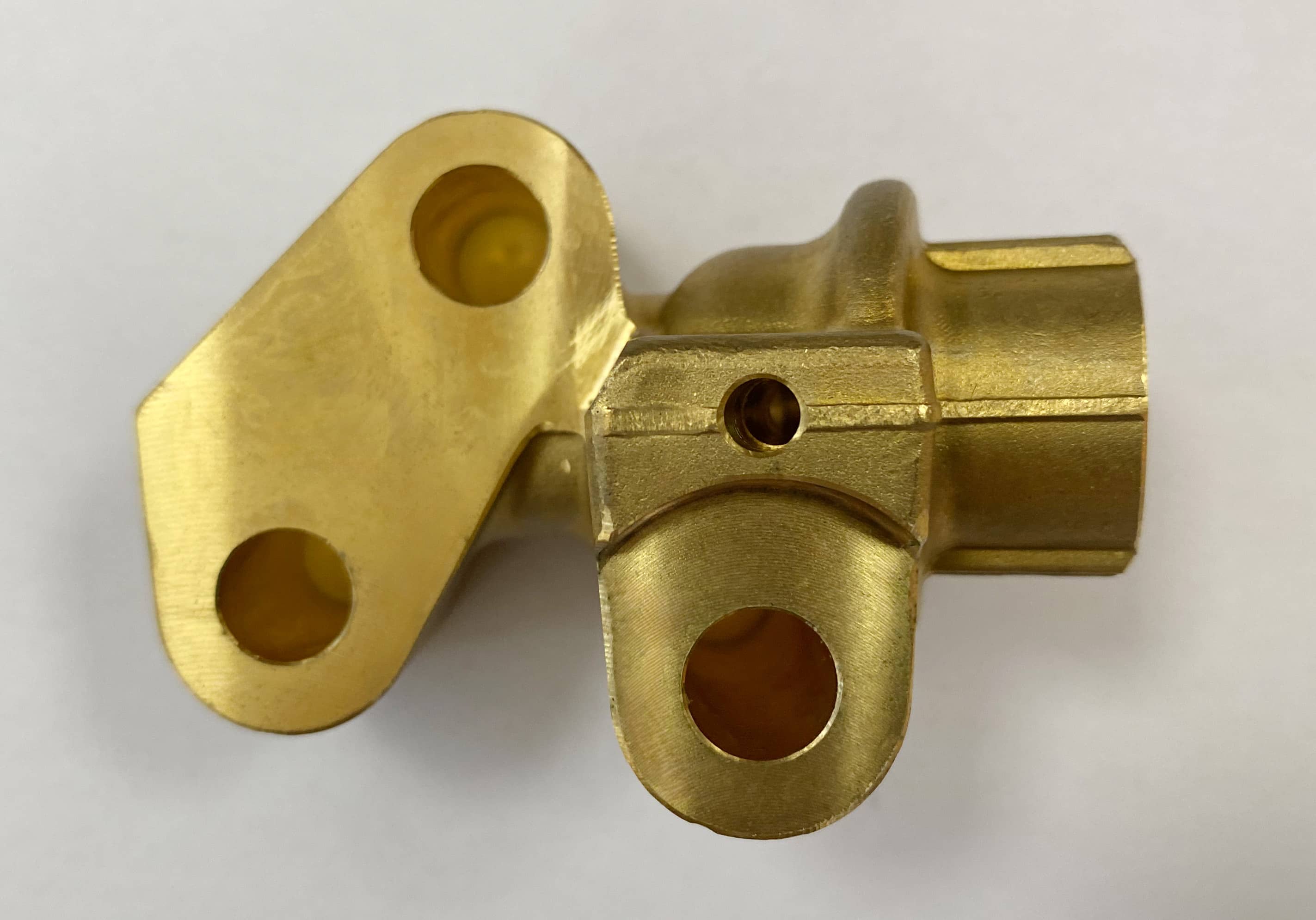

MTU 135C04501/2 CYLINDER HAED CONNECTING PIECE

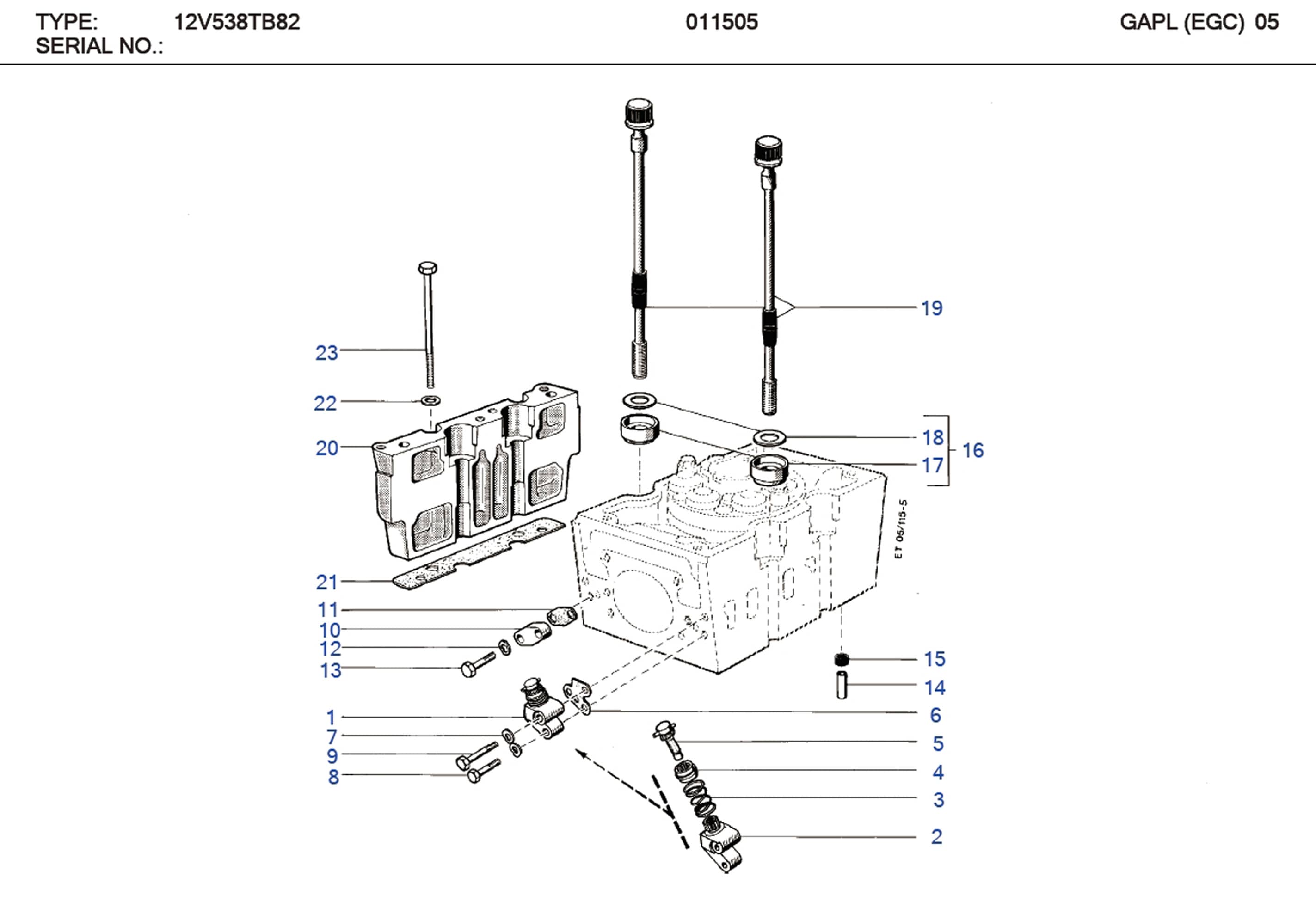

MTU 135C04501/2 Technical Engineering Exploded View MTU 135C04501/2 CYLINDER HAED CONNECTING PIECE

MTU 135C04501/2 CYLINDER HAED CONNECTING PIECE

C/N Description Part-Number Qty
01 DECOMPRESSION VALVE 135C04701/1 012
02 CONNECTING PIECE 135C04501/2 012
03 LEAF SPRING 135C04004/1 012
04 THROW-OUT SLEEVE 135C04006/1 012
05 PLUG 135C04702/3 012
06 GASKET 5600160180 012
07 SPRING WASHER 000137008203 036
08 SCREW 000931008058 024
09 SCREW 000931008227 012
10 BLIND FLANGE 135C06501/1 006
11 GASKET 5600160280 006
12 SPRING WASHER 000137010202 012
13 SCREW 000931010231 012
14 SPACER SLEEVE 135A45008/2 072
15 SEALING RING 5610110059 072
16 WASHER 135C05716/1 076
17 COVER RING 135C05030/1 076
18 COVER DISC 135C05012/1 076
19 DRAIN PLUG 5600100083 076
20 END MEMBER 136C17711/2 002
21 GASKET 5600110080 001
21A GASKET 5600110180 001
22 COVER DISC 000125010524 004
23 SCREW 000931010278 004

135C04501/2 SUPERSEDED PART AND EFFECTIVE DATE

135C04501/2 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 135C04501/2 197C04701/1 N/A
02 135C04501/2 135C04701/1 1996/10/01
03 135C04501/2 135C04501/1 1996/10/11
04 135C04501/2 135C04501/2 1996/11/01

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
