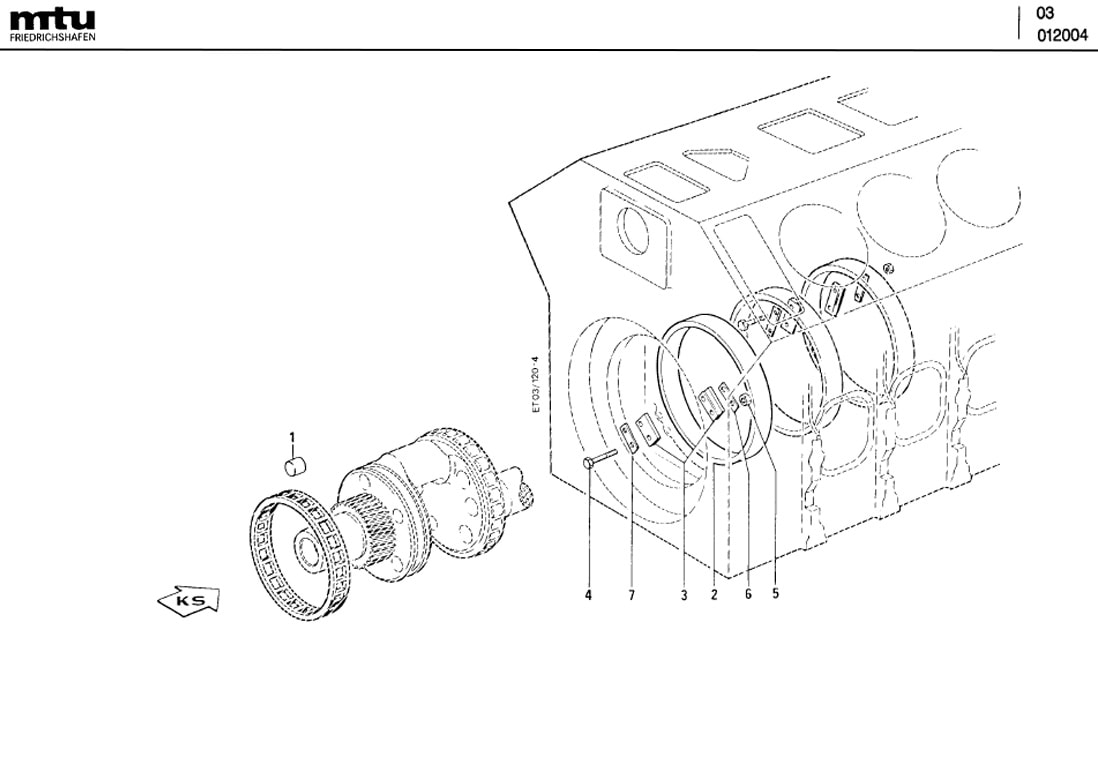

MTU 5619810086 Technical Engineering Exploded View

MTU 5619810086 Technical Engineering Exploded View

MTU 5619810086 Technical Engineering Exploded View

C/N Description Part-Number Qty
01 ROLLER SIZE 0 5619810086 189
01A ROLLER SIZE 0 5619810186 189
01B ROLLER SIZE 0 5619810286 189
01C ROLLER SIZE 0 5619810386 189
01D ROLLER SIZE 0 5619810486 189
01E ROLLER SIZE 0 5619810586 189
01F ROLLER SIZE 0 5619810686 189
01G ROLLER SIZE 0 5619810786 189
01H ROLLER SIZE 0 5619810886 189
01I ROLLER SIZE 0 5619810986 189
01J ROLLER SIZE 0 5619811086 189
01K ROLLER SIZE 0 5619811186 189
01L ROLLER SIZE 0 5619811286 189
01M ROLLER SIZE 0 5619811386 189
02 TRACK RING 136B06003/1 009
02A TRACK RING SIZE 1 136B06004/1 000
02B TRACK RING SIZE 2 136B99003/1 000
02C TRACK RING SIZE 3 136B99004/1 000
03 SEGMENT 135A48015/1 072
04 HEX SCREW 000931006087 072
05 NUT HEX 000934006006 072
06 TAB WASHER 135A48057/1 072

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
