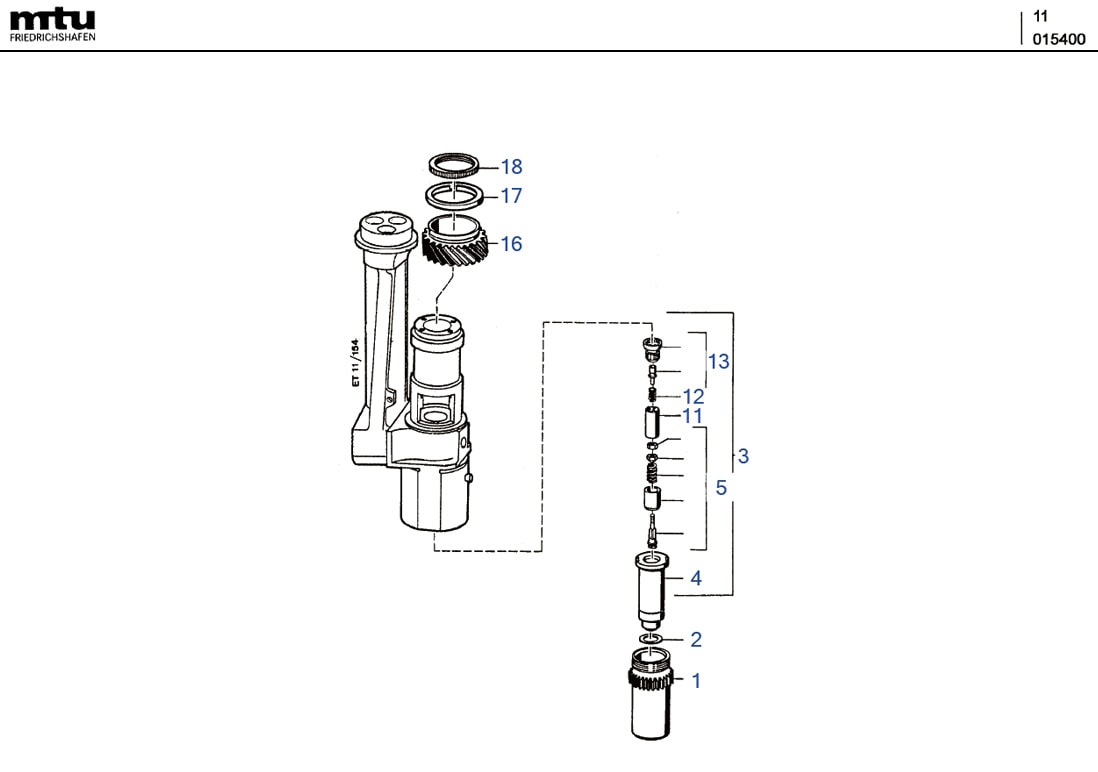

MTU 000N33726/1 Technical Engineering Exploded View

MTU 000N33726/1 Technical Engineering Exploded View

MTU 000N33726/1 Technical Engineering Exploded View

C/N Description Part-Number Qty
01 CABLE GLAND 000N33089/1 001
02 DISTANCE RING 000N33090/1 001
03 NOZZLE ELEMENT 000N33726/1 001
04 NOZZLE BODY 000N33105/1 001
05 2/2-WAY SOLENOID VALVE 000N33714/1 001
11 STROKE LIMITER 000N33108/1 001
12 PRESSURE VALVE SPRING 000N33109/1 001
13 DELIVERY VALVE 000N33715/1 001
16 WORM WHEEL 000N33048/1 001
17 CLAMPING RING 000N33064/1 001
18 ANNULAR NUT 000N33065/1 001

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
