PART NUMBER 135L35037/1
ENGINE TYPE MTU 538 ENGINE
DESCRIPTION STANDPIPE
DIMENSIONS N/A
UNIT WEIGHT 0.035 KG
HS CODE 73182900
NATO-VERS.-NR. 3040121629116
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

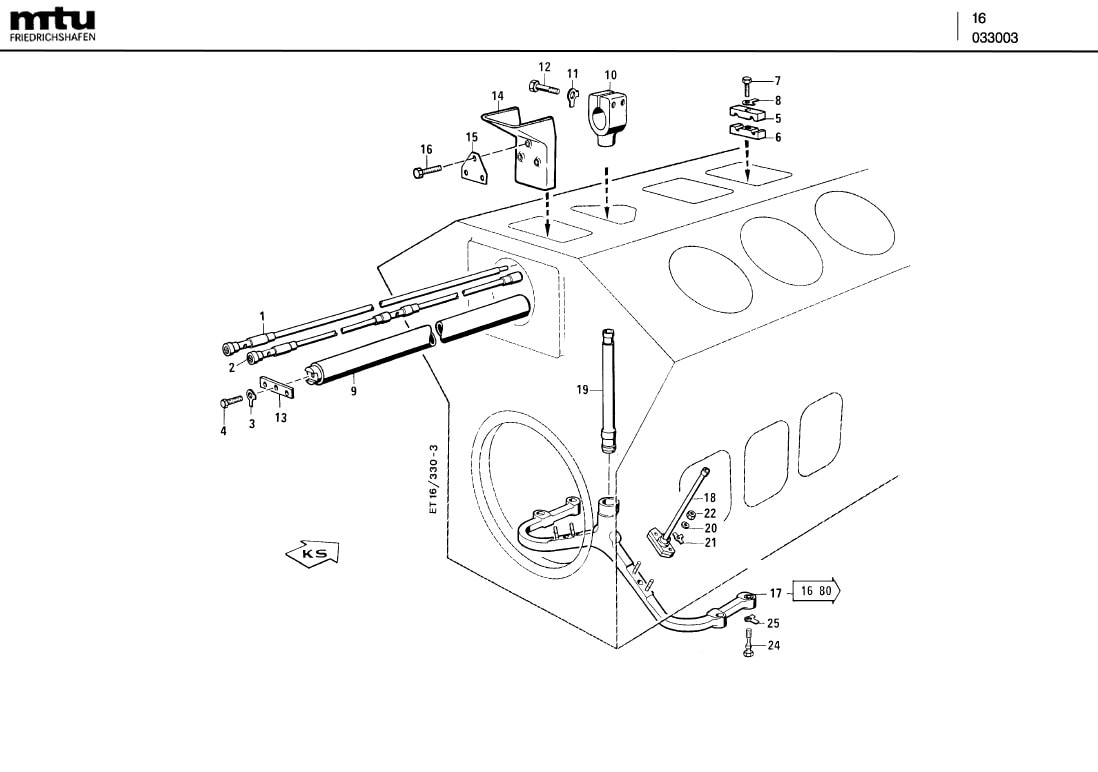

MTU 135L35037/1 Technical Engineering Exploded View

MTU 135L35037/1 Technical Engineering Exploded View

MTU 135L35037/1 Technical Engineering Exploded View

C/N Description Part-Number Qty
01 OIL LINE 5611802627 001
02 OIL PIPE 136A48714/2 001
03 WASHER TAB LOCKING 8 .4 ST52-3 03 700292008400 001
04 HEX SCREW 304017008077 001
05 CLAMP HALF TUBE 2/1 D9-15 700325015104 003
06 CLAMP HALF TUBE 2/1 G8-15 700325015202 003
07 WASHER TAB LOCKING 8 .4 ST52-3 03 700292008400 003
08 HEX SCREW 304017008081 003
09 OIL PIPE 136A48709/1 001
10 CLAMP 135A48501/1 008
11 TAB WASHER 700292010500 016
12 HEX SCREW 000933010095 016
13 STRIP 135A48003/1 001
14 OIL DEFLECTOR 5620100161 001
15 TAB WASHER 5629940001 001
16 HEX SCREW 304017008085 003
17 STANDPIPE 135A16711/2 008
18 STANDPIPE 135A16702/2 016
19 CONNECTING PIPE 135A16712/1 008
20 WASHER 133A16002/1 032
21 TAB WASHER 700043003204 032
22 NUT HEX 000934006006 032
23 STRESS BOLT 700209010200 032
24 TAB WASHER 700292010500 032

135L35037/1 SUPERSEDED PART AND EFFECTIVE DATE

135L35037/1 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 135L35037/1 135L35010/1 N/A
02 135L35037/1 135L35037/1 1998/02/01

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
