MTU 538 Parts | 5600980180 | GASKET

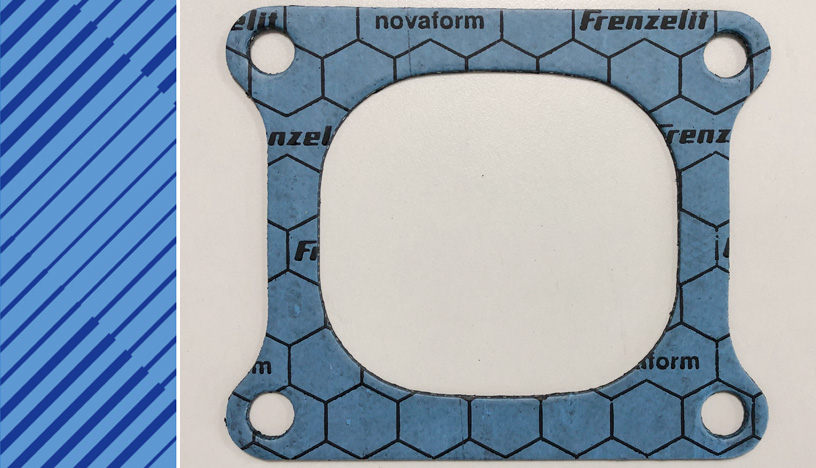

5600980180 GASKET

Other
Other 514D19001/1 GASKET 5602030680 GASKET 135L45018/1 SLOTTED NUT 8352010073 TAB WASHER 5602030380 GASKET 5602011380 GASKET 5602011280 GASKET 5602011480 GASKET 5602010980 GASKET 135L35003/1 BUSHING 5602010880 GASKET 700217040001 SHAFT SEAL RING 5602011880 GASKET 000N13235/1 GASKET 700327012000 GROMMET 735038008106 RUBBER HOSE 135D11006/1 RUBBER SEAL 135D01012/1 RUBBER GROMMET 700327015000 GROMMET 000N33715/1 DELIVERY VALVE 000N33714/1 VALVE 5600740280 GASKET 135D11005/1 SEALING RING 135D11003/1 SEALING RING 5600980180 GASKET 5600980380 GASKET 806B01035/2 SPACER RING 806A23001/1 LOCKING PLATE 135D08007/1 SEALING RING 5600510580 GASKET 5600513780 GASKET 5600513580 GASKET 5600513680 GASKET 5600510080 GASKET 5600512280 GASKET 5600520080 GASKET 5600160280 GASKET 5600180080 GASKET 5030210580 GASKET 806A06020/1 SEALING RING 5601420084 SHIM 5611420680 GASKET 5600160180 GASKET 000N33730/1 STRAINER FILTER 999900010000 RIVET NUT 700292013000 TAB WASHER 700368035002 RUBBER SLEEVE 700368090002 SLEEVE RUBBER 135C04501/2 CONNECTING PIECE X58708300028 FUEL FILTER ELEMENT 000N33726/1 NOZZLE ELEMENT 135B09041/3 CONROD 135D17033/1 TAPPET 135C05716/1 WASHER 135B03062/2 WASHER 135B03020/2 TAB WASHER 135C10002/1 VALVE SPRING INNER 135B03090/1 OIL SEAL 135B14008/1 SCREW 5600160071 PLUG 135L35037/1 STANDPIPE 135D19004/3 BEARING BUSHING 135C10017/5 GUIDE SLEEVE 135C01013/1 COLLARED BUSHING 5610380850 CONROD BUSHING SIZE 0 5610381150 CONROD BUSHING SIZE 3 5610380950 CONROD BUSHING SIZE 1 135C01007/1 COLLARED BUSHING 135C01006/1 SLOTTED NUT 135C01010/1 SPACER BUSHING 135C10020/2 VALVE HEAD INLET 135C10143/3 VALVE HEAD 135B09742/5 CONROD BEARING 5600550070 THREADED RING 135D17708/5 HYD LASH ADJUSTER 5610105420 CYLINDER HEAD 5600170509 BURNER 5600100083 SCREW 5619810086 ROLLER SIZE 0
PART NUMBER 5600980180
ENGINE TYPE MTU 538 ENGINE
DESCRIPTION GASKET
DIMENSIONS N/A
UNIT WEIGHT 0.017 KG
HS CODE 68069000
NATO-VERS.-NR. 5330123249207
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 538 ENGINE SPARE PARTS 5600980180 GASKET

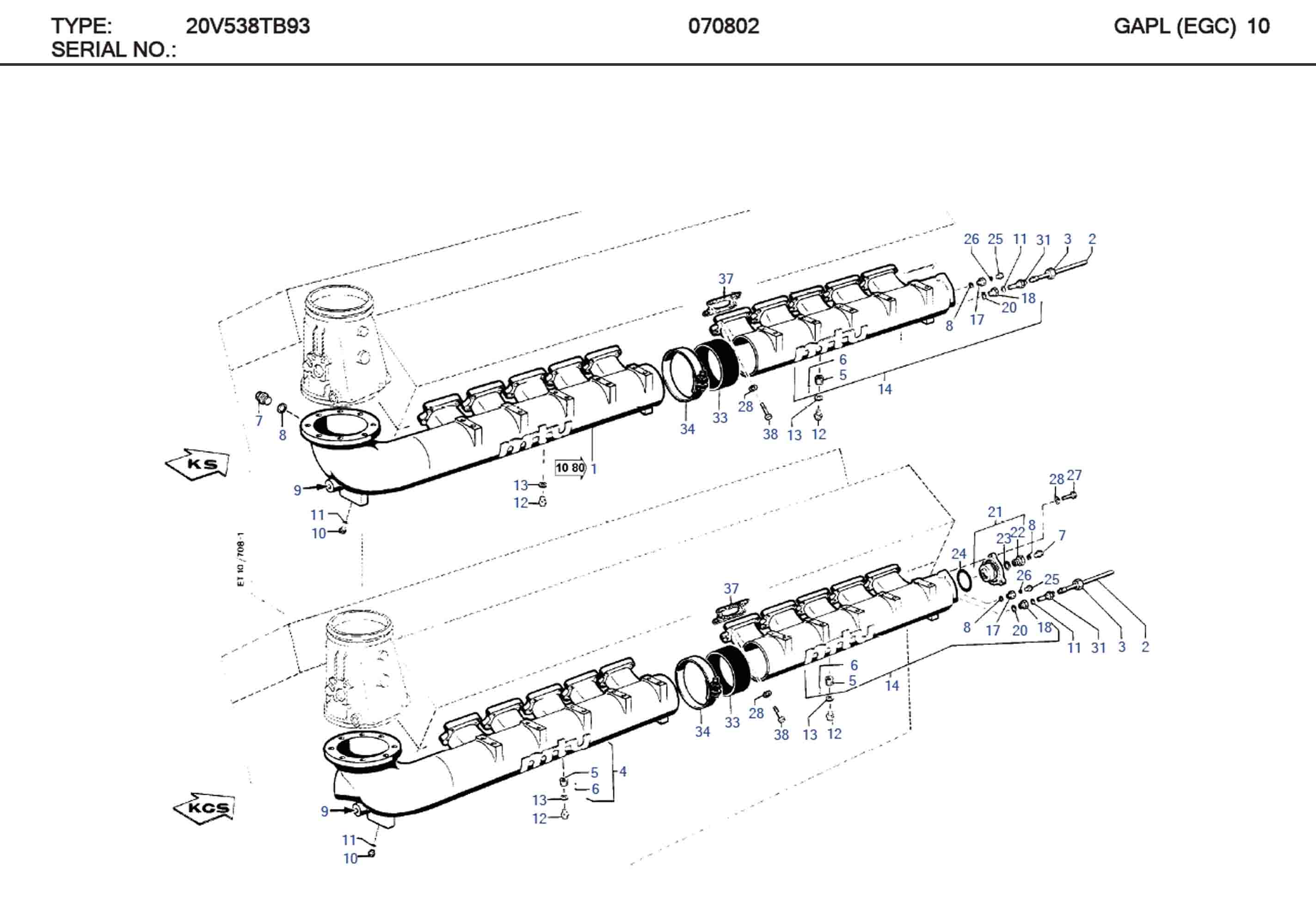

MTU 5600980180 Technical Engineering Exploded View

MTU 538 ENGINE SPARE PARTS 5600980180 GASKET

C/N Description Part-Number Qty
01 CHARGE-AIR PIPE 5620900037 001
02 TRANSVERSE EXHAUST PIPE 535D14766/1 002
03 RIVET NUT 915001010001 002
04 CHARGE-AIR PIPE 5620900637 001
05 THREADED BUSHING 135M37036/1 002
06 DOWEL PIN 000007002108 002
07 PLUG 000910022003 002
08 SEALING RING 007603022102 003
09 THREAD INSERT 900195018201 002
10 PLUG 000910016001 002
11 SEALING RING 007603016105 004
12 PLUG 000910010002 004
13 SEALING RING 007603010110 004
14 CHARGE-AIR PIPE 5620900337 002
17 THREADED BUSHING 700354014003 001
18 THREADED BUSHING 700354016003 001
20 SEALING RING 007603024106 001
21 END COVER 5620900043 001
22 THREADED BUSHING 700354022003 001
23 SEALING RING 007603030101 001
24 O-RING 700429095003 001
25 PLUG 000910014004 002
26 SEALING RING 007603014102 002
27 SCREW 000933010035 003
28 COVER DISC 000125010524 075
31 SCREW-FITTING UNION 135M37030/1 002
33 RUBBER SLEEVE 700336180002 002
34 CLAMP 900288192000 006
37 GASKET 5600980180 020
38 SCREW 000933010094 071

5600980180 SUPERSEDED PART AND EFFECTIVE DATE

5600980180 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5600980180 135M37003/1 N/A
02 5600980180 5600980180 1990/04/01

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
