135C10143/3 VALVE HEAD

Other
Other 514D19001/1 GASKET 5602030680 GASKET 135L45018/1 SLOTTED NUT 8352010073 TAB WASHER 5602030380 GASKET 5602011380 GASKET 5602011280 GASKET 5602011480 GASKET 5602010980 GASKET 135L35003/1 BUSHING 5602010880 GASKET 700217040001 SHAFT SEAL RING 5602011880 GASKET 000N13235/1 GASKET 700327012000 GROMMET 735038008106 RUBBER HOSE 135D11006/1 RUBBER SEAL 135D01012/1 RUBBER GROMMET 700327015000 GROMMET 000N33715/1 DELIVERY VALVE 000N33714/1 VALVE 5600740280 GASKET 135D11005/1 SEALING RING 135D11003/1 SEALING RING 5600980180 GASKET 5600980380 GASKET 806B01035/2 SPACER RING 806A23001/1 LOCKING PLATE 135D08007/1 SEALING RING 5600510580 GASKET 5600513780 GASKET 5600513580 GASKET 5600513680 GASKET 5600510080 GASKET 5600512280 GASKET 5600520080 GASKET 5600160280 GASKET 5600180080 GASKET 5030210580 GASKET 806A06020/1 SEALING RING 5601420084 SHIM 5611420680 GASKET 5600160180 GASKET 000N33730/1 STRAINER FILTER 999900010000 RIVET NUT 700292013000 TAB WASHER 700368035002 RUBBER SLEEVE 700368090002 SLEEVE RUBBER 135C04501/2 CONNECTING PIECE X58708300028 FUEL FILTER ELEMENT 000N33726/1 NOZZLE ELEMENT 135B09041/3 CONROD 135D17033/1 TAPPET 135C05716/1 WASHER 135B03062/2 WASHER 135B03020/2 TAB WASHER 135C10002/1 VALVE SPRING INNER 135B03090/1 OIL SEAL 135B14008/1 SCREW 5600160071 PLUG 135L35037/1 STANDPIPE 135D19004/3 BEARING BUSHING 135C10017/5 GUIDE SLEEVE 135C01013/1 COLLARED BUSHING 5610380850 CONROD BUSHING SIZE 0 5610381150 CONROD BUSHING SIZE 3 5610380950 CONROD BUSHING SIZE 1 135C01007/1 COLLARED BUSHING 135C01006/1 SLOTTED NUT 135C01010/1 SPACER BUSHING 135C10020/2 VALVE HEAD INLET 135C10143/3 VALVE HEAD 135B09742/5 CONROD BEARING 5600550070 THREADED RING 135D17708/5 HYD LASH ADJUSTER 5610105420 CYLINDER HEAD 5600170509 BURNER 5600100083 SCREW 5619810086 ROLLER SIZE 0

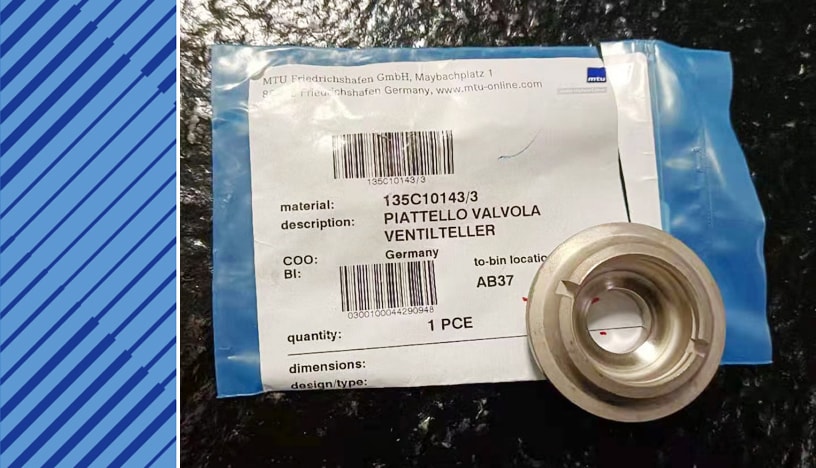

PART NUMBER 135C10143/3
ENGINE TYPE MTU 538 ENGINE
DESCRIPTION VALVE HEAD
DIMENSIONS N/A
UNIT WEIGHT 0.059 KG
HS CODE 84099900
NATO-VERS.-NR. 5340121419497
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

MTU 135C10143/3 Technical Engineering Exploded View

MTU 135C10143/3 Technical Engineering Exploded View

MTU 135C10143/3 Technical Engineering Exploded View

C/N Description Part-Number Qty
01 CYLINDER HEAD 5610105420 001
02 PIN DOWEL 000007006100 001
03 GROOVED PIN 001473004011 002
04 FLANGE LOWER PART 135C01008/1 001
05 PIN DOWEL 000007005101 001
06 FLANGE UPPER PART 5610160045 001
07 SPACER BUSHING 135C01010/1 002
08 STRESS BOLT 135C01009/1 004
09 STRESS BOLT 700209008201 004
10 STRESS BOLT 700209010209 002
11 BURNER 5600170509 001
11A BURNER 5600170609 000
12 COLLARED BUSHING 135C01007/1 001
12A COLLARED BUSHING 135C01013/1 000
13 SLOTTED NUT 135C01006/1 001
13A GASKET 5600111280 001
14 VALVE 135C11001/2 003
15 EXHAUST VALVE 5610500127 003
16 VALVE SPRING INNER 135C10002/1 006
17 VALVE SPRING OUTER 135C10003/1 006
18 VALVE HEAD INLET 135C10020/2 003
19 VALVE HEAD 135C10143/3 003
20 VALVE COLLET 135C10004/2 006
21 HALF-RING 135C10142/2 006
22 VALVE CAP 135C10013/2 003
22A VALVE CAP 135C10014/2 003
22B VALVE CAP 135C10015/2 003
22C VALVE CAP 135C10016/2 003
22D VALVE CAP 135C10042/2 000
22E VALVE CAP 135C10043/2 000
22F VALVE CAP 135C10044/2 000
22G VALVE CAP 135C10045/2 000
22H VALVE CAP 135C10046/2 000
22I VALVE CAP 5600530108 000
22J VALVE CAP 5600530208 000
23 VALVE CAP 135C10147/3 003
23A VALVE CAP 135C10148/3 003
23B VALVE CAP 135C10149/3 003
23C VALVE CAP 135C10150/3 003
23D VALVE CAP 135C10144/3 000
23E VALVE CAP 135C10145/3 000
23F VALVE CAP 135C10146/3 000
23G VALVE CAP 135C10151/3 000
23H VALVE CAP 135C10152/3 000
23I VALVE CAP 135C10153/3 000
23J VALVE CAP 135C10199/1 000
23K VALVE CAP 135C10200/1 000
24 GUIDE SLEEVE 135C10017/5 006
25 SNAP RING 009045025000 006

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
