MTU 538 Parts | 700292013000 | TAB WASHER

700292013000 TAB WASHER

Other
Other 514D19001/1 GASKET 5602030680 GASKET 135L45018/1 SLOTTED NUT 8352010073 TAB WASHER 5602030380 GASKET 5602011380 GASKET 5602011280 GASKET 5602011480 GASKET 5602010980 GASKET 135L35003/1 BUSHING 5602010880 GASKET 700217040001 SHAFT SEAL RING 5602011880 GASKET 000N13235/1 GASKET 700327012000 GROMMET 735038008106 RUBBER HOSE 135D11006/1 RUBBER SEAL 135D01012/1 RUBBER GROMMET 700327015000 GROMMET 000N33715/1 DELIVERY VALVE 000N33714/1 VALVE 5600740280 GASKET 135D11005/1 SEALING RING 135D11003/1 SEALING RING 5600980180 GASKET 5600980380 GASKET 806B01035/2 SPACER RING 806A23001/1 LOCKING PLATE 135D08007/1 SEALING RING 5600510580 GASKET 5600513780 GASKET 5600513580 GASKET 5600513680 GASKET 5600510080 GASKET 5600512280 GASKET 5600520080 GASKET 5600160280 GASKET 5600180080 GASKET 5030210580 GASKET 806A06020/1 SEALING RING 5601420084 SHIM 5611420680 GASKET 5600160180 GASKET 000N33730/1 STRAINER FILTER 999900010000 RIVET NUT 700292013000 TAB WASHER 700368035002 RUBBER SLEEVE 700368090002 SLEEVE RUBBER 135C04501/2 CONNECTING PIECE X58708300028 FUEL FILTER ELEMENT 000N33726/1 NOZZLE ELEMENT 135B09041/3 CONROD 135D17033/1 TAPPET 135C05716/1 WASHER 135B03062/2 WASHER 135B03020/2 TAB WASHER 135C10002/1 VALVE SPRING INNER 135B03090/1 OIL SEAL 135B14008/1 SCREW 5600160071 PLUG 135L35037/1 STANDPIPE 135D19004/3 BEARING BUSHING 135C10017/5 GUIDE SLEEVE 135C01013/1 COLLARED BUSHING 5610380850 CONROD BUSHING SIZE 0 5610381150 CONROD BUSHING SIZE 3 5610380950 CONROD BUSHING SIZE 1 135C01007/1 COLLARED BUSHING 135C01006/1 SLOTTED NUT 135C01010/1 SPACER BUSHING 135C10020/2 VALVE HEAD INLET 135C10143/3 VALVE HEAD 135B09742/5 CONROD BEARING 5600550070 THREADED RING 135D17708/5 HYD LASH ADJUSTER 5610105420 CYLINDER HEAD 5600170509 BURNER 5600100083 SCREW 5619810086 ROLLER SIZE 0
PART NUMBER 700292013000
ENGINE TYPE MTU 538 ENGINE
DESCRIPTION TAB WASHER
DIMENSIONS Φ13
UNIT WEIGHT 0.004 KG
HS CODE 73182900
NATO-VERS.-NR. 5310123375902
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 538 Engine Parts 700292013000 RUBBER SLEEVE

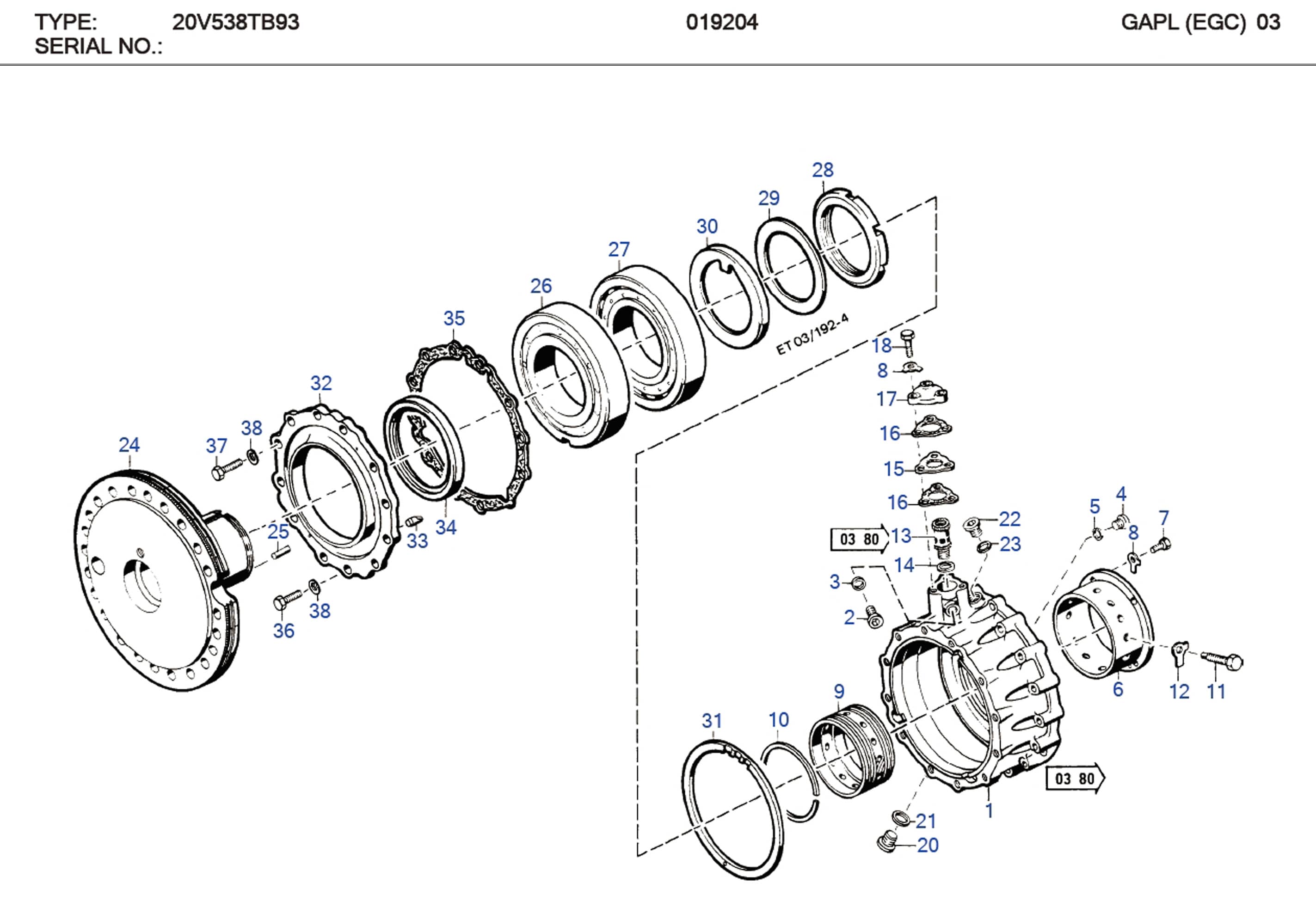

MTU 700292013000 Technical Engineering Exploded View MTU 538 Engine Parts 700292013000 RUBBER SLEEVE

MTU 538 Engine Parts 700292013000 RUBBER SLEEVE

C/N Description Part-Number Qty
01 END COVER 5620300255 001
02 PLUG 000908018002 001
03 SEALING RING 007603018101 001
04 PLUG 000908016001 002
05 SEALING RING 007603016105 002
06 SPACER BUSHING 137B03022/1 001
07 SCREW 304017008079 004
08 TAB WASHER 700292008400 007
09 COLLECTOR RING 137B03003/2 001
10 COMPRESSION RING 135B14012/1 004
11 SCREW 137B03023/1 003
12 TAB WASHER 700292013000 003
13 OIL PRESSURE RELIEF VALVE 135F36700/2 001
14 SEALING RING 007603032101 001
15 LOCKING PLATE 136B27006/1 001
16 GASKET 5610310080 002
17 END COVER 136B27502/1 001
18 SCREW 304017008081 003
20 PLUG 000908024004 001
21 SEALING RING 007603024106 001
22 PLUG 000908022001 001
23 SEALING RING 007603022102 001
24 PTO FLANGE 5620310445/42 001
25 DOWEL PIN 000007008107 001
26 DRIVE-END BEARING 136B03706/1 001
27 SELF-ALIGNING ROLLER THRUST BEARING 136B03742/1 001
28 SLOTTED NUT 135B03035/2 001
29 COVER DISC 135B03040/1 001
30 TAB WASHER 135B03020/2 001
31 COVER DISC 135B03062/2 001
31A COVER DISC 135B03063/2 001
31B COVER DISC 135B03064/2 001
31C COVER DISC 135B03065/2 001
32 END COVER 5620310233 001
33 TOMMY BAR 5620310274 002
34 SHAFT SEAL 135B03090/1 001
35 GASKET 5620350380 001
36 SCREW 000933010092 010
37 SCREW 000933010093 002
38 SPRING WASHER 000137010202 012

700292013000 SUPERSEDED PART AND EFFECTIVE DATE

700292013000 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 700292013000 000463013000 N/A
02 700292013000 900292013000 1997/12/01
03 700292013000 700292013000 1998/01/01

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
