MTU 538 Parts | 735038008106 | RUBBER HOSE

735038008106 RUBBER HOSE

Other
Other 514D19001/1 GASKET 5602030680 GASKET 135L45018/1 SLOTTED NUT 8352010073 TAB WASHER 5602030380 GASKET 5602011380 GASKET 5602011280 GASKET 5602011480 GASKET 5602010980 GASKET 135L35003/1 BUSHING 5602010880 GASKET 700217040001 SHAFT SEAL RING 5602011880 GASKET 000N13235/1 GASKET 700327012000 GROMMET 735038008106 RUBBER HOSE 135D11006/1 RUBBER SEAL 135D01012/1 RUBBER GROMMET 700327015000 GROMMET 000N33715/1 DELIVERY VALVE 000N33714/1 VALVE 5600740280 GASKET 135D11005/1 SEALING RING 135D11003/1 SEALING RING 5600980180 GASKET 5600980380 GASKET 806B01035/2 SPACER RING 806A23001/1 LOCKING PLATE 135D08007/1 SEALING RING 5600510580 GASKET 5600513780 GASKET 5600513580 GASKET 5600513680 GASKET 5600510080 GASKET 5600512280 GASKET 5600520080 GASKET 5600160280 GASKET 5600180080 GASKET 5030210580 GASKET 806A06020/1 SEALING RING 5601420084 SHIM 5611420680 GASKET 5600160180 GASKET 000N33730/1 STRAINER FILTER 999900010000 RIVET NUT 700292013000 TAB WASHER 700368035002 RUBBER SLEEVE 700368090002 SLEEVE RUBBER 135C04501/2 CONNECTING PIECE X58708300028 FUEL FILTER ELEMENT 000N33726/1 NOZZLE ELEMENT 135B09041/3 CONROD 135D17033/1 TAPPET 135C05716/1 WASHER 135B03062/2 WASHER 135B03020/2 TAB WASHER 135C10002/1 VALVE SPRING INNER 135B03090/1 OIL SEAL 135B14008/1 SCREW 5600160071 PLUG 135L35037/1 STANDPIPE 135D19004/3 BEARING BUSHING 135C10017/5 GUIDE SLEEVE 135C01013/1 COLLARED BUSHING 5610380850 CONROD BUSHING SIZE 0 5610381150 CONROD BUSHING SIZE 3 5610380950 CONROD BUSHING SIZE 1 135C01007/1 COLLARED BUSHING 135C01006/1 SLOTTED NUT 135C01010/1 SPACER BUSHING 135C10020/2 VALVE HEAD INLET 135C10143/3 VALVE HEAD 135B09742/5 CONROD BEARING 5600550070 THREADED RING 135D17708/5 HYD LASH ADJUSTER 5610105420 CYLINDER HEAD 5600170509 BURNER 5600100083 SCREW 5619810086 ROLLER SIZE 0
PART NUMBER 735038008106
ENGINE TYPE MTU 538 ENGINE
DESCRIPTION RUBBER HOSE
DIMENSIONS 1SN 8 CC 350
UNIT WEIGHT 0.206 KG
HS CODE 40092200
NATO-VERS.-NR. 4720123230236
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 538 ENGINE PARTS 735038008106 RUBBER HOSE

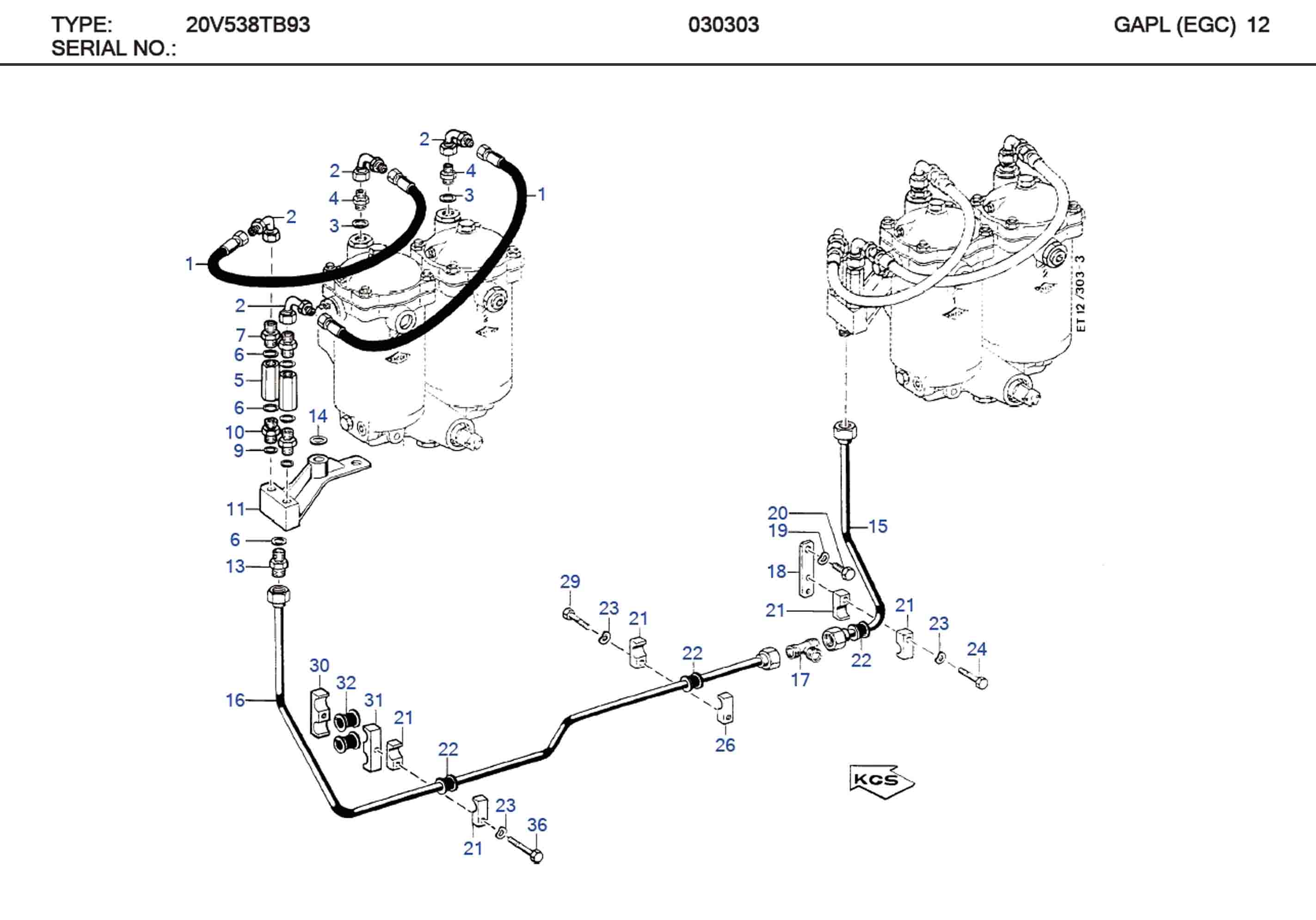

MTU 735038008106 Technical Engineering Exploded View

MTU 538 ENGINE PARTS 735038008106 RUBBER HOSE

C/N Description Part-Number Qty
01 RUBBER HOSE 735038008106 004
02 ELBOW 700160000008 008
03 SEALING RING 007603018101 004
04 REDUCTION UNION 915007010001 004
05 NON-RETURN VALVE 135M21731/1 004
06 SEALING RING 007603016105 010
07 UNION 915006008002 004
09 SEALING RING 007603014102 004
10 REDUCTION UNION 915007008004 004
11 ALARM SWITCH 135M21743/1 002
13 EXHAUST PIPE NECK 915013010001 002
14 COVER DISC 000125015016 004
15 FUEL PIPELINE 137M21704/1 001
16 VENT LINE 137M21705/1 001
17 FITTING TEE 5569970874 001
18 ALARM SWITCH 135M20004/1 001
19 SPRING WASHER 000137010202 001
20 SCREW 000933010089 001
21 PIPE HALF-CLAMP 700325018100 005
22 GROMMET 700327012000 003
23 SPRING WASHER 000137008203 003
24 SCREW 304017008084 001
26 PIPE HALF-CLAMP 700325018200 001
29 SCREW 304017008085 001
30 PIPE HALF-CLAMP 700325022203 001
31 PIPE HALF-CLAMP 700325022104 001
32 GROMMET 700327015000 002
36 SCREW 000931008227 001

735038008106 SUPERSEDED PART AND EFFECTIVE DATE

735038008106 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 735038008106 815M27703/1 N/A
02 735038008106 700160008115 1996/02/01
03 735038008106 700160008719 1996/03/01
04 735038008106 700160008202 1996/04/01
05 735038008106 700160008103 1996/05/01
06 735038008106 700160008718 1996/06/01
07 735038008106 124M21704/1 1996/07/01
08 735038008106 124M21703/1 1996/08/01
09 735038008106 114M21711/1 1996/09/01
10 735038008106 114M21709/1 1996/10/01
11 735038008106 735038008204 1996/11/01
12 735038008106 735038008106 1996/12/01

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
