| PART NUMBER | 5600160280 |
| ENGINE TYPE | MTU 538 ENGINE |

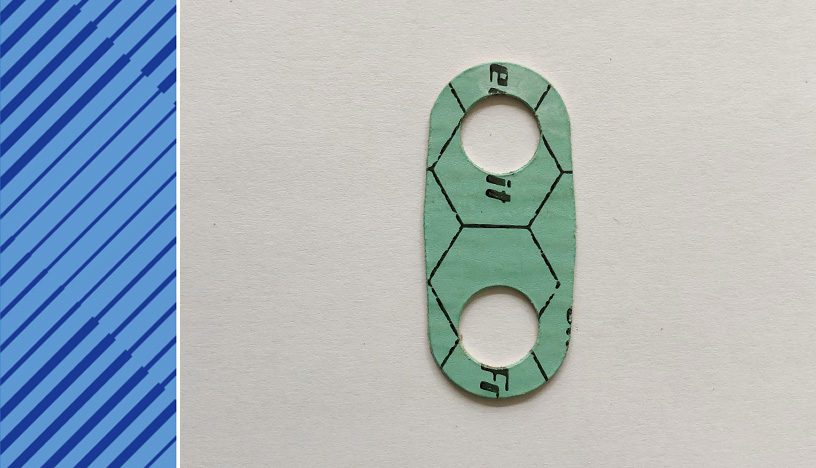

| DESCRIPTION | GASKET |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.001 KG |
| HS CODE | 68151900 |
| NATO-VERS.-NR. | 5330123248753 |

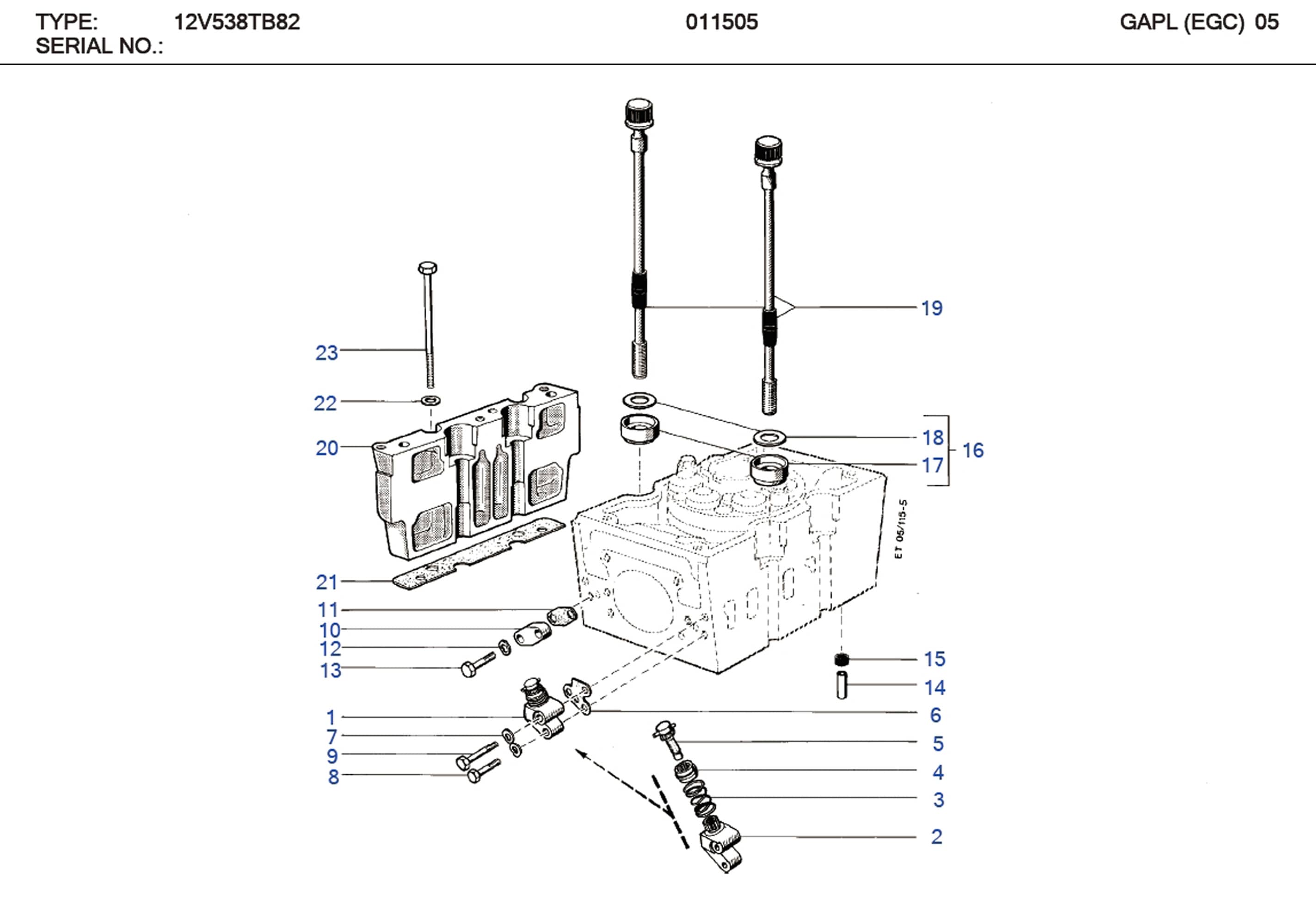

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 01 | DECOMPRESSION VALVE | 135C04701/1 | 012 |
| 02 | CONNECTING PIECE | 135C04501/2 | 012 |
| 03 | LEAF SPRING | 135C04004/1 | 012 |
| 04 | THROW-OUT SLEEVE | 135C04006/1 | 012 |
| 05 | PLUG | 135C04702/3 | 012 |
| 06 | GASKET | 5600160180 | 012 |
| 07 | SPRING WASHER | 000137008203 | 036 |
| 08 | SCREW | 000931008058 | 024 |
| 09 | SCREW | 000931008227 | 012 |
| 10 | BLIND FLANGE | 135C06501/1 | 006 |
| 11 | GASKET | 5600160280 | 006 |
| 12 | SPRING WASHER | 000137010202 | 012 |
| 13 | SCREW | 000931010231 | 012 |
| 14 | SPACER SLEEVE | 135A45008/2 | 072 |
| 15 | SEALING RING | 5610110059 | 072 |
| 16 | WASHER | 135C05716/1 | 076 |
| 17 | COVER RING | 135C05030/1 | 076 |
| 18 | COVER DISC | 135C05012/1 | 076 |
| 19 | DRAIN PLUG | 5600100083 | 076 |
| 20 | END MEMBER | 136C17711/2 | 002 |
| 21 | GASKET | 5600110080 | 001 |
| 21A | GASKET | 5600110180 | 001 |
| 22 | COVER DISC | 000125010524 | 004 |
| 23 | SCREW | 000931010278 | 004 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 5600160280 | 135C06002/1 | N/A |
| 02 | 5600160280 | 5600160280 | 1990/04/01 |
| Make | Year of construction | Power KW | U/MIN |
|---|---|---|---|
| 12V 538 TB92 | N/A | 2250 | 1900 |
| 20V 538 TB92 | N/A | 3000 | 1900 |
| 16V 538 TB93 | N/A | 3300 | 1900 |
| 20V 538 TB93 | N/A | 4120 | 1900 |
| 12V 538 TB8 | MD 656 | 1655 | 1800 |
| 12V 538 TB9 | MD 657 | 1986 | 1900 |
| 20V 538 TB1 | MD 1080 | 2096 | 1600 |
| 20V 538 TB6 | MD 1080 | 1839 | 1500 |
| 20V 538 TB7 | MC 1080/30 | 2390 | 1720 |
| 16V 538 TB9 | MD 872 | 2648 | 1900 |
