MTU 538 Parts | 5600980380 | GASKET

5600980380 GASKET

Other
Other 514D19001/1 GASKET 5602030680 GASKET 135L45018/1 SLOTTED NUT 8352010073 TAB WASHER 5602030380 GASKET 5602011380 GASKET 5602011280 GASKET 5602011480 GASKET 5602010980 GASKET 135L35003/1 BUSHING 5602010880 GASKET 700217040001 SHAFT SEAL RING 5602011880 GASKET 000N13235/1 GASKET 700327012000 GROMMET 735038008106 RUBBER HOSE 135D11006/1 RUBBER SEAL 135D01012/1 RUBBER GROMMET 700327015000 GROMMET 000N33715/1 DELIVERY VALVE 000N33714/1 VALVE 5600740280 GASKET 135D11005/1 SEALING RING 135D11003/1 SEALING RING 5600980180 GASKET 5600980380 GASKET 806B01035/2 SPACER RING 806A23001/1 LOCKING PLATE 135D08007/1 SEALING RING 5600510580 GASKET 5600513780 GASKET 5600513580 GASKET 5600513680 GASKET 5600510080 GASKET 5600512280 GASKET 5600520080 GASKET 5600160280 GASKET 5600180080 GASKET 5030210580 GASKET 806A06020/1 SEALING RING 5601420084 SHIM 5611420680 GASKET 5600160180 GASKET 000N33730/1 STRAINER FILTER 999900010000 RIVET NUT 700292013000 TAB WASHER 700368035002 RUBBER SLEEVE 700368090002 SLEEVE RUBBER 135C04501/2 CONNECTING PIECE X58708300028 FUEL FILTER ELEMENT 000N33726/1 NOZZLE ELEMENT 135B09041/3 CONROD 135D17033/1 TAPPET 135C05716/1 WASHER 135B03062/2 WASHER 135B03020/2 TAB WASHER 135C10002/1 VALVE SPRING INNER 135B03090/1 OIL SEAL 135B14008/1 SCREW 5600160071 PLUG 135L35037/1 STANDPIPE 135D19004/3 BEARING BUSHING 135C10017/5 GUIDE SLEEVE 135C01013/1 COLLARED BUSHING 5610380850 CONROD BUSHING SIZE 0 5610381150 CONROD BUSHING SIZE 3 5610380950 CONROD BUSHING SIZE 1 135C01007/1 COLLARED BUSHING 135C01006/1 SLOTTED NUT 135C01010/1 SPACER BUSHING 135C10020/2 VALVE HEAD INLET 135C10143/3 VALVE HEAD 135B09742/5 CONROD BEARING 5600550070 THREADED RING 135D17708/5 HYD LASH ADJUSTER 5610105420 CYLINDER HEAD 5600170509 BURNER 5600100083 SCREW 5619810086 ROLLER SIZE 0
PART NUMBER 5600980380
ENGINE TYPE MTU 538 ENGINE
DESCRIPTION GASKET
DIMENSIONS N/A
UNIT WEIGHT 0.030 KG
HS CODE 68159900
NATO-VERS.-NR. 5330123249210
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 538 ENGINE PARTS 5600980380 GASKET

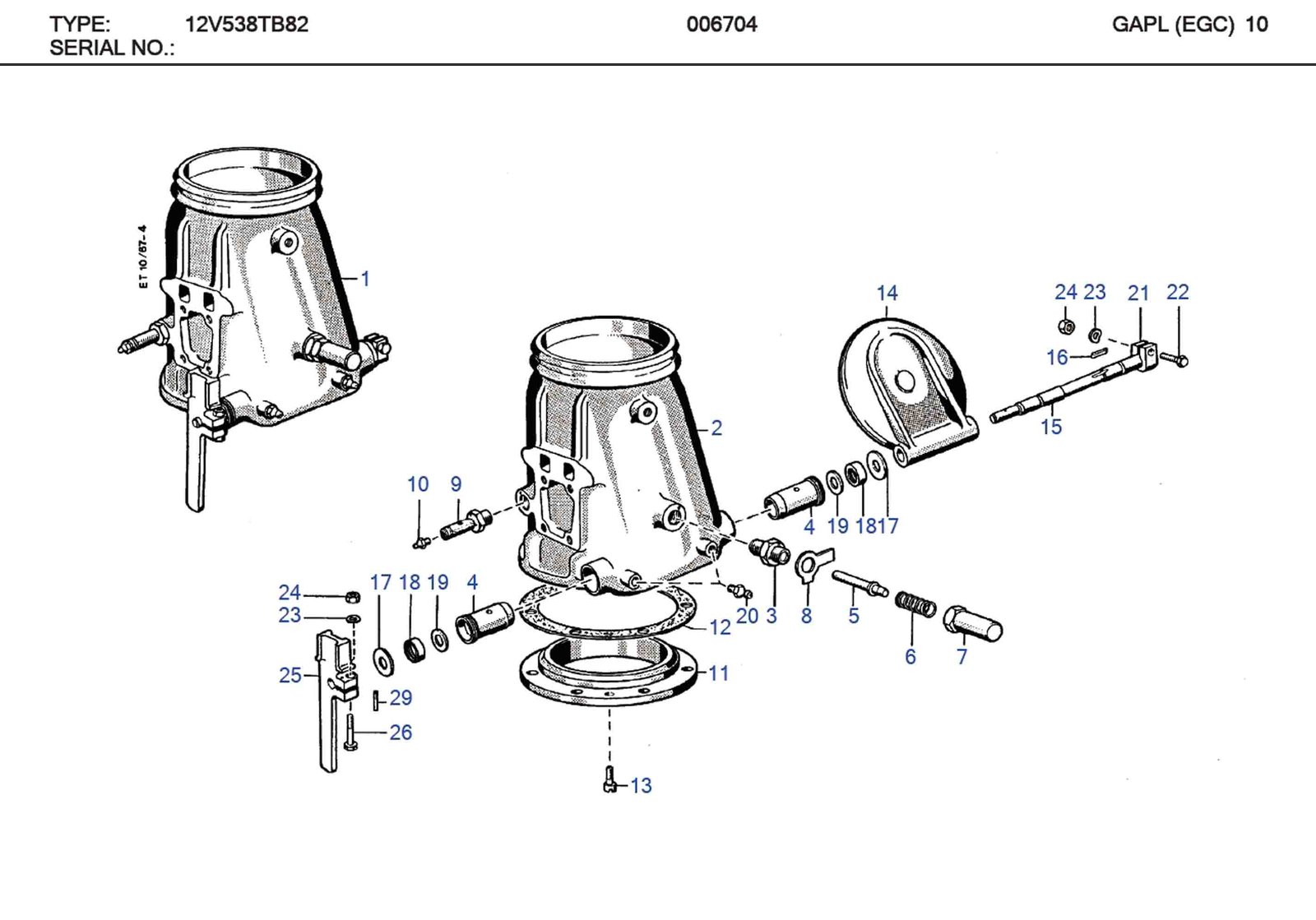

MTU 5600980380 Technical Engineering Exploded View

MTU 538 ENGINE PARTS 5600980380 GASKET

C/N Description Part-Number Qty
01 EMERGENCY AIR SHUT-OFF FLAP 135L53702/3 002
02 EXHAUST HOUSING 5600900060 002
03 GUIDE 635E02002/1 002
04 DRIVE-END BEARING 135L52001/2 004
05 THRUST PIN 635E02004/1 002
06 LEAF SPRING 135L53002/1 002
07 CLOSURE CAP 635E02006/1 002
08 TAB WASHER 700292019000 002
09 BEARING PIN 136L54047/1 002
10 BUTTONHEAD LUBRICATING NIPPLE 071412006100 002
11 VALVE SEAT 635E02512/1 002
12 GASKET 5600980380 001
12A GASKET 5600980480 001
12B GASKET 5600980580 001
13 SCREW 000084006134 008
14 EXHAUST FLAP 135L53701/3 002
15 OUTPUT SHAFT 135L53001/2 002
16 KEY 006885005018 002
17 COVER DISC 635E02015/1 004
18 SHAFT SEAL 700217016000 004
19 COVER DISC 635E02014/1 004
20 BUTTONHEAD LUBRICATING NIPPLE 071412010100 004
21 BATTERY TERMINAL 635E02016/1 002
22 SCREW 000933008117 002
23 SPRING WASHER 000137008203 004
24 HEX NUT 000934008008 004
25 SHUTDOWN LEVER 136L53502/1 002
26 SCREW 000931008046 002
29 SPRING PIN 001481004006 002

5600980380 SUPERSEDED PART AND EFFECTIVE DATE

5600980380 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5600980380 535E02002/1 N/A
02 5600980380 5600980380 1990/04/01

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
