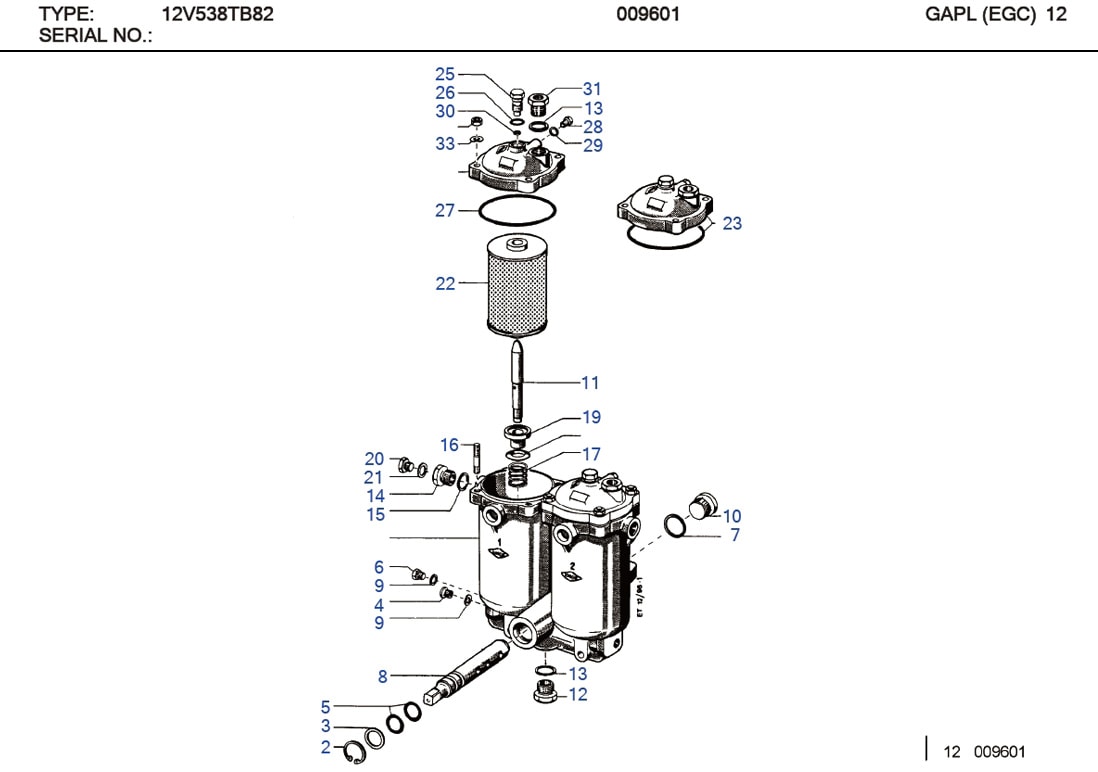

MTU X58708300028 Technical Engineering Exploded View

MTU X58708300028 Technical Engineering Exploded View

MTU X58708300028 Technical Engineering Exploded View

C/N Description Part-Number Qty
000 FUEL DUPLEX FILTER 136L77703/1 001
02 SNAP RING 000472038000 001
03 COVER DISC 0000920276 001
04 PLUG 000908014001 001
05 O-RING 700294025002 002
06 PLUG 007604014102 002
07 SEALING RING 007603036101 001
08 VALVE PLUG 0000920215 001
09 SEALING RING 007603014106 003
10 PLUG 000908036007 001
11 SPACER PIN 0000920074 002
12 THREADED BUSHING 0009970216 004
13 SEALING RING 007603028103 006
14 THREADED BUSHING 0009970116 002
15 SEALING RING 007603026104 002
16 STUD 000835010067 008
16A COVER DISC 000470014000 001
17 LEAF SPRING 8490920120 002
18 GASKET 0000920260 002
20 PLUG 007604018101 002
21 SEALING RING 007603018101 002
22 FUEL FILTER ELEMENT X58708300028 002
23 END COVER 8490920110 002
25 VENT PLUG 000N13039/1 002
26 O-RING 700294015006 002
27 GASKET 000N13235/1 002
28 PLUG 000910010002 002
29 SEALING RING 007603010110 002
30 GASKET 000N13038/1 002
31 THREADED BUSHING 5619970416 002
33 SPRING WASHER 000137010103 008

X58708300028 SUPERSEDED PART AND EFFECTIVE DATE

X58708300028 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 X58708300028 0000920505 N/A
02 X58708300028 136L77702/1 1993/04/01
03 X58708300028 000N05220/1 1993/05/01
04 X58708300028 000N13033/1 1993/06/01
05 X58708300028 000N13227/1 1993/07/01
06 X58708300028 0004773415 1993/08/01
07 X58708300028 0000920905 1993/09/01
08 X58708300028 0000922905 1993/10/01
09 X58708300028 0000922805 1993/11/01
10 X58708300028 0000924905 1993/12/01
11 X58708300028 0000921705 2020/08/22
12 X58708300028 X58708300028 2020/09/22

MTU 538 Diesel Engine Models & Specifications

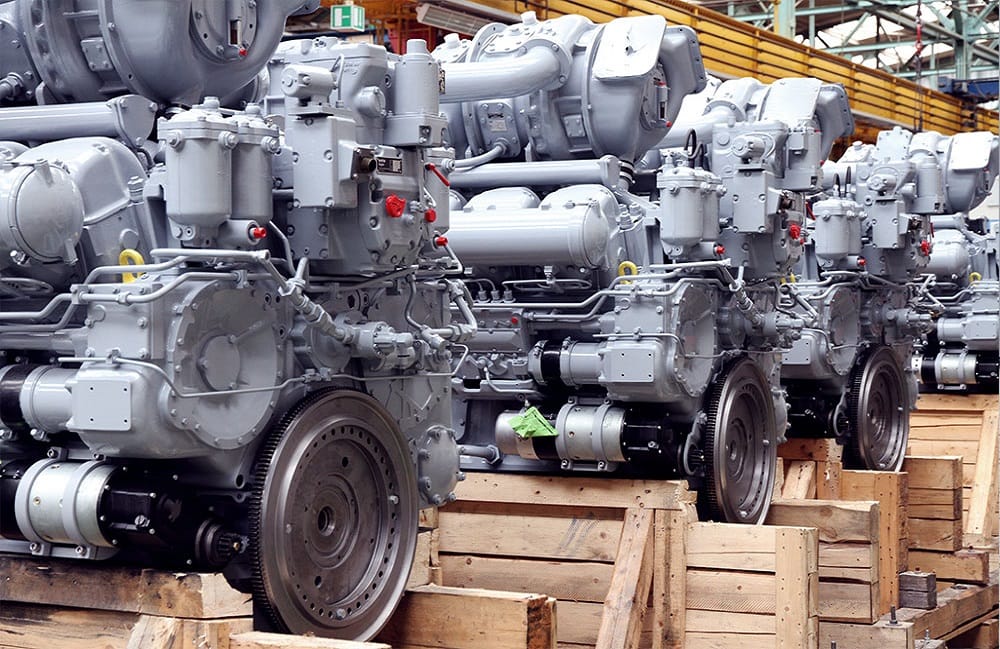

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
