PART NUMBER 5600510080
ENGINE TYPE MTU 538 ENGINE
DESCRIPTION GASKET
DIMENSIONS N/A
UNIT WEIGHT 0.015 KG
HS CODE 68159900
NATO-VERS.-NR. 5330123248916
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 538 ENGINE PARTS 5600510080 GASKET

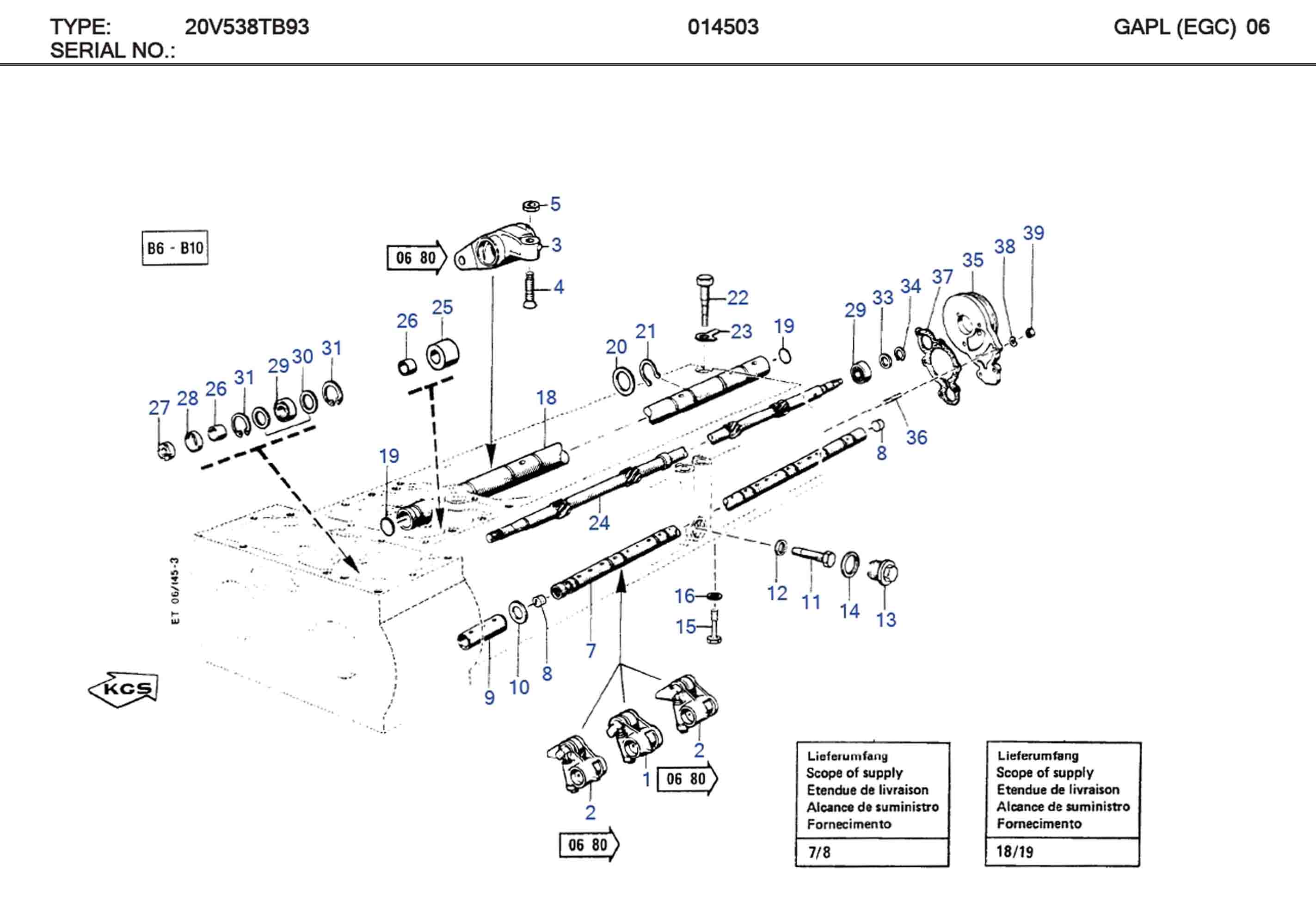

MTU 5600510080 Technical Engineering Exploded View

MTU 538 ENGINE PARTS 5600510080 GASKET

C/N Description Part-Number Qty
01 SWING FOLLOWER 5600500235 010
02 SWING FOLLOWER 5600500435 020
03 ROCKER ARM 5610702020 005
04 BALL SOCKET 5610770436 005
05 HEX NUT 5849901551 005
07 ROCKER SHAFT 137D20007/1 002
08 PLUG 136D20010/1 004
09 SPACER BUSHING 135D20027/1 010
10 FRICTION WASHER 5600770162 020
10A FRICTION WASHER 5600770262 020
10B FRICTION WASHER 5600770362 020
10C FRICTION WASHER 5600770462 020
10D FRICTION WASHER 5600770562 020
10E FRICTION WASHER 135D20016/2 020
10F FRICTION WASHER 135D20017/2 020
10G FRICTION WASHER 135D20018/2 020
11 LOCATING SCREW 135D20019/1 002
12 SEALING RING 007603010107 002
13 PLUG 135D20003/1 002
14 SEALING RING 007603030101 002
15 STRESS BOLT 700209008201 006
16 COVER DISC 000125010524 006
18 ROCKER SHAFT 137D20002/1 001
19 BLANKING DISC 700090026001 002
20 FRICTION WASHER 135D20007/1 010
21 SNAP RING 135D20008/1 010
22 DRAIN PLUG 135D20014/1 001
23 TAB WASHER 700292013000 001
24 CONTROL SHAFT 137D20009/1 001
25 CLAMP 5620610067 001
26 SPACER RING 135D20011/1 002
27 SLOTTED NUT 5619900260 001
28 LOCKING RING 5619940243 001
29 GROOVE BALL BEARING 200625906008 002
30 WASHER 717115025100 002
30A WASHER 717115025101 002
30B WASHER 717115025102 002
30C WASHER 717115025103 002
30D WASHER 717115025104 002
31 SNAP RING 000472035000 002
33 WASHER 717115017100 001
33A WASHER 717115017101 001
33B WASHER 717115017102 001
33C WASHER 717115017103 001
33D WASHER 717115017104 001
34 SNAP RING 000471017000 001
35 END COVER 137D06507/2 001
36 STUD 000835008061 006
37 GASKET 5600510080 001
38 SPRING WASHER 000137008203 006
39 HEX NUT 000439008209 006

5600510080 SUPERSEDED PART AND EFFECTIVE DATE

5600510080 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5600510080 135D06002/1 N/A
02 5600510080 135D06002/3 1995/06/01
03 5600510080 5600510080 1995/07/01

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
