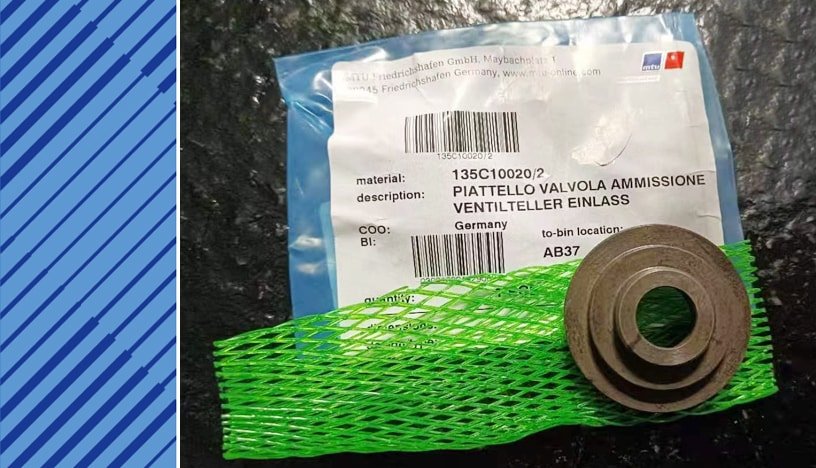

PART NUMBER 135C10020/2
ENGINE TYPE MTU 538 ENGINE
DESCRIPTION VALVE HEAD INLET
DIMENSIONS N/A
UNIT WEIGHT 0.064 KG
HS CODE 84099900
NATO-VERS.-NR. 5340121254628
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

MTU 135C10020/2 Technical Engineering Exploded View

MTU 135C10020/2 Technical Engineering Exploded View

MTU 135C10020/2 Technical Engineering Exploded View

C/N Description Part-Number Qty
01 CYLINDER HEAD 5610105420 001
02 PIN DOWEL 000007006100 001
03 GROOVED PIN 001473004011 002
04 FLANGE LOWER PART 135C01008/1 001
05 PIN DOWEL 000007005101 001
06 FLANGE UPPER PART 5610160045 001
07 SPACER BUSHING 135C01010/1 002
08 STRESS BOLT 135C01009/1 004
09 STRESS BOLT 700209008201 004
10 STRESS BOLT 700209010209 002
11 BURNER 5600170509 001
11A BURNER 5600170609 000
12 COLLARED BUSHING 135C01007/1 001
12A COLLARED BUSHING 135C01013/1 000
13 SLOTTED NUT 135C01006/1 001
13A GASKET 5600111280 001
14 VALVE 135C11001/2 003
15 EXHAUST VALVE 5610500127 003
16 VALVE SPRING INNER 135C10002/1 006
17 VALVE SPRING OUTER 135C10003/1 006
18 VALVE HEAD INLET 135C10020/2 003
19 VALVE HEAD 135C10143/3 003
20 VALVE COLLET 135C10004/2 006
21 HALF-RING 135C10142/2 006
22 VALVE CAP 135C10013/2 003
22A VALVE CAP 135C10014/2 003
22B VALVE CAP 135C10015/2 003
22C VALVE CAP 135C10016/2 003
22D VALVE CAP 135C10042/2 000
22E VALVE CAP 135C10043/2 000
22F VALVE CAP 135C10044/2 000
22G VALVE CAP 135C10045/2 000
22H VALVE CAP 135C10046/2 000
22I VALVE CAP 5600530108 000
22J VALVE CAP 5600530208 000
23 VALVE CAP 135C10147/3 003
23A VALVE CAP 135C10148/3 003
23B VALVE CAP 135C10149/3 003
23C VALVE CAP 135C10150/3 003
23D VALVE CAP 135C10144/3 000
23E VALVE CAP 135C10145/3 000
23F VALVE CAP 135C10146/3 000
23G VALVE CAP 135C10151/3 000
23H VALVE CAP 135C10152/3 000
23I VALVE CAP 135C10153/3 000
23J VALVE CAP 135C10199/1 000
23K VALVE CAP 135C10200/1 000
24 GUIDE SLEEVE 135C10017/5 006
25 SNAP RING 009045025000 006
