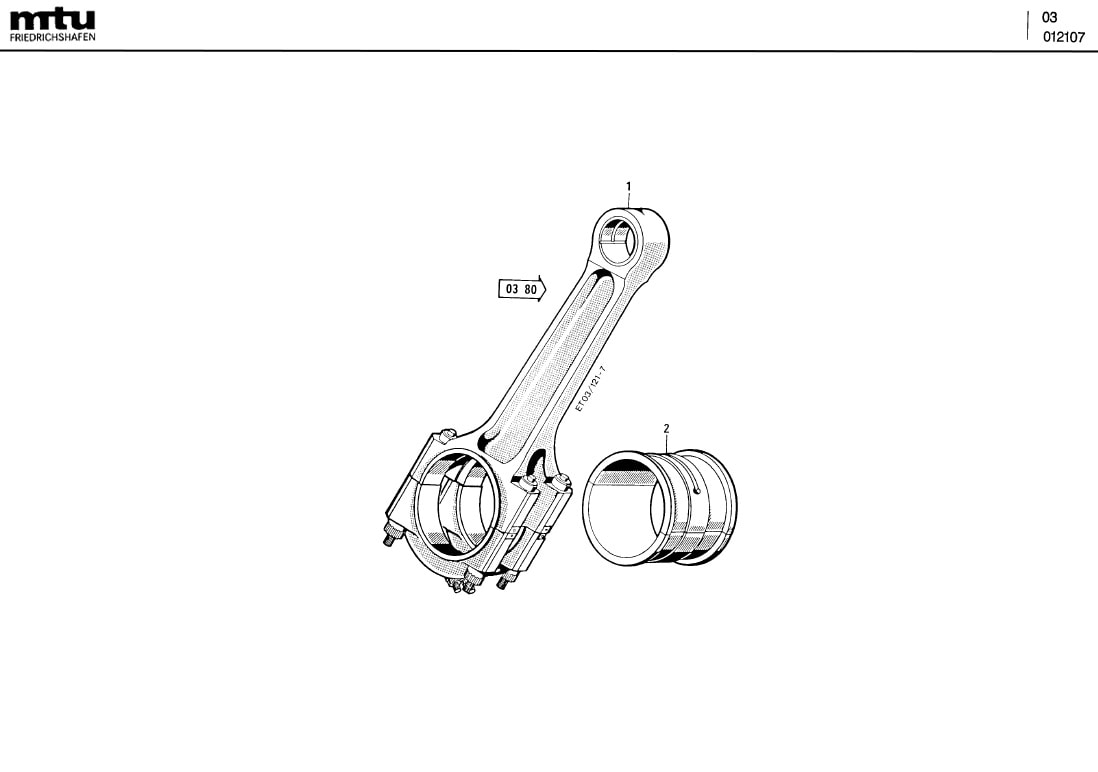

MTU 135B09742/5 Technical Engineering Exploded View

MTU 135B09742/5 Technical Engineering Exploded View

MTU 135B09742/5 Technical Engineering Exploded View

C/N Description Part-Number Qty
000 CONROD 5610300320 001
01 CONROD 5610300520 001

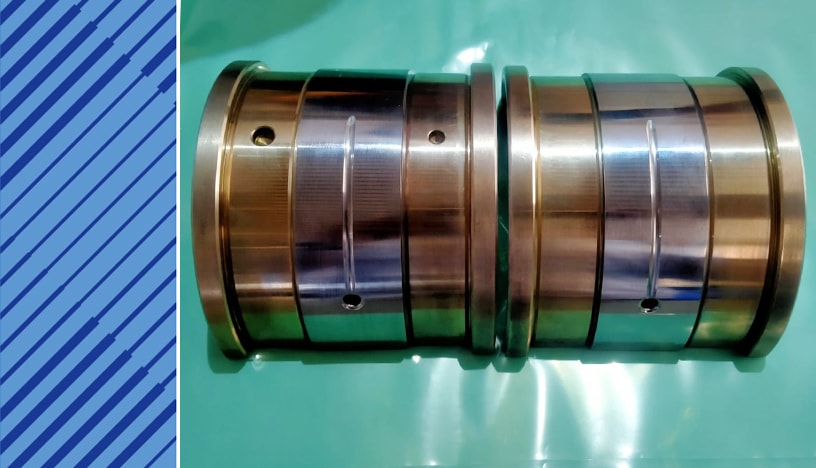

02 CONROD BEARING 135B09742/5 001
02A CONROD BEARING 135B99703/5 000
02B CONROD BEARING 135B99704/5 000
02C CONROD BEARING 135B99706/5 000
02D CONROD BEARING 135B99707/5 000
02E CONROD BEARING 135B99722/4 000
02F CONROD BEARING 135B99723/4 000
02G CONROD BEARING 135B99724/4 000
02H CONROD BEARING 135B99725/4 000
02I CONROD BEARING 135B99705/5 000

135B09742/5 SUPERSEDED PART AND EFFECTIVE DATE

135B09742/5 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 135B09742/5 135B09742/1 N/A
02 135B09742/5 135B09752/3 1998/05/01
03 135B09742/5 135B09752/4 1998/06/01
04 135B09742/5 135B09742/5 1998/07/01

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
