MTU 538 Parts | 700368090002 | SLEEVE RUBBER

700368090002 SLEEVE RUBBER

Other
Other 5600160180 GASKET 000N33730/1 STRAINER FILTER 999900010000 RIVET NUT 700292013000 TAB WASHER 700368035002 RUBBER SLEEVE 700368090002 SLEEVE RUBBER 135C04501/2 CONNECTING PIECE X58708300028 FUEL FILTER ELEMENT 000N33726/1 NOZZLE ELEMENT 135B09041/3 CONROD 135D17033/1 TAPPET 135C05716/1 WASHER 135B03062/2 WASHER 135B03020/2 TAB WASHER 135C10002/1 VALVE SPRING INNER 135B03090/1 OIL SEAL 135B14008/1 SCREW 5600160071 PLUG 135L35037/1 STANDPIPE 135D19004/3 BEARING BUSHING 135C10017/5 GUIDE SLEEVE 135C01013/1 COLLARED BUSHING 5610380850 CONROD BUSHING SIZE 0 5610381150 CONROD BUSHING SIZE 3 5610380950 CONROD BUSHING SIZE 1 135C01007/1 COLLARED BUSHING 135C01006/1 SLOTTED NUT 135C01010/1 SPACER BUSHING 135C10020/2 VALVE HEAD INLET 135C10143/3 VALVE HEAD 135B09742/5 CONROD BEARING 5600550070 THREADED RING 135D17708/5 HYD LASH ADJUSTER 5610105420 CYLINDER HEAD 5600170509 BURNER 5600100083 SCREW 5619810086 ROLLER SIZE 0
PART NUMBER 700368090002
ENGINE TYPE MTU 538 ENGINE
DESCRIPTION SLEEVE RUBBER
DIMENSIONS 90 X 140
UNIT WEIGHT 0.370 KG
HS CODE 40093100
NATO-VERS.-NR. 4720123527667
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

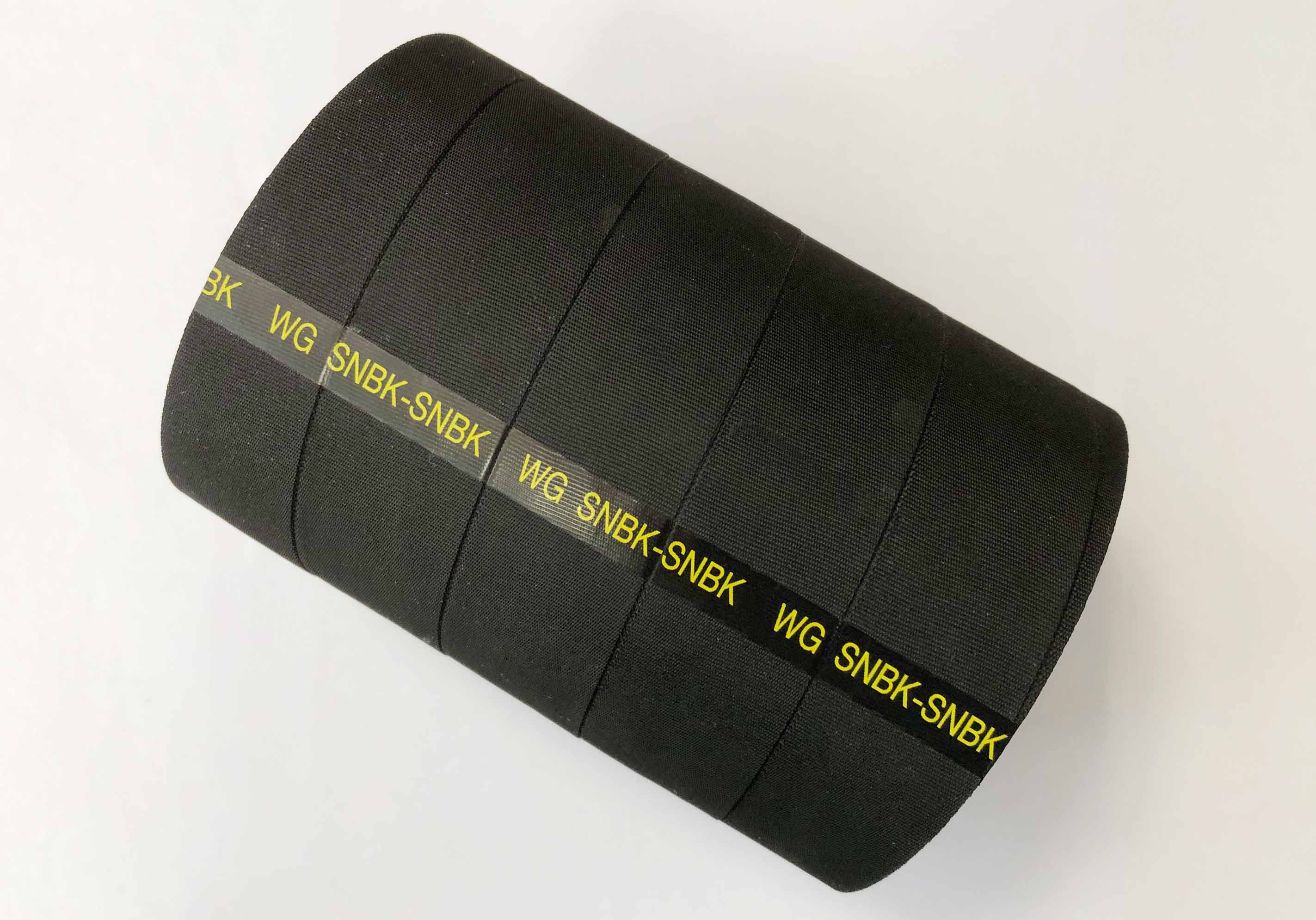

MTU 538 Engine Parts 700368090002 RUBBER SLEEVE

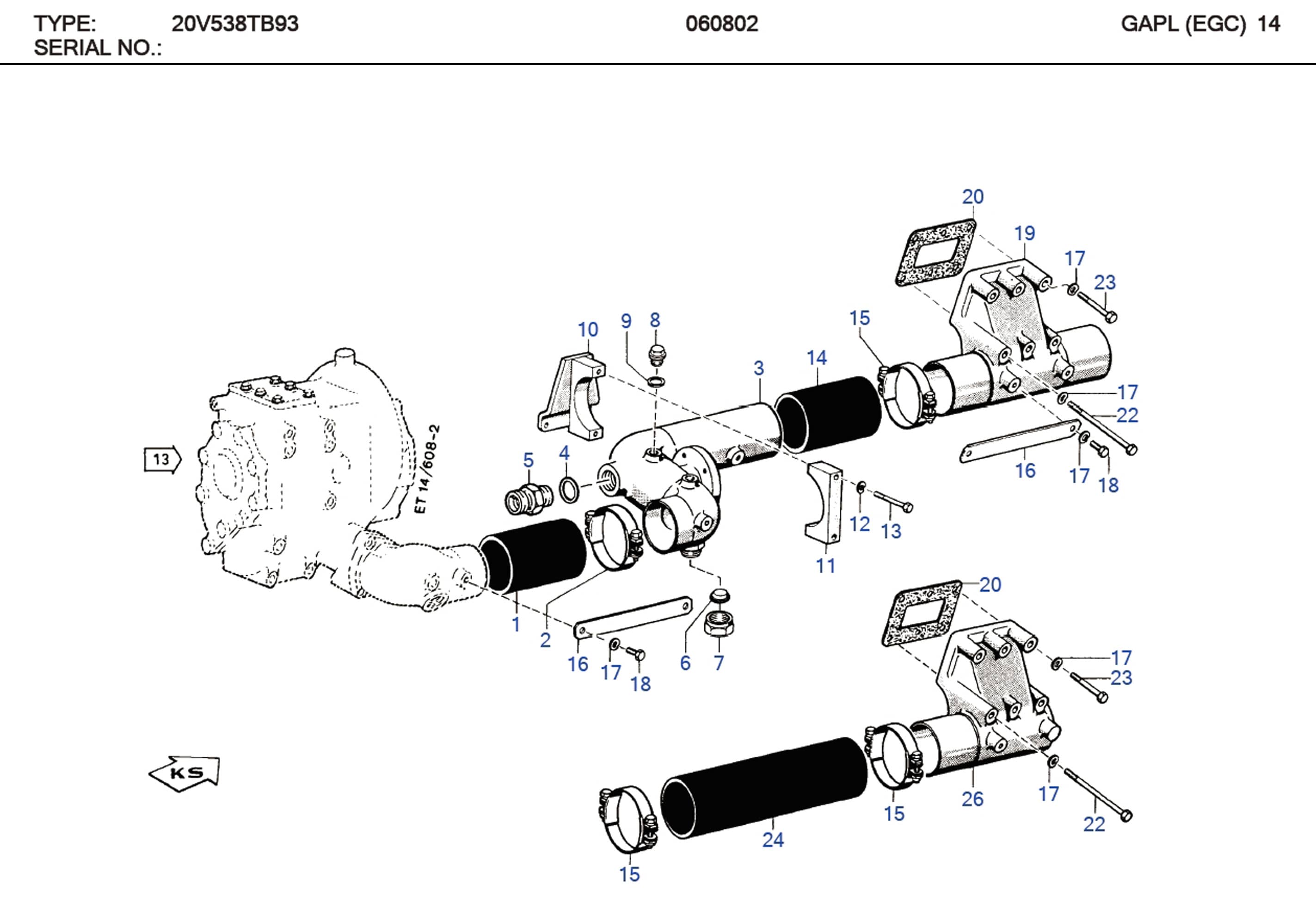

MTU 700368090002 Technical Engineering Exploded View MTU 538 Engine Parts 700368090002 RUBBER SLEEVE

MTU 538 Engine Parts 700368090002 RUBBER SLEEVE

C/N Description Part-Number Qty
01 RUBBER SLEEVE 700368090002 001
02 CLAMP 900288102002 002
03 COOLANT LINE 5622006552 001
04 SEALING RING 007603038101 001
05 EXHAUST PIPE NECK 915013032000 001
06 SEALING CONE 915005020001 001
07 RIVET NUT 915001020003 001
08 PLUG 000910018003 001
09 SEALING RING 007603018101 001
10 ALARM SWITCH 137M27708/1 001
11 PIPE HALF-CLAMP 700346080101 001
12 SPRING WASHER 000137008203 002
13 SCREW 304017008086 001
14 RUBBER SLEEVE 700368080004 001
15 CLAMP 900288092004 004
16 LINK 137M27003/1 002
17 SPRING WASHER 000137010202 016
18 SCREW 000933010198 004
19 DISTRIBUTOR 137M27703/2 001
20 GASKET 5622030380 003
22 SCREW 000931010247 006
23 SCREW 000931010236 004
24 RUBBER SLEEVE 700368080012 001
26 EXHAUST PIPE NECK 5622000059 001

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
