Your mtu 538 engine has a history that includes everything from its unique operating conditions to how it’s integrated into your existing equipment. When maintaining your engine’s identity is essential and a customized restoration process is beneficial, an mtu Factory Overhaul is the ideal solution.
Our rigorous restoration process does more than repair and recondition your equipment. It fully returns mtu engines and systems to original factory specifications thanks to our complete technical expertise and proprietary procedures based on decades of experience.
PART NUMBER | 135B09041/3 |
ENGINE TYPE | MTU 538 ENGINE |
DESCRIPTION | CONROD |
DIMENSIONS | N/A |
UNIT WEIGHT | 9.690 KG |
HS CODE | 84099900 |
NATO-VERS.-NR. | 2815123038510 |
PART NUMBER | 135D17033/1 |
ENGINE TYPE | MTU 538 ENGINE |
DESCRIPTION | TAPPET |
DIMENSIONS | N/A |
UNIT WEIGHT | 0.005 KG |
HS CODE | 84099900 |
NATO-VERS.-NR. | 2815121392590 |

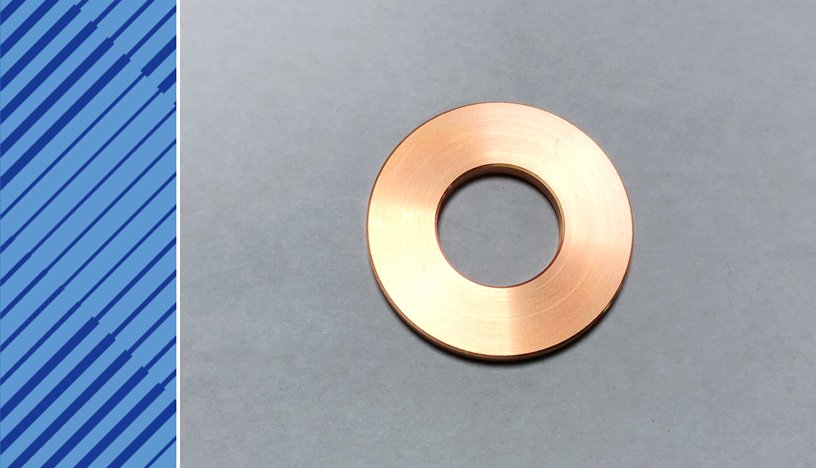

PART NUMBER | 135C05716/1 |
ENGINE TYPE | MTU 538 ENGINE |
DESCRIPTION | WASHER |
DIMENSIONS | N/A |
UNIT WEIGHT | 0.104 KG |
HS CODE | 84099900 |
NATO-VERS.-NR. | 5310121426139 |
PART NUMBER | 135B03062/2 |
ENGINE TYPE | MTU 538 ENGINE |
DESCRIPTION | WASHER |
DIMENSIONS | N/A |
UNIT WEIGHT | 0.430 KG |
HS CODE | 84879059 |
NATO-VERS.-NR. | 2815121426128 |
PART NUMBER | 135B03020/2 |
ENGINE TYPE | MTU 538 ENGINE |
DESCRIPTION | TAB WASHER |
DIMENSIONS | N/A |
UNIT WEIGHT | 0.250 KG |
HS CODE | 73182100 |
NATO-VERS.-NR. | 5310121426125 |

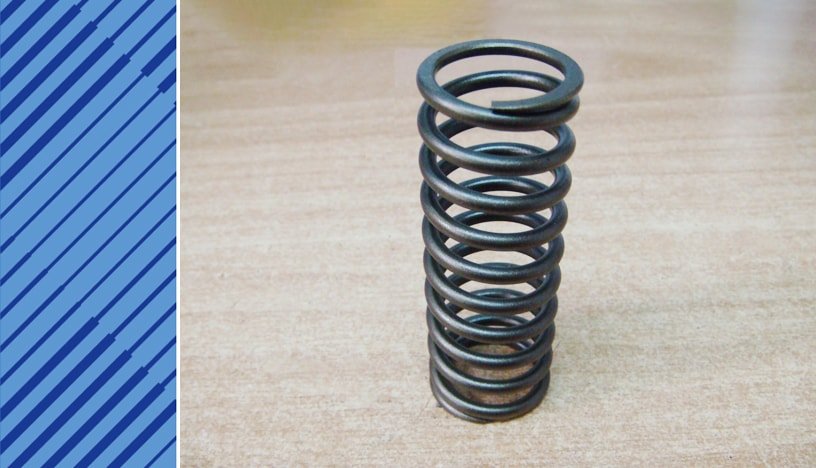

PART NUMBER | 135C10002/1 |
ENGINE TYPE | MTU 538 ENGINE |
DESCRIPTION | VALVE SPRING INNER |
DIMENSIONS | N/A |
UNIT WEIGHT | 0.051 KG |
HS CODE | 73202081 |
NATO-VERS.-NR. | 5360121254625 |
PART NUMBER | 135B03090/1 |
ENGINE TYPE | MTU 538 ENGINE |
DESCRIPTION | OIL SEAL |
DIMENSIONS | N/A |
UNIT WEIGHT | 0.282 KG |
HS CODE | 84879090 |
NATO-VERS.-NR. | 5330121425716 |

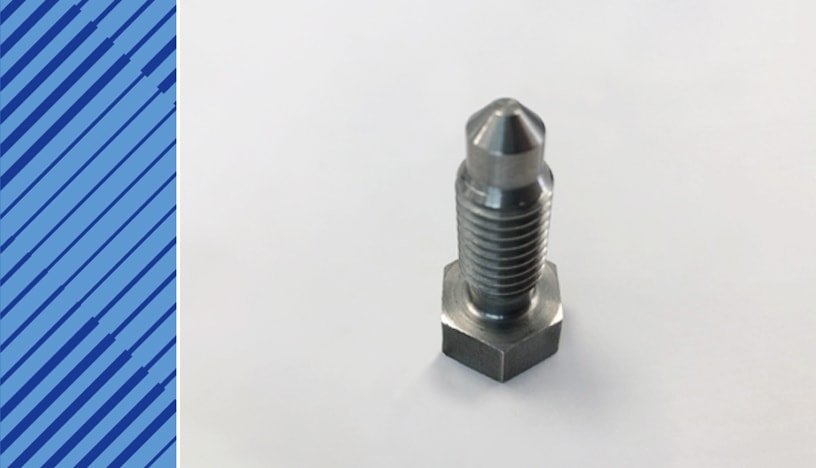

PART NUMBER | 135B14008/1 |
ENGINE TYPE | MTU 538 ENGINE |
DESCRIPTION | SCREW |
NORM | MMN389 |
UNIT WEIGHT | 0.023 KG |
HS CODE | 73181588 |
NATO-VERS.-NR. | 2815121287270 |
PART NUMBER | 5600160071 |
ENGINE TYPE | MTU 538 ENGINE |
DESCRIPTION | PLUG |
DIMENSIONS | N/A |
UNIT WEIGHT | 0.036 KG |
HS CODE | 73269098 |
NATO-VERS.-NR. | 5305123423034 |
PART NUMBER | 135L35037/1 |
ENGINE TYPE | MTU 538 ENGINE |
DESCRIPTION | STANDPIPE |
DIMENSIONS | N/A |
UNIT WEIGHT | 0.035 KG |
HS CODE | 73182900 |
NATO-VERS.-NR. | 3040121629116 |
PART NUMBER | 135D19004/3 |
ENGINE TYPE | MTU 538 ENGINE |
DESCRIPTION | BEARING BUSHING |
DIMENSIONS | N/A |
UNIT WEIGHT | 0.076 KG |
HS CODE | 84833080 |
NATO-VERS.-NR. | 3120123121234 |
PART NUMBER | 135C10017/5 |
ENGINE TYPE | MTU 538 ENGINE |
DESCRIPTION | GUIDE SLEEVE |
DIMENSIONS | N/A |
UNIT WEIGHT | 0.090 KG |
HS CODE | 84099900 |
NATO-VERS.-NR. | 2815121288353 |
PART NUMBER | 135C01013/1 |
ENGINE TYPE | MTU 538 ENGINE |
DESCRIPTION | COLLARED BUSHING |
DIMENSIONS | N/A |
UNIT WEIGHT | 0.323 KG |
HS CODE | 84099900 |
NATO-VERS.-NR. | 5365123995450 |
PART NUMBER | 5610380850 |
ENGINE TYPE | MTU 538 ENGINE |
DESCRIPTION | CONROD BUSHING SIZE 0 |
DIMENSIONS | N/A |
UNIT WEIGHT | 0.322 KG |
HS CODE | 84833080 |
NATO-VERS.-NR. | 3120123386793 |

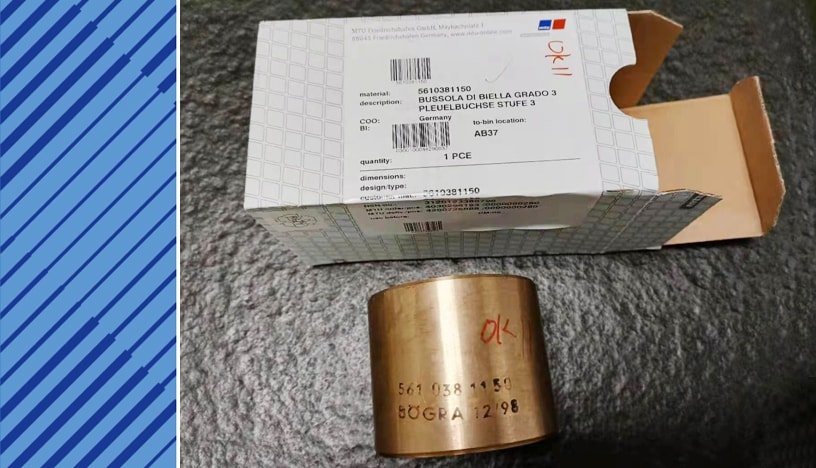

PART NUMBER | 5610381150 |
ENGINE TYPE | MTU 538 ENGINE |
DESCRIPTION | CONROD BUSHING SIZE 3 |
DIMENSIONS | N/A |
UNIT WEIGHT | 0.376 KG |
HS CODE | 84833080 |
NATO-VERS.-NR. | 3120123386796 |
PART NUMBER | 5610380950 |
ENGINE TYPE | MTU 538 ENGINE |
DESCRIPTION | CONROD BUSHING SIZE 1 |
DIMENSIONS | N/A |
UNIT WEIGHT | 0.350 KG |
HS CODE | 84833080 |
NATO-VERS.-NR. | 3120123386794 |
Documentation and reporting of investigation following disassembly, including verification measurements and damage analysis
Invitation to evaluate scrapped parts and components
Provision of supporting evidence when additional corrective work is recommended
Completion and documentation of order-specific requirements

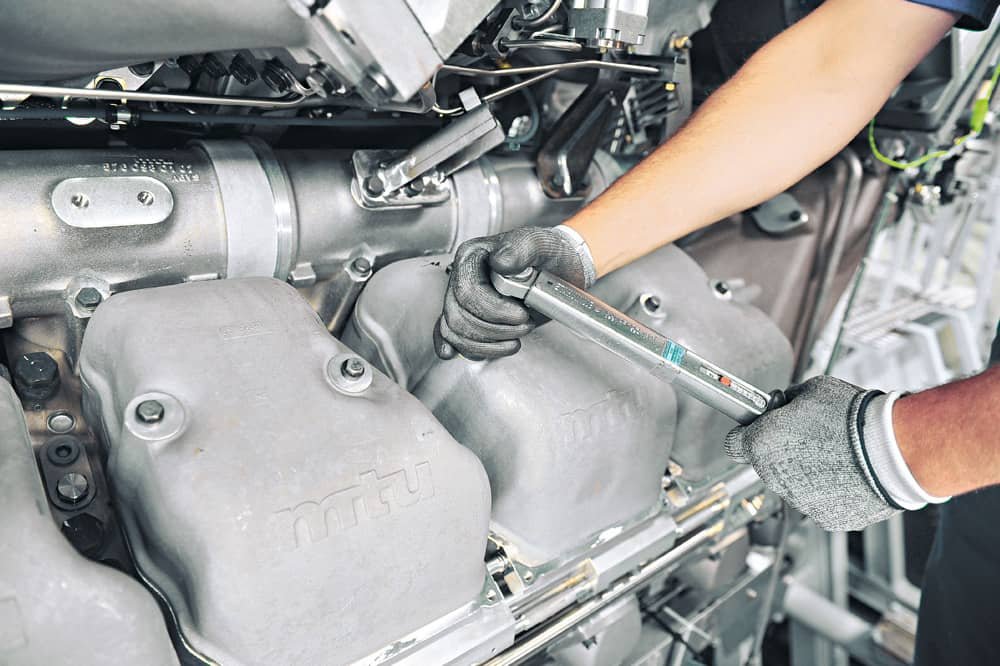

Initiation of assembly processes using remanufactured/rebuilt parts and components and new wear parts (gaskets, seals, bolts, screws, etc.)
Utilization of most up-to-date tools, specification documents and layout drawings for series production
Adherence to inspection plans developed in agreement with quality management, including documentation of key dimensions (dimensions sheets, templates, push-on dimensions) throughout the assembly process
Implementation of design and model related updates and upgrades (if applicable)
Participation in acceptance testing
Dynamometer testing under simulated operating conditions such as extreme temperatures
Documentation of engine values, evaluation and provision of plausibility assessment according to dispatch documentation
Priming and paint-finishing according to your specifications
Commercial/seaworthy/long-term packaging/preservation
Didn't find your solution? Click Here to contact our engineers to provide you with more detailed information, whether it is an overhaul plan or the parts needed for repair.
