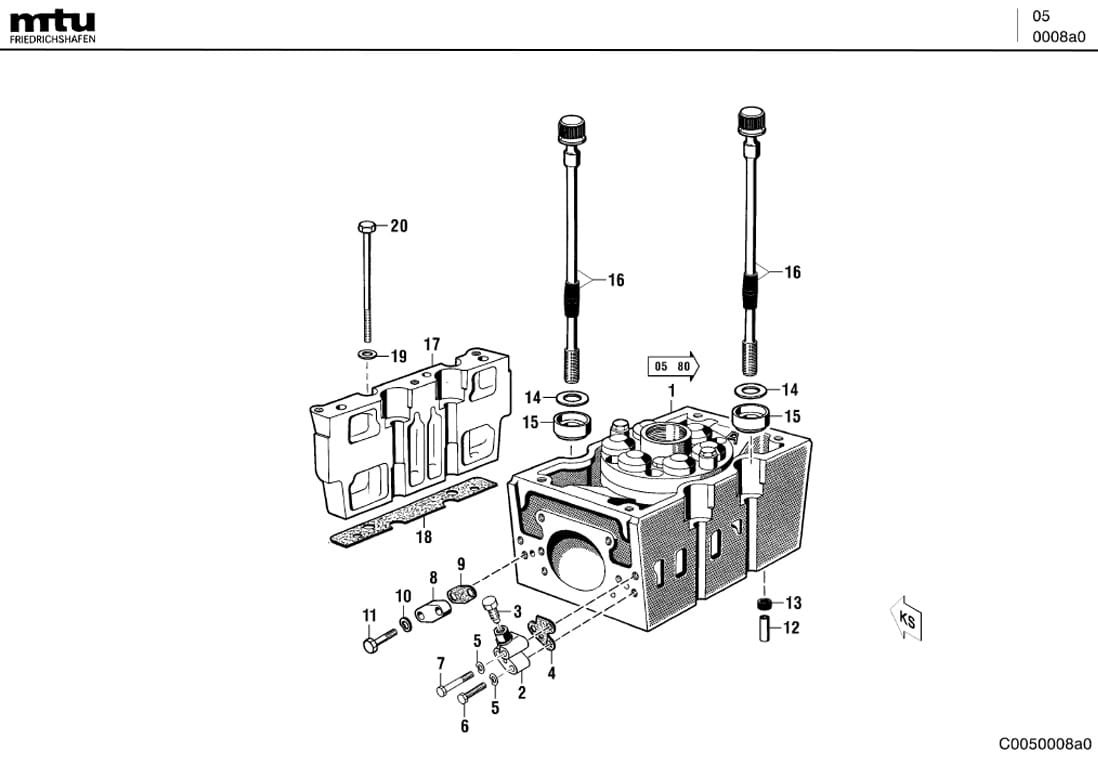

MTU 5600100083 Technical Engineering Exploded View

MTU 5600100083 Technical Engineering Exploded View

MTU 5600100083 Technical Engineering Exploded View

C/N Description Part-Number Qty
01 CYLINDER HEAD COMPLETE 5610105620 016
02 CONNECTING PIECE 135C04501/2 016
03 PLUG 5600160071 016
04 GASKET 5600160180 016
05 WASHER SPRING B8 000137008203 048
06 HEX SCREW 304017008085 032
07 HEX SCREW 000931008227 016
08 BLIND FLANGE 135C06501/1 008
09 GASKET 5600160280 008
10 WASHER SPRING B10 000137010202 016
11 HEX SCREW 000933010116 016
12 SLEEVE 135A45008/2 096
13 SEALING RING 5610110059 096
13A GASKET 5600111280 001
14 RING 135C05030/1 100
15 WASHER 135C05012/1 100
16 SCREW 5600100083 100
17 END MEMBER 136C17711/2 002
18 GASKET 5600110080 002
18A GASKET 5600110180 002
19 WASHER 000125010524 004
20 SCREW 000931010278 004

5600100083 SUPERSEDED PART AND EFFECTIVE DATE

5600100083 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5600100083 135C05704/1 N/A
02 5600100083 135C05001/1 1992/01/22
03 5600100083 135C05022/1 1992/01/23
04 5600100083 5600100083 1992/02/01

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
