C/N | Description | Part-Number | Qty |
---|---|---|---|
01 | ADAPTER FRAME | 135D09701/1 | 002 |

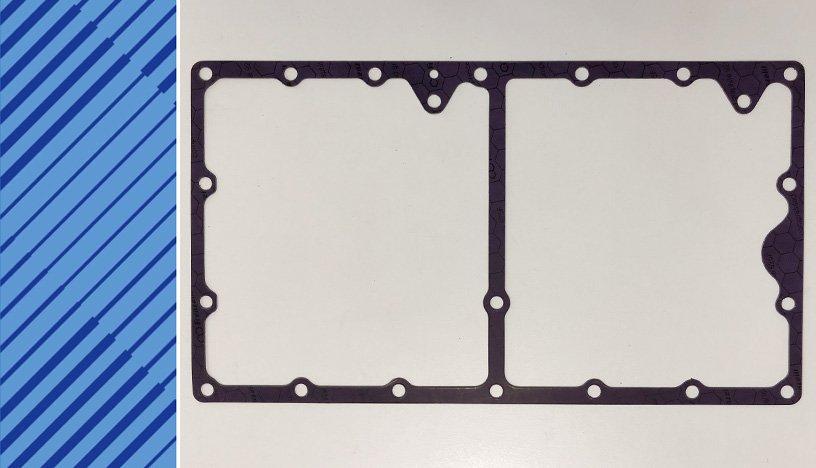

02 | GASKET | 5600513580 | 002 |
03 | ADAPTER FRAME | 135D09702/1 | 002 |
04 | GASKET | 5600513680 | 002 |
05 | ADAPTER FRAME | 137D09703/1 | 002 |
06 | GASKET | 5620511280 | 002 |
07 | SCREW | 000933008114 | 010 |
08 | SCREW | 304017008083 | 004 |
09 | COVER DISC | 000125008427 | 134 |
10 | END COVER | 135D09503/1 | 020 |
11 | GASKET | 5600513780 | 004 |
12 | END COVER | 137D09502/1 | 002 |
13 | GASKET | 5620511380 | 002 |
14 | SCREW | 000931008173 | 096 |
15 | SCREW | 000931008227 | 024 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 5600513680 | 135D08004/1 | N/A |
02 | 5600513680 | 5600510380 | 1990/03/01 |
03 | 5600513680 | 5600513680 | 1990/04/01 |
Make | Year of construction | Power KW | U/MIN |
---|---|---|---|
12V 538 TB92 | N/A | 2250 | 1900 |
20V 538 TB92 | N/A | 3000 | 1900 |
16V 538 TB93 | N/A | 3300 | 1900 |
20V 538 TB93 | N/A | 4120 | 1900 |
12V 538 TB8 | MD 656 | 1655 | 1800 |
12V 538 TB9 | MD 657 | 1986 | 1900 |
20V 538 TB1 | MD 1080 | 2096 | 1600 |
20V 538 TB6 | MD 1080 | 1839 | 1500 |
20V 538 TB7 | MC 1080/30 | 2390 | 1720 |
16V 538 TB9 | MD 872 | 2648 | 1900 |
