C/N | Description | Part-Number | Qty |
---|---|---|---|
01 | EXHAUST PIPE | 5601401108 | 004 |
02 | EXHAUST PIPE | 5601401208 | 004 |
03 | EXHAUST PIPE | 5601401308 | 002 |
04 | EXHAUST PIPE | 5601401408 | 002 |
05 | PLUG | 000908018008 | 001 |
06 | FLOATING PIPE JOINT | 8331420037 | 008 |
07 | GAITER | 8331420159 | 008 |
08 | V-BAND COUPLING | 0019975190 | 012 |

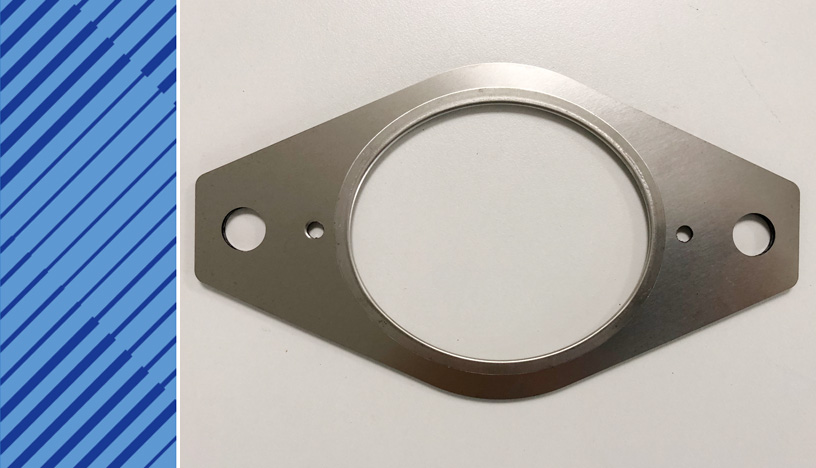

09 | GASKET | 5611420680 | 012 |
10 | SHIM | 5601420084 | 001 |
10A | SHIM | 5601420284 | 001 |
11 | SCREW | 200933012005 | 024 |
12 | EXHAUST PIPE BELLOWS | 5601400282 | 004 |
13 | CABLE CONDUIT | 5601420037 | 004 |
15 | TAB WASHER | 822A02003/1 | 012 |
16 | TAB WASHER | 700292008400 | 004 |
17 | SCREW | 000933008214 | 004 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 5611420680 | 135M01767/1 | N/A |
02 | 5611420680 | 135M01094/1 | 1994/05/01 |
03 | 5611420680 | 135M01093/1 | 1996/06/01 |
04 | 5611420680 | 135M01105/1 | 1994/07/01 |
05 | 5611420680 | 135M01713/2 | 1994/08/01 |
06 | 5611420680 | 135M01705/1 | 1994/09/01 |
07 | 5611420680 | 135M01033/1 | 1994/10/01 |
08 | 5611420680 | 135M01032/1 | 1994/11/01 |
09 | 5611420680 | 135M01086/1 | 1994/12/01 |
10 | 5611420680 | 135M01705/6 | 1995/01/01 |
11 | 5611420680 | 5611420680 | 1995/02/01 |
Make | Year of construction | Power KW | U/MIN |
---|---|---|---|
12V 538 TB92 | N/A | 2250 | 1900 |
20V 538 TB92 | N/A | 3000 | 1900 |
16V 538 TB93 | N/A | 3300 | 1900 |
20V 538 TB93 | N/A | 4120 | 1900 |
12V 538 TB8 | MD 656 | 1655 | 1800 |
12V 538 TB9 | MD 657 | 1986 | 1900 |
20V 538 TB1 | MD 1080 | 2096 | 1600 |
20V 538 TB6 | MD 1080 | 1839 | 1500 |
20V 538 TB7 | MC 1080/30 | 2390 | 1720 |
16V 538 TB9 | MD 872 | 2648 | 1900 |
