PART NUMBER 135L45018/1
ENGINE TYPE MTU 538 ENGINE
DESCRIPTION SLOTTED NUT
DIMENSIONS N/A
UNIT WEIGHT 0.036 KG
HS CODE 73181900
NATO-VERS.-NR. 5310121858628
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

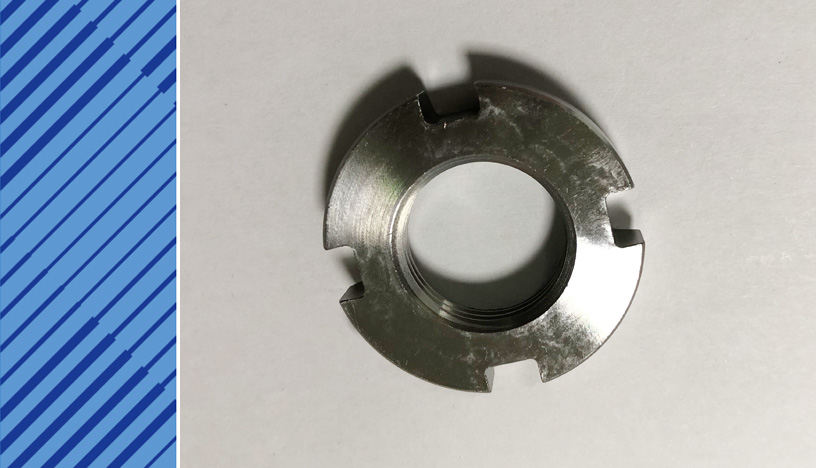

MTU 538 SPARE PARTS 135L45018/1 SLOTTED NUT

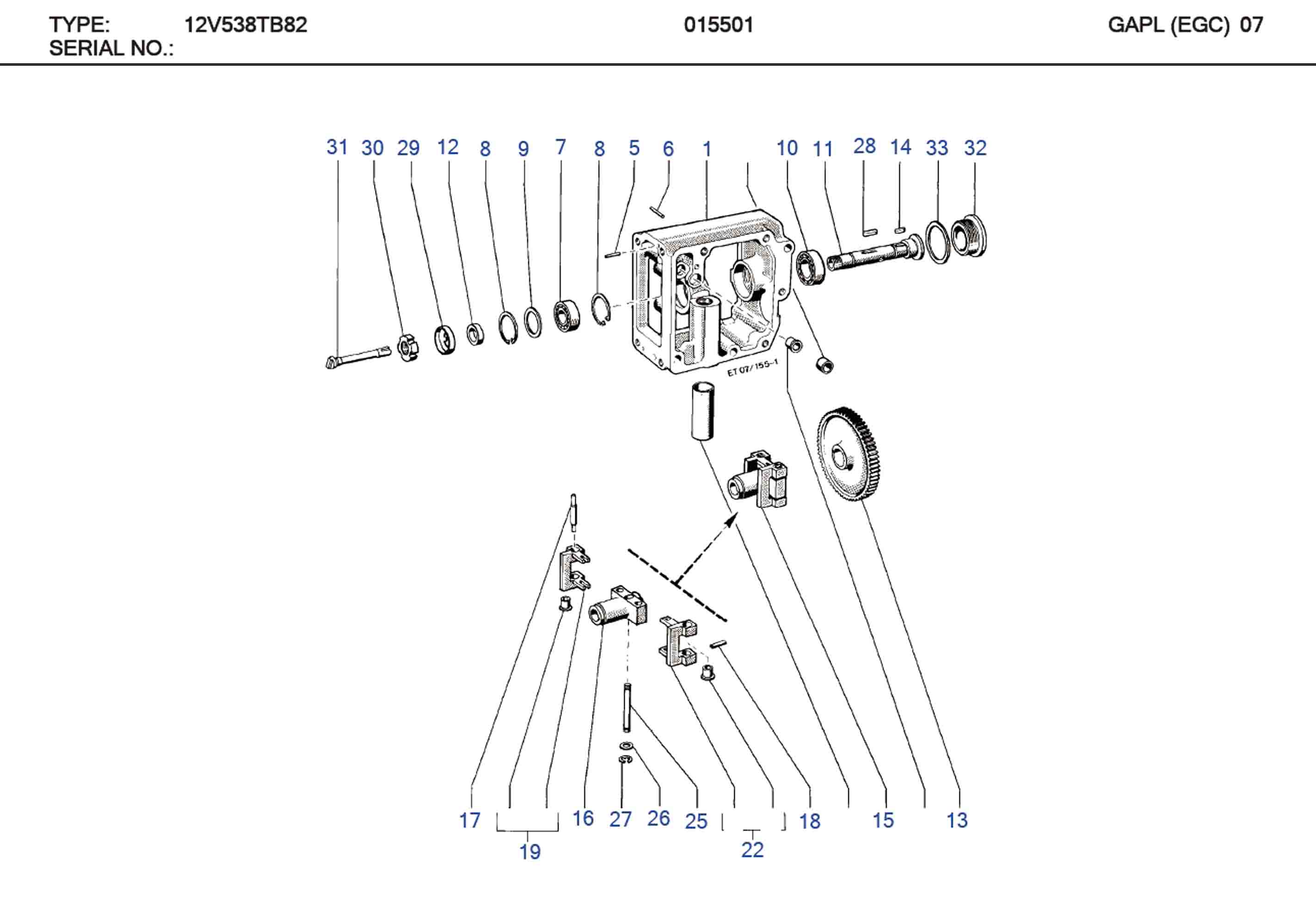

MTU 135L45018/1 Technical Engineering Exploded View

MTU 538 SPARE PARTS 135L45018/1 SLOTTED NUT

C/N Description Part-Number Qty
01 CONNECTION HOUSING 716E02703/3 001
05 DOWEL PIN 000007003103 002
06 DOWEL PIN 000007004102 002
07 DEEP-GROOVE THRUST BALL BEARING 200625906009 001
08 SNAP RING 700442042000 002
09 WASHER 717115032100 001
09A WASHER 717115032101 001
09B WASHER 717115032102 001
09C WASHER 717115032103 001
10 DEEP-GROOVE THRUST BALL BEARING 200625906012 001
11 DRIVE SHAFT 716E02004/2 001
12 COVER RING 762S12074/1 001
13 DRIVE GEAR 762S12025/1 001
14 KEY 006885006024 001
15 FLYWEIGHT RETAINER 716E02723/2 001
16 FLYWEIGHT RETAINER 716E02051/1 001
17 SPACER PIN 716E02043/2 002
18 SPRING PIN 001481004002 002
19 FLYWEIGHT 716E02719/1 001
22 FLYWEIGHT 716E02721/1 001
25 SPACER PIN 716E02047/1 001
26 COVER DISC 000433006400 002
27 LOCKWASHER 006799004000 002
28 KEY 006885006029 001
29 TAB WASHER 8352010073 001
30 SLOTTED NUT 135L45018/1 001
31 THROW-OUT SLEEVE 716E02010/1 001
32 PLUG 762S12062/1 001
33 SEALING RING 762S12063/1 001

135L45018/1 SUPERSEDED PART AND EFFECTIVE DATE

135L45018/1 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 135L45018/1 714415000020 N/A
02 135L45018/1 135L45018/1 1990/04/01

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
