| PART NUMBER | 135D11006/1 |
| ENGINE TYPE | MTU 538 ENGINE |

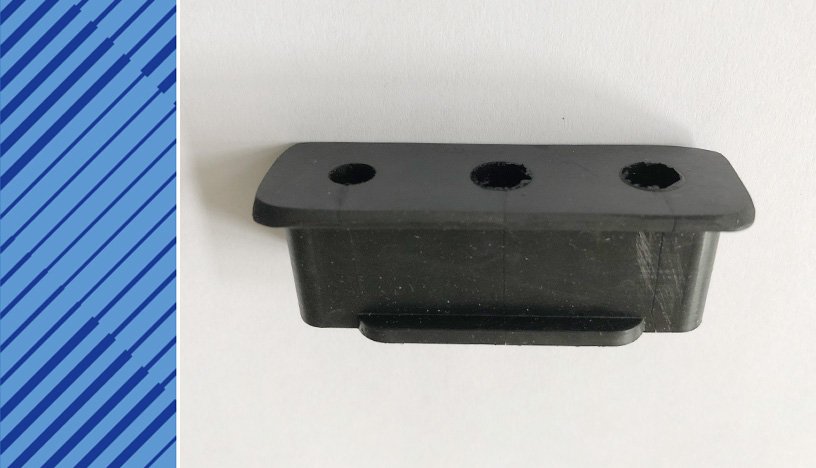

| DESCRIPTION | RUBBER SEAL |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.018 KG |
| HS CODE | 40169997 |
| NATO-VERS.-NR. | 5325121254013 |
| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 01 | EXHAUST MANIFOLD | 135M10731/1 | 001 |
| 02 | FUEL SUPPLY LINE | 135M10701/1 | 006 |
| 03 | RUBBER GROMMET | 135D01012/1 | 036 |
| 04 | LIFTING STIRRUP | 135M10501/1 | 012 |
| 05 | SCREW | 000933006089 | 024 |
| 06 | SPRING WASHER | 000137006205 | 024 |
| 07 | GROMMET | 135D11006/1 | 012 |
| 08 | COMPENSATING LINE | 135M10708/2 | 002 |
| 09 | FUEL RETURN LINE | 135M11701/2 | 006 |
| 10 | EXHAUST MANIFOLD | 135M11741/1 | 001 |
| 11 | LEAK-OFF OIL LINE | 135M12701/1 | 006 |
| 12 | LEAK-OFF FUEL LINE | 135M12731/1 | 001 |
| 13Z | EXHAUST MANIFOLD | 135M10732/1 | 001 |
| 14Z | FUEL SUPPLY LINE | 135M10703/1 | 006 |
| 15Z | FUEL RETURN LINE | 135M11703/2 | 006 |
| 16Z | EXHAUST MANIFOLD | 135M11742/1 | 001 |
| 17Z | FUEL PIPELINE | 135M12703/1 | 006 |
| 18Z | LEAK-OFF FUEL LINE | 135M12732/1 | 001 |
| Make | Year of construction | Power KW | U/MIN |
|---|---|---|---|
| 12V 538 TB92 | N/A | 2250 | 1900 |
| 20V 538 TB92 | N/A | 3000 | 1900 |
| 16V 538 TB93 | N/A | 3300 | 1900 |
| 20V 538 TB93 | N/A | 4120 | 1900 |
| 12V 538 TB8 | MD 656 | 1655 | 1800 |
| 12V 538 TB9 | MD 657 | 1986 | 1900 |
| 20V 538 TB1 | MD 1080 | 2096 | 1600 |
| 20V 538 TB6 | MD 1080 | 1839 | 1500 |
| 20V 538 TB7 | MC 1080/30 | 2390 | 1720 |
| 16V 538 TB9 | MD 872 | 2648 | 1900 |
