PART NUMBER 135D08007/1
ENGINE TYPE MTU 538 ENGINE
DESCRIPTION SEALING RING
DIMENSIONS N/A
UNIT WEIGHT 0.009 KG
HS CODE 40169300
NATO-VERS.-NR. 5330121347386
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 538 ENGINE PARTS 135D08007/1 SEALING RING

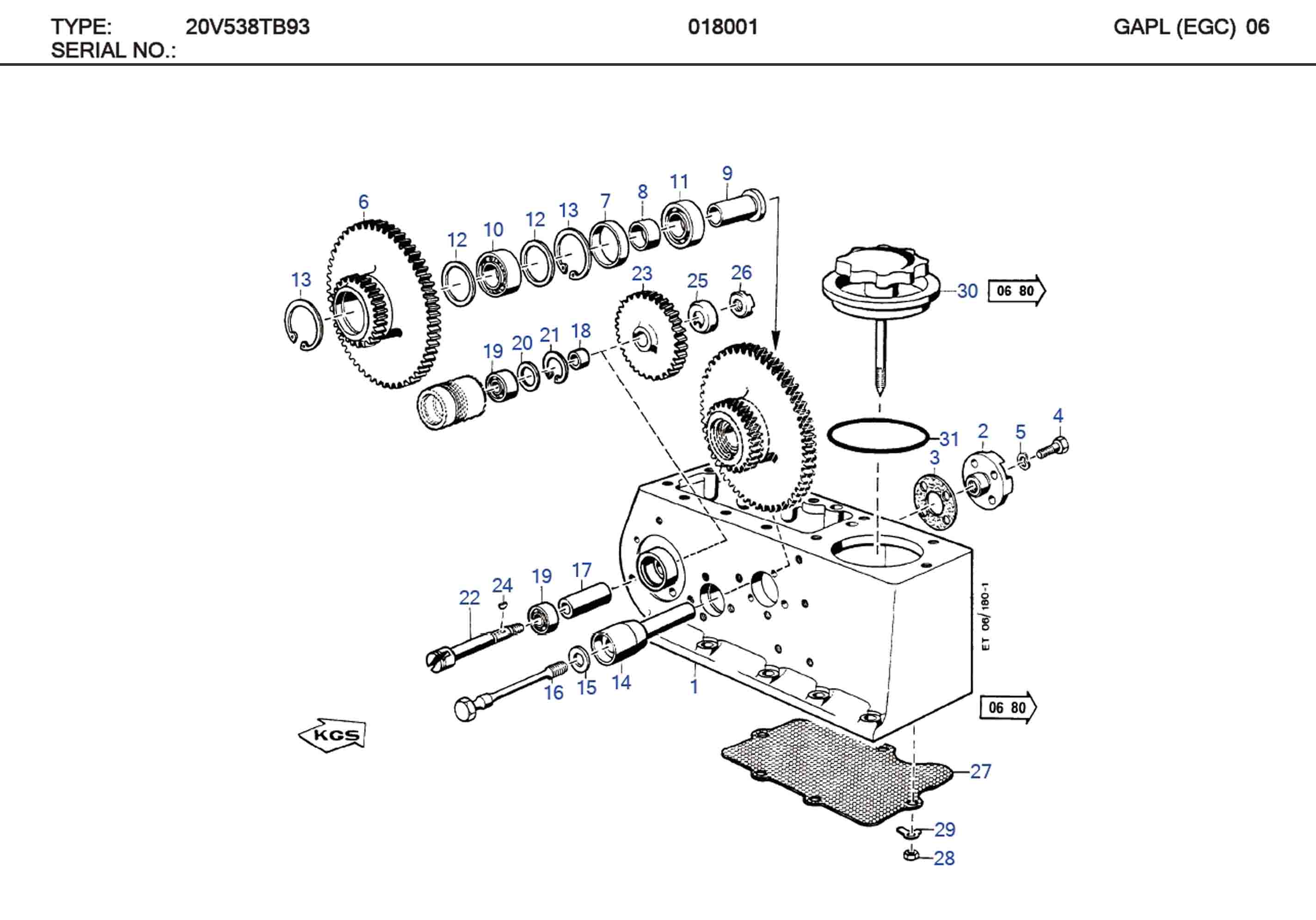

MTU 135D08007/1 Technical Engineering Exploded View

MTU 538 ENGINE PARTS 135D08007/1 SEALING RING

C/N Description Part-Number Qty
000 DRIVE 5622300123 001
01 DRIVE HOUSING 137D04705/1 001
02 THRUST BEARING FLANGE 136D04006/1 001
03 GASKET 5620510480 001
04 SCREW 000933008114 004
05 SPRING WASHER 000137008203 004
06 IDLER GEAR 136D04703/1 001
07 INTERMEDIATE RING 136D04018/1 001
08 INTERMEDIATE RING 136D04017/1 001
09 BEARING BUSHING 136D04019/1 001
10 GROOVE BALL BEARING 200625906207 001
11 CYLINDRICAL ROLLER BEARING 205412202001 001
12 WASHER 717115042101 002
13 SNAP RING 000472052000 002
14 BEARING PIN 136D04020/1 001
15 COVER DISC 000125015016 001
16 STRESS BOLT 700209014206 001
17 SPACER BUSHING 137D04003/1 001
18 SPACER BUSHING 136D04009/1 001
19 GROOVE BALL BEARING 200625906204 002
20 WASHER 717115025102 001
21 SNAP RING 000472035000 001
22 OUTPUT SHAFT 137D04002/1 001
23 DRIVE GEAR 136D04013/2 001
24 WOODRUFF KEY 006888004000 001
25 LOCKING RING 5619940143 001
26 SLOTTED NUT 5619900160 001
27 FILTERING SCREEN 136D04005/1 001
28 HEX NUT 000934005004 006
29 TAB WASHER 700292005300 006
30 RIVET NUT 135D08704/1 001
31 SEALING RING 135D08007/1 001

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
