PART NUMBER 806A06020/1
ENGINE TYPE MTU 538 ENGINE
DESCRIPTION SEALING RING
DIMENSIONS N/A
UNIT WEIGHT 0.008 KG
HS CODE 40169300
NATO-VERS.-NR. 5330123367051
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

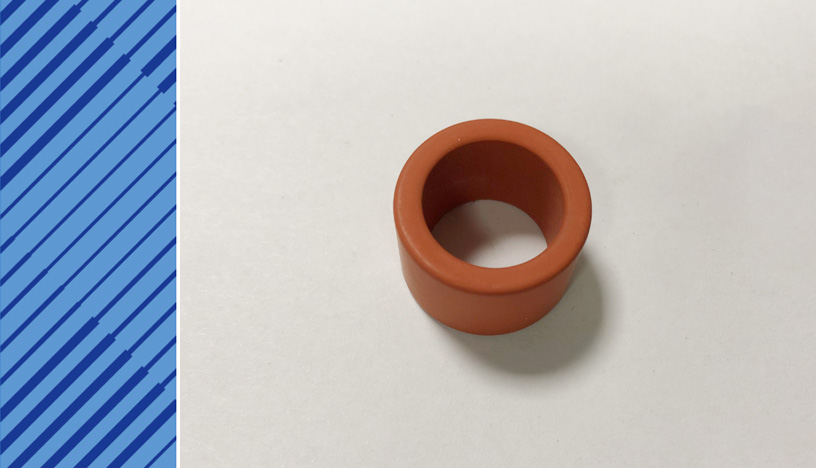

MTU 538 ENGINE PARTS 806A06020/1 SEALING RING

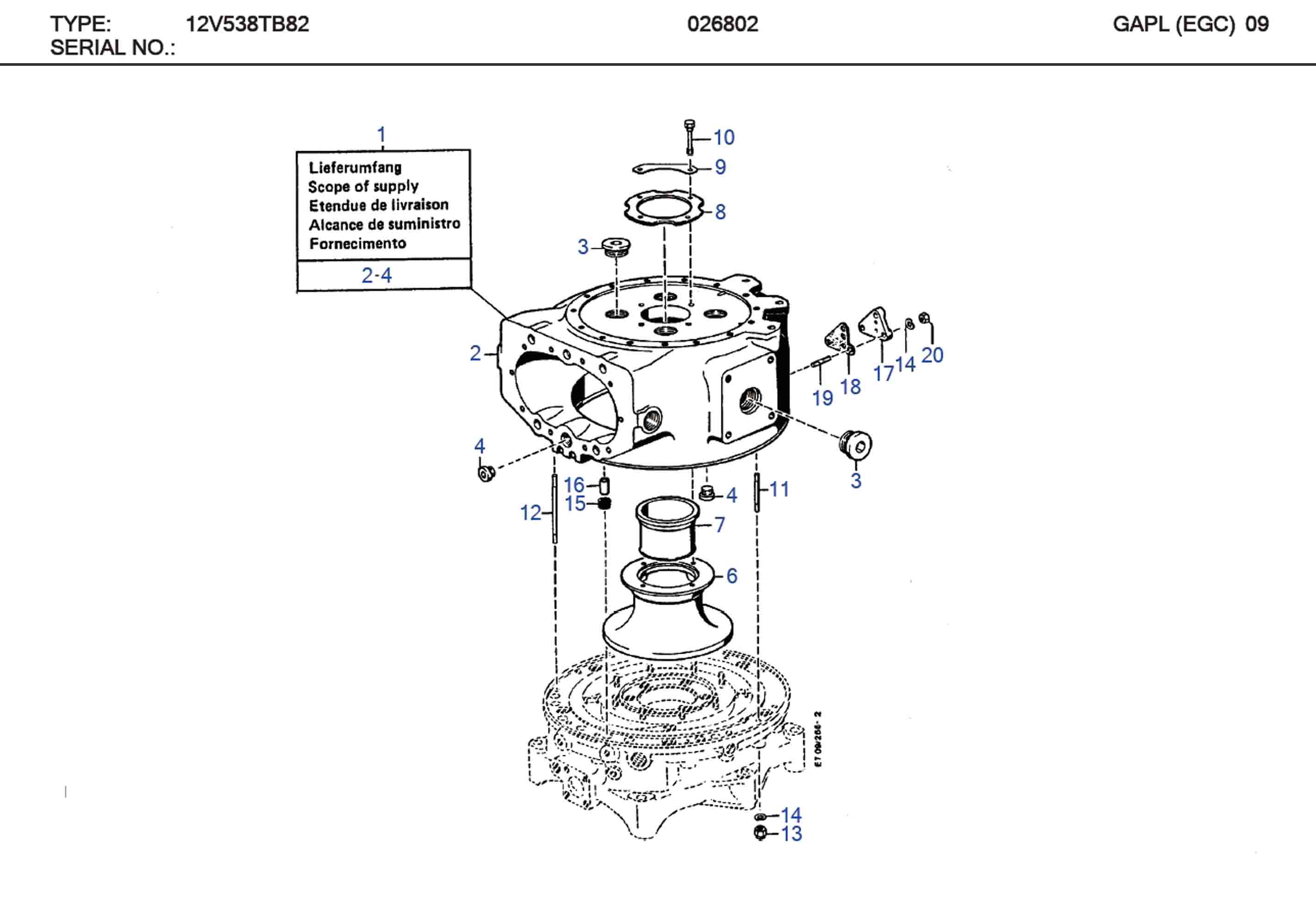

MTU 806A06020/1 Technical Engineering Exploded View

MTU 538 ENGINE PARTS 806A06020/1 SEALING RING

C/N Description Part-Number Qty
01 OUTLET HOUSING 5030801330 001
01A OUTLET HOUSING 5030810701 001
02 OUTLET HOUSING 5030810501 001
02A THREAD INSERT 900421012005 015
02B THREAD INSERT 900421012003 008
02C THREAD INSERT 900421010008 001
03 PLUG 200908048000 009
04 PLUG 200908024000 005
06 BELL HOUSING 5030801530 001
07 CABLE CONDUIT 5030800053 001
08 COVER RING 5030810073 001
09 TAB WASHER 5039940025 002
10 DRAIN PLUG 5039900819 004
11 STUD 000835010113 004
12 STUD 000835010110 008
13 RIVET NUT 999900010000 012
14 SPRING WASHER 000137010202 015
15 SEALING RING 806A06020/1 010
16 TRANSVERSE EXHAUST PIPE 806A06004/1 010
17 END COVER 806A06707/1 001
18 GASKET 5030210580 001
19 STUD 000835010067 003
20 HEX NUT 000934010005 003

806A06020/1 SUPERSEDED PART AND EFFECTIVE DATE

806A06020/1 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 806A06020/1 806A06005/1 N/A
02 806A06020/1 806A06020/1 1992/11/01

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
