C/N | Description | Part-Number | Qty |
---|---|---|---|

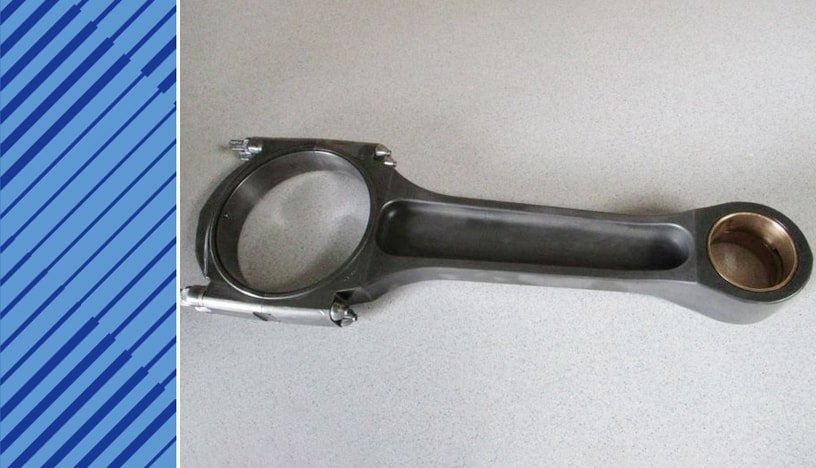

000 | CONROD | 5600300220 | 001 |
01 | CONROD | 135B10001/4B | 001 |
02 | BLADE CONROD CAP | 5600380202 | 001 |
03 | CONROD BOLT | 135B10003/1 | 004 |
04 | WASHER | 135B10004/1 | 004 |
05 | NUT | 135B10005/1 | 004 |
06 | CONROD BUSHING SIZE 0 | 5610380850 | 001 |
06A | CONROD BUSHING SIZE 1 | 5610380950 | 000 |
06B | CONROD BUSHING SIZE 2 | 5610381050 | 000 |
06C | CONROD BEARING SIZE 3 | 5610381150 | 000 |
07 | DOWEL PIN | 000007003312 | 004 |
08 | DOWEL PIN | 135B09007/2 | 001 |
09 | BLADE CONROD BEARING | 5600302760 | 001 |
09A | BLADE CONROD BEARING | 5600302860 | 000 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 5610300520 | 135B09041/2 | N/A |
02 | 5610300520 | 135B09781/2 | 1998/08/01 |
03 | 5610300520 | 135B09041/3 | 1998/09/01 |
04 | 5610300520 | 5610300320/01 | 1998/10/01 |
05 | 5610300520 | 5610300320/02 | 1998/11/01 |
06 | 5610300520 | 5610300320/03 | 1998/12/01 |
07 | 5610300520 | 135B09012/6 | 1999/01/01 |
08 | 5610300520 | 135B09041/3B | 1999/02/01 |
09 | 5610300520 | 5610300520 | 1999/03/01 |
Make | Year of construction | Power KW | U/MIN |
---|---|---|---|
12V 538 TB92 | N/A | 2250 | 1900 |
20V 538 TB92 | N/A | 3000 | 1900 |
16V 538 TB93 | N/A | 3300 | 1900 |
20V 538 TB93 | N/A | 4120 | 1900 |
12V 538 TB8 | MD 656 | 1655 | 1800 |
12V 538 TB9 | MD 657 | 1986 | 1900 |
20V 538 TB1 | MD 1080 | 2096 | 1600 |
20V 538 TB6 | MD 1080 | 1839 | 1500 |
20V 538 TB7 | MC 1080/30 | 2390 | 1720 |
16V 538 TB9 | MD 872 | 2648 | 1900 |
