PART NUMBER 806B01035/2
ENGINE TYPE MTU 538 ENGINE
DESCRIPTION SPACER RING
DIMENSIONS N/A
UNIT WEIGHT 0.065 KG
HS CODE 73182100
NATO-VERS.-NR. 3110123402850
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

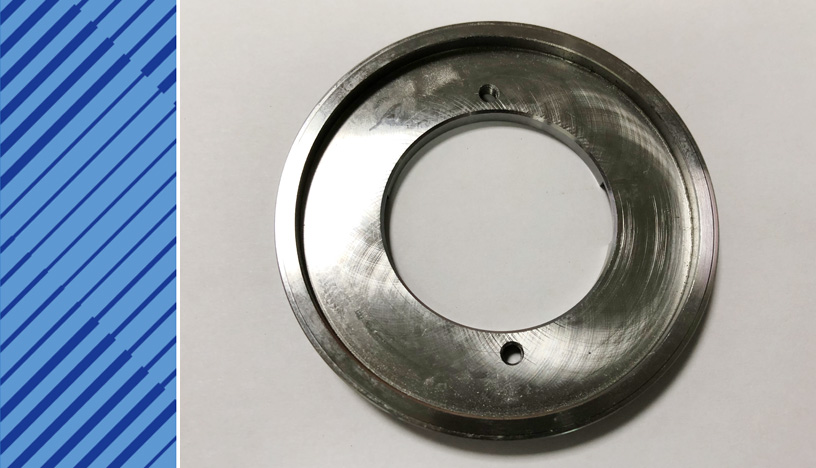

MTU 538 ENGINE PARTS 806B01035/2 SPACER RING

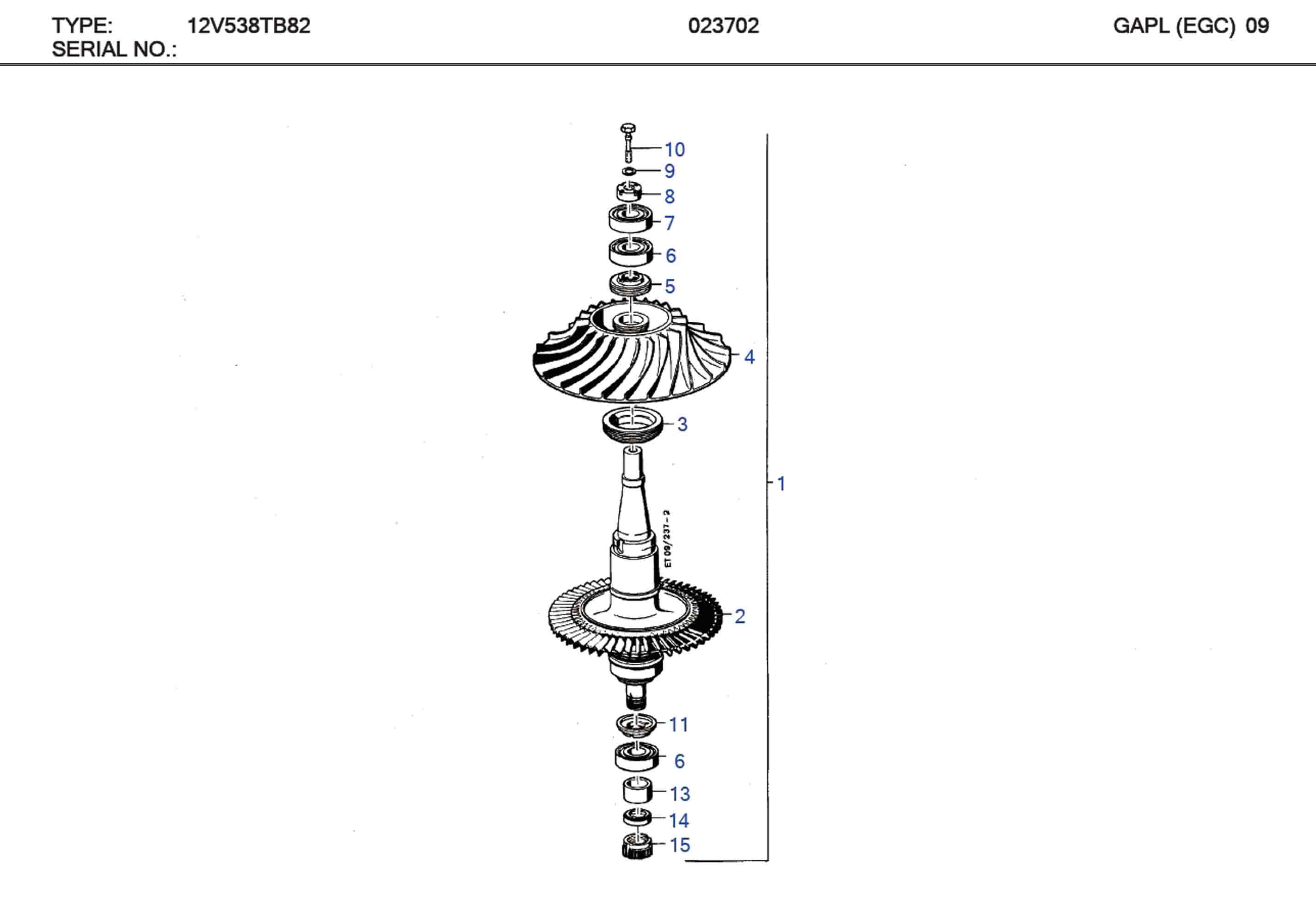

MTU 806B01035/2 Technical Engineering Exploded View

MTU 538 ENGINE PARTS 806B01035/2 SPACER RING

C/N Description Part-Number Qty
01 BALANCING GROUP 5030803521 001
02 TURBINE ROTOR 5030803821 001
03 SPACER BUSHING 5030250650 001
04 COMPRESSOR WHEEL 5030253201 001
05 LABYRINTH RING 5030250135 001
06 CYLINDRICAL ROLLER BEARING 806B02709/2 002
07 DEEP-GROOVE BALL BEARG 806B02703/1 001
08 THRUST WASHER 5030850076 001
09 ADJUSTING WASHER 000988016012 001
10 STRESS BOLT 700209014201 001
11 SPACER RING 806B01035/2 001
13 SPACER BUSHING 5030250450 001
14 TAB WASHER 806B01033/1 001
15 SLOTTED NUT 806B01032/1 001

806B01035/2 SUPERSEDED PART AND EFFECTIVE DATE

806B01035/2 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 806B01035/2 806B01035/1 N/A
02 806B01035/2 806B01029/3 1998/07/01
03 806B01035/2 806B01003/1 1998/08/01
04 806B01035/2 806B01035/2 1998/09/01

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
