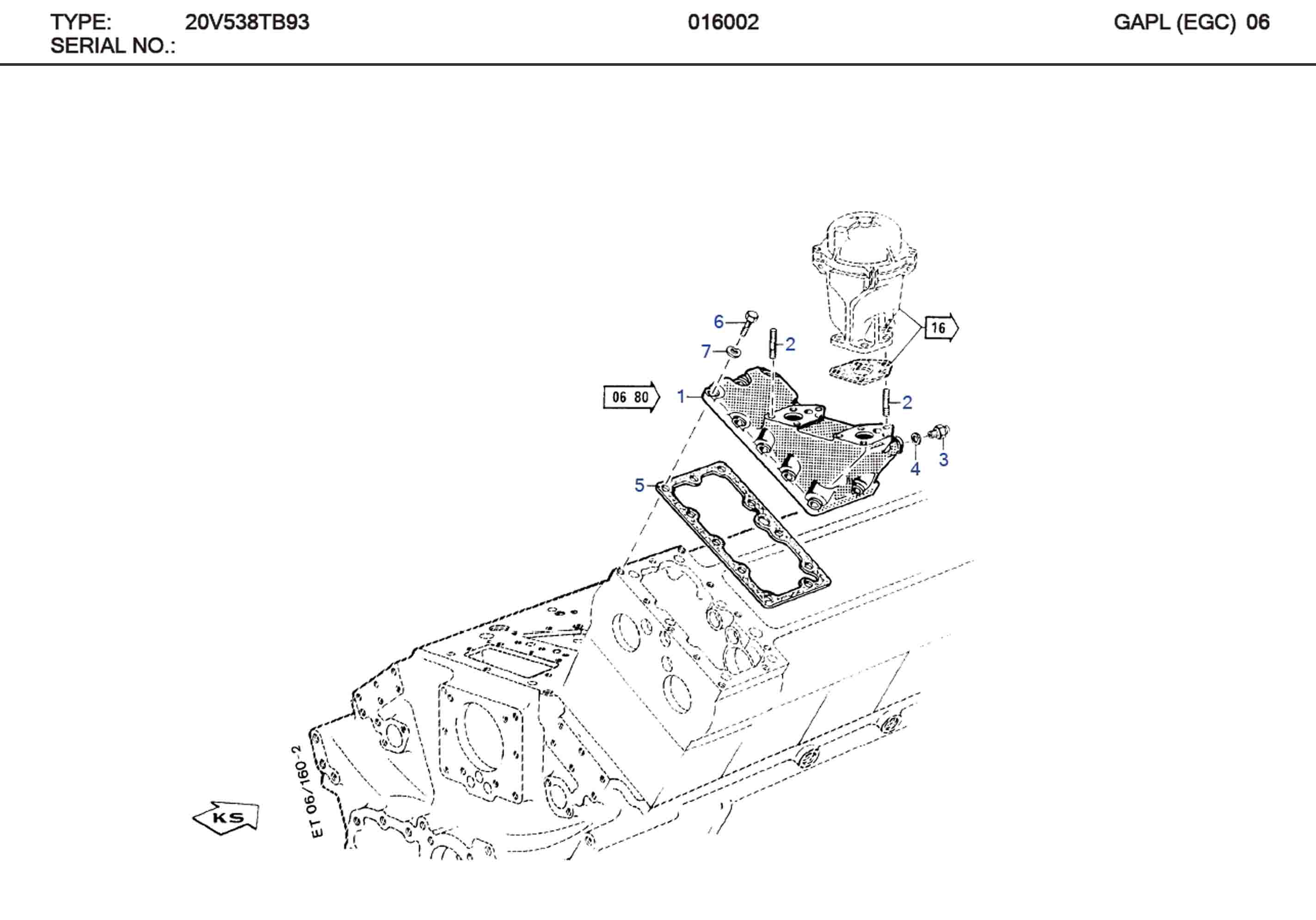

C/N | Description | Part-Number | Qty |
---|---|---|---|
01 | END COVER | 137D29701/1 | 001 |
02 | STUD | 000835010067 | 010 |
03 | EXHAUST PIPE NECK | 915013016002 | 001 |
04 | SEALING RING | 007603022102 | 001 |

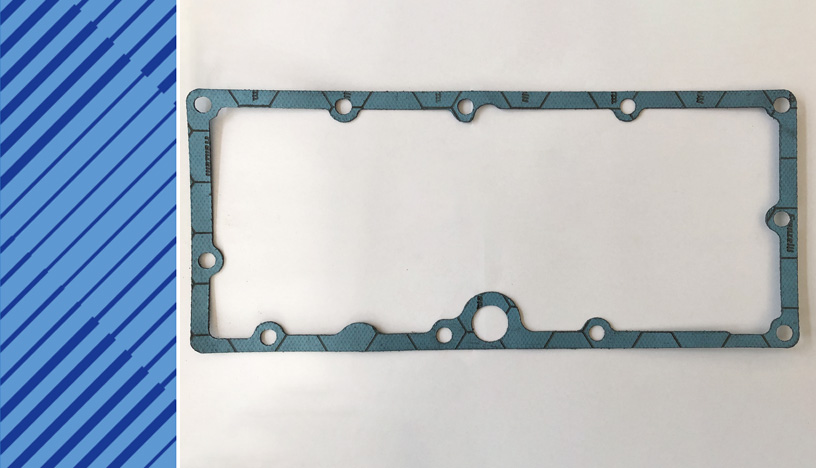

05 | GASKET | 5600510580 | 001 |
06 | SCREW | 304017008083 | 010 |
07 | SPRING WASHER | 000137008203 | 011 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 5600510580 | 135D08002/1 | N/A |
02 | 5600510580 | 5600510580 | 1990/04/01 |
Make | Year of construction | Power KW | U/MIN |
---|---|---|---|
12V 538 TB92 | N/A | 2250 | 1900 |
20V 538 TB92 | N/A | 3000 | 1900 |
16V 538 TB93 | N/A | 3300 | 1900 |
20V 538 TB93 | N/A | 4120 | 1900 |
12V 538 TB8 | MD 656 | 1655 | 1800 |
12V 538 TB9 | MD 657 | 1986 | 1900 |
20V 538 TB1 | MD 1080 | 2096 | 1600 |
20V 538 TB6 | MD 1080 | 1839 | 1500 |
20V 538 TB7 | MC 1080/30 | 2390 | 1720 |
16V 538 TB9 | MD 872 | 2648 | 1900 |
