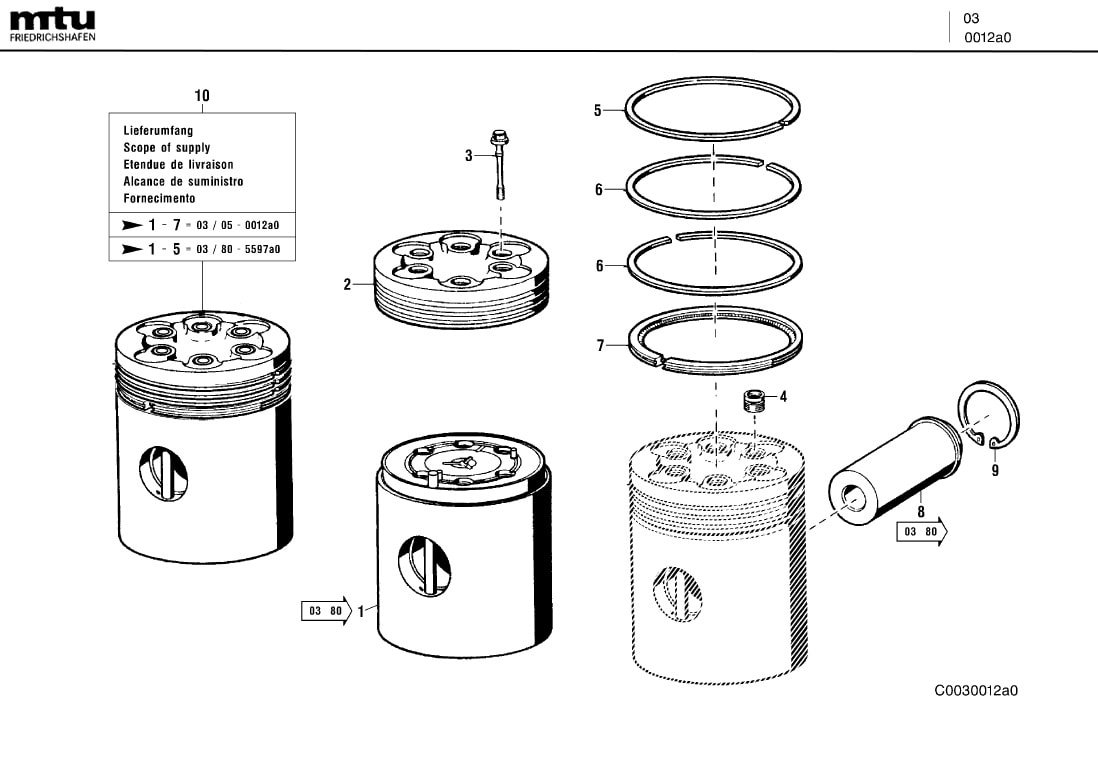

MTU 135B14008/1 Technical Engineering Exploded View

MTU 135B14008/1 Technical Engineering Exploded View

MTU 135B14008/1 Technical Engineering Exploded View

C/N Description Part-Number Qty
01 PISTON SKIRT 5600301817 016
02 PISTON CROWN 5600370925 016
03 SCREW 135B14008/1 096
04 CLOSURE CAP 135B14009/4 096
05 RECTANGULAR SECTION RING 0020373819 016
06 TAPERFACE COMPR RING 90' 0030373719 032
07 OIL CONTROL RING 0080373418 016
08 PISTON PIN 5600300392 016
09 SNAP RING 000472072000 016
10 PISTON 8590300188 000

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 538 TB92 N/A 2250 1900
20V 538 TB92 N/A 3000 1900
16V 538 TB93 N/A 3300 1900
20V 538 TB93 N/A 4120 1900
12V 538 TB8 MD 656 1655 1800
12V 538 TB9 MD 657 1986 1900
20V 538 TB1 MD 1080 2096 1600
20V 538 TB6 MD 1080 1839 1500
20V 538 TB7 MC 1080/30 2390 1720
16V 538 TB9 MD 872 2648 1900
