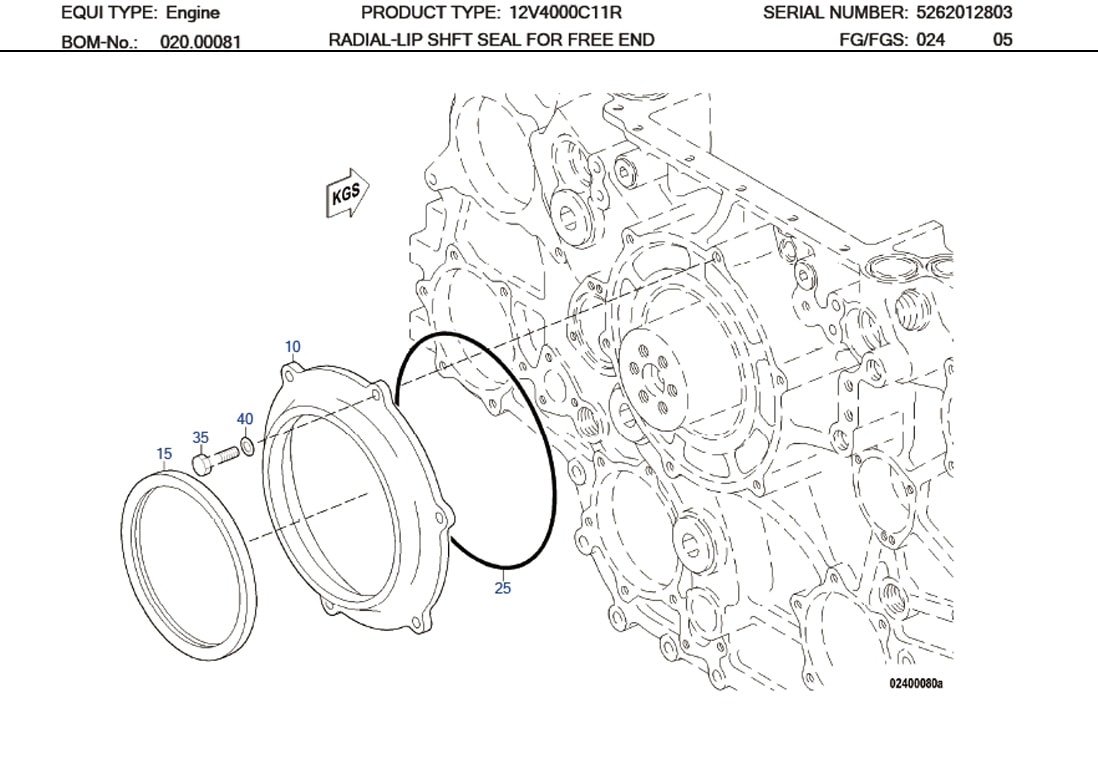

C/N | Description | Part-Number | Qty |
---|---|---|---|
10 | CARRIER AUX PTO CRANKSHAFT SEAL | 5240320258 | 001 |

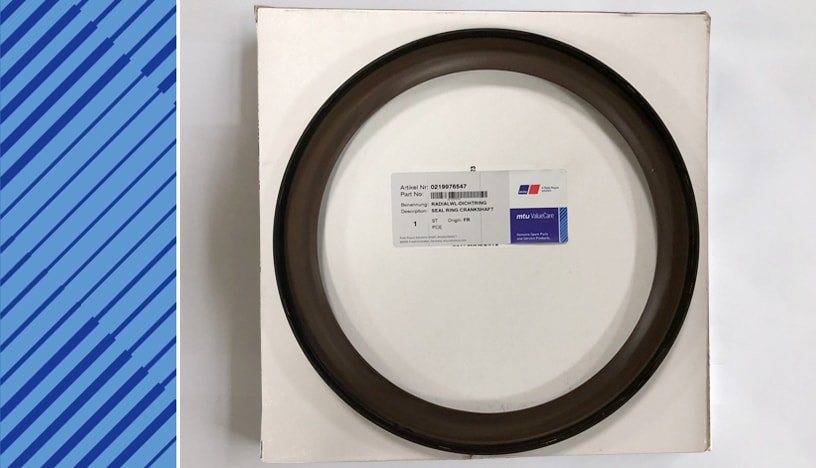

15 | SEAL RING CRANKSHAFT FRONT AUX PTO | 0219976547 | 001 |
25 | O-RING | 700429290000 | 001 |
55 | HEX SCREW | 000933012077 | 006 |
40 | WASHER | 000125013012 | 006 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | X52499101064 | 0219976547 | N/A |
02 | X52499101064 | X52499101064 | 2022/04/09 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 4000 R43 | 1000 | 1800 | 170/210 (6.7/8.3) |
8V 4000 R43L | 1200 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43L | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43R | 2000 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43 | 2200 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43L | 2400 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43 | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43L | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63R | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63 | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63L | 3300 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R54 | 1800 | 1800 | 130/150 (5.1/5.9) |
16V 4000 M73L | 2832 | 2050 | 170/190 (6.7/7.5) |
16V 4000 R54 | 2400 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R64 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R84 | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R64 | 2000 | 1800 | 170/210 (6.7/8.3) |
