MTU 4000 PARTS | X00004135 | GASKET

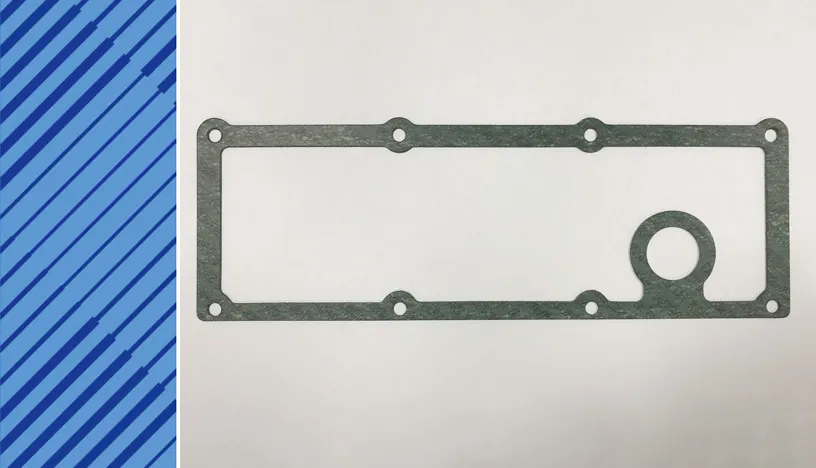

X00004135 GASKET

Other
OtherX52601600011 GASKETX59407700021 ADAPTATEUR P. CONDUITE HPX59499100015 HOSE FOR AIR COMPRESSORX59499100014 HOSE FOR AIR COMPRESSOREX59403800070/42 CONROD0005357333 SPEED SENSOR0005357833 SPEED SENSORX00E50207196 PRESSURE SENSORX00E50207217 PRESSURE SENSOR0005358133 SPEED SENSOR5241420057 SEALING RINGX54707700072 RELIEF VALVE FOR 4-CYL HP PUMP0005357633 SPEED SENSORX59417200010 STARTER ELECTRIC5249900705 BOLT HEX FLG11506101 NUT23524783 SEAL5244920181 SEALING RING5240382550 BUSHING CONROD SIZE 0XP59612300047 INSULATIONX54920200040/87 WATER PUMP HIGH-TEMPX52499100022 GASKETX54999100010 GASKETX59399100031 GASKETX00008172 GROMMETX59399100033 GROMMETX59414100022 RESTRICTOR5240111480 GASKET5241880180 GASKETX00038531 HOSE TURBO OIL SUPPL000125013012 WASHER0001800015 PRESSURE REDUCING VA LVE ASSYX52408100007 LINK915005020001 SEALING CONE000912010014 BOLT HEX SOC HD700223010000 BOLT BANJO A125319970245 SEALING RING000908030002 THREAD PLUG5249900605 BOLT HEX CAPXP52799101135 SEAL RING0000160119 SEALING RING5240160153 TUBE INJECTORXP56918300055 OVERFLOW VALVE0005357533 SPEED SENSORX59407700023 HP FUEL LINE5240780824 CONN FUEL RAIL REARX52808100014 FUEL DELIVERY PUMPX52404200043 GASKET FOR CYLINDER HEAD0035352231 PRESSURE SENSOR0049976736 VALVE DRAINX00007116 V-BAND CLAMPX59399100141 BELLOWSX00E50207213 PRESSURE SENSORX57508300091 FUEL FILTER SPIN-ON5240530830 VALVE GUIDEX52404200010 VALVE GUIDEEX52407500064 INJECTORX54799101554 NON-RETURN VALVE WITH BAFFLEX52414700025 INSULATING MAT FOR EXH PIPEX52414100123 GASKET F.EXHAUST MANIFOLDX52412400138 GASKET0090374419 KEYSTONE COMPR RING5260160153 SLEEVEX00011779 GASKETXP52414800015 SEALING RINGX00E50203606/S0002 KNOCKING MODULEX52404200071 GASKET FOR CYLINDER HEADS-20056163 SEALING RINGX52607700009 ADAPTER JACKETEDEX59403700072 PISTONX59403800071/42 CONNECTING ROD5241420780 GASKET23540304/A1 GASKET KIT5240384210 CONROD BEARING SIZE 0-1X00043219 CONROD BEARING SIZE 0-15240332730 CRANKSHAFT BEARING DRIVINGX00016599 BEARING BUSHINGX59301300049 CYLINDER LINER STAGE 0XP59501800123 FILTER ELEMENT5260200305 HOUSING+ROTATING ASM5272010505 SHAFT WAT PUMPX59607700020 ADAPTER FOR HP LINEEX00035690 PISTONEX00008371 PISTONX00E50201372 TEMPERATURE SENSORX52404500056 SPARKPLUGX00E50200176 CONNECTION INTERFACE0001424957 RING EXH MANIFX52408300025 FUEL HAND PUMP5240980281 HOSEX52420300037 THERMAL ACTUATOR5240333407 BEARING THRUST/0-1/LO/SPT5240332608 BEARING THRUST/0-1/UP/RIL5110850960 PISTON RING X52499100815 4/2-WAY SOL. VALVEXP52712100006 FILTER ELEMENTXP52712100005 FILTER ELEMENTXP52712100003 FILTER ELEMENTXP52712100002 FILTER ELEMENT5205304069 SPEED TRANSMITTERX52421300004 ALTERNATOR0219976547 SEAL RING CRANKSHAFT FRONT0219976647 SEAL RING CRANKSHAFT REARXP59408300054 FILTER CARTRIDGEXP59400600004 GASKET KITXP52718300064 GASKET KITXP52718300065 CIRCLIP KITXP52718300060 PAPER INSERTX52808100004 FUEL DELIVERY PUMP8691840027 ROTOR COMPLETE5240530905 EXHAUST VALVE5240531101 INLET VALVE5240550550 BUSHINGX52499100259 ADJUSTING SCREWX52405400013 PUSHROD0000530926 VALVE KEEPER WEDGE5240530120 VALVE SPRING OUTER5240530122 VALVE SPRING INNER5240530805 EXHAUST VALVEX52404100226 INLET VALVEX52404200037 GASKET FOR CYLINDER HEADX52404200052 SEAL RING5240380471 CONROD BOLT0120373618 OIL CONTROL RING0090375019 TAPER FACE COMP RINGX00009806 RECTANGLR-SECT RING5240336702 CRANKSHAFT BEARING SIZE 0-15110804420 TURBINE WHEELX52403100003 CRANKSHAFT BEARING SIZE 0-15240336602 CRANKSHAFT BEARING LOWER HALFX00016024 CRANKSHAFT BEARING SIZE 0-05240332630 CRANKSHAFT BEARING AUX PTO END5240111380 GASKETX00027830 CYLINDER LINER SIZE 0 C235240510110 BEARING CAMSHAFT STD23540455 CENTRIFUGAL OIL FILTER ASM5240114210 CYLINDER LINER SIZE 0X59620600007 THERMAL ACTUATORX59699101095 BANJO SCREWX59620700004 SEAL CARRIERXP00A36400005 FILTER ELEMENTX52407800004 FLOW RESTRICT VALVE0299976748 O-RINGX52499100774 SUPPORT PLATEX52420200075 ROTARY SEALX51699100327 SHAFT SEAL RINGXP59420700027 IMPELLERX59407700014 ADAPTER5272010153 SPACER SLEEVEX00040012 SPEED SENSORX59610100061 BEARING BODY5110251976 WASHERX59610100101 THRUST BEARING8695860572 GASKET KITXP59420300091 SEAL RING5241870380 GASKETX52414100132 GASKET FOR EXHAUST PIPEX56912300043 ACTUATING CYLINDERX59420200235 RESTRICTORX59420200234 RESTRICTORX59420200233 RESTRICTORX59420200238 RESTRICTOR5240384110 CONROD BEARING UPPER HALFXP58420400009 GASKETX00041552 COOLER PLATE X52403800001 CONROD BEARINGXP52618300032 OIL FILTER ELEMENTX00008369 PISTON5410180233 DIAPHRAGM700429038003 O-RINGXP59307500002 O-RINGX52405500190 PROFILE GASKET F CYLINDX00044065 SLEEVE RUBBER
PART NUMBER X00004135
ENGINE TYPE MTU 4000 ENGINE
DESCRIPTION GASKET
DIMENSIONS N/A
UNIT WEIGHT 0.040 KG
HS CODE 40169300
NATO-VERS.-NR. 5330123855793
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 4000 DIESEL ENGINE PARTS X00004135 GASKET

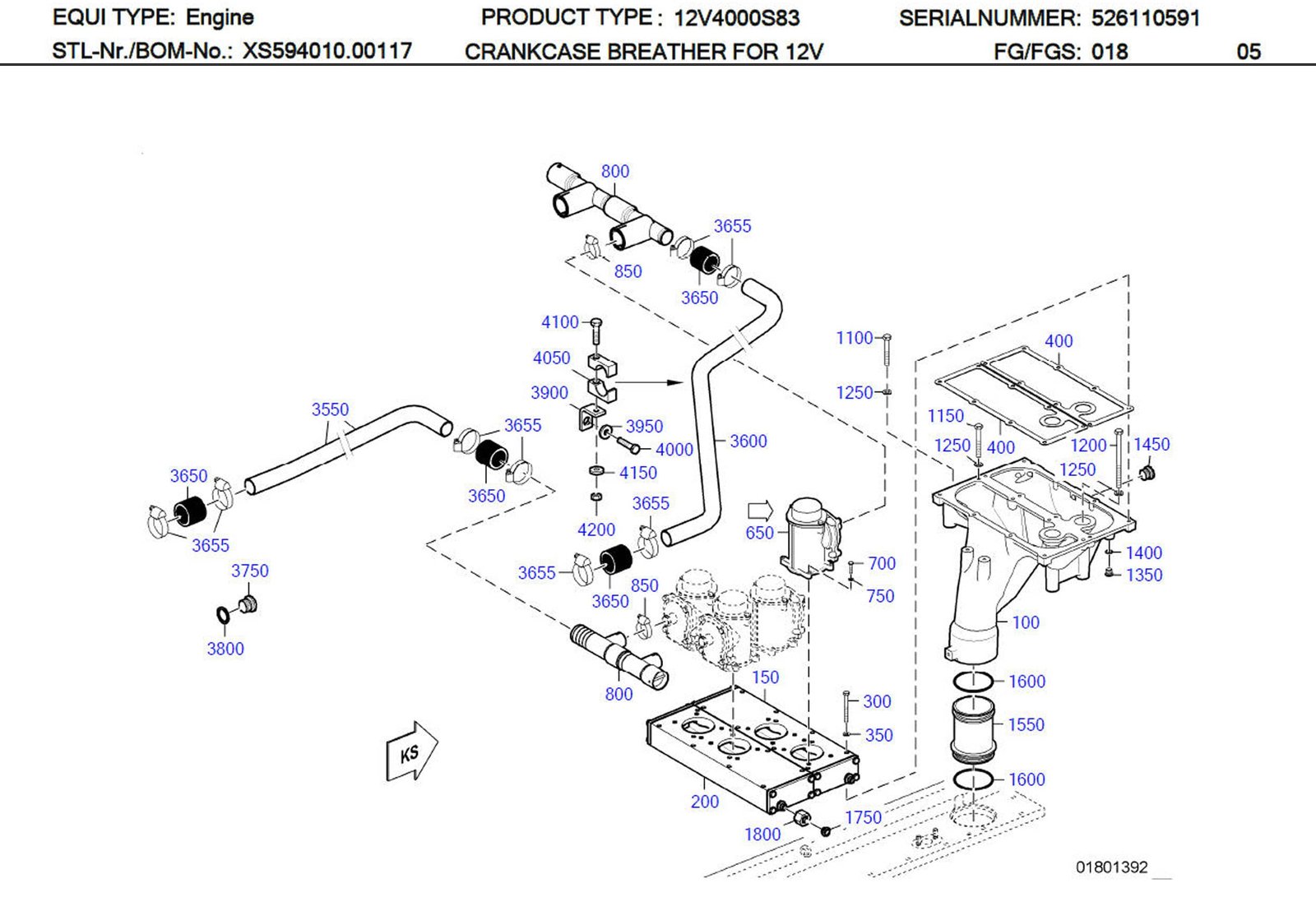

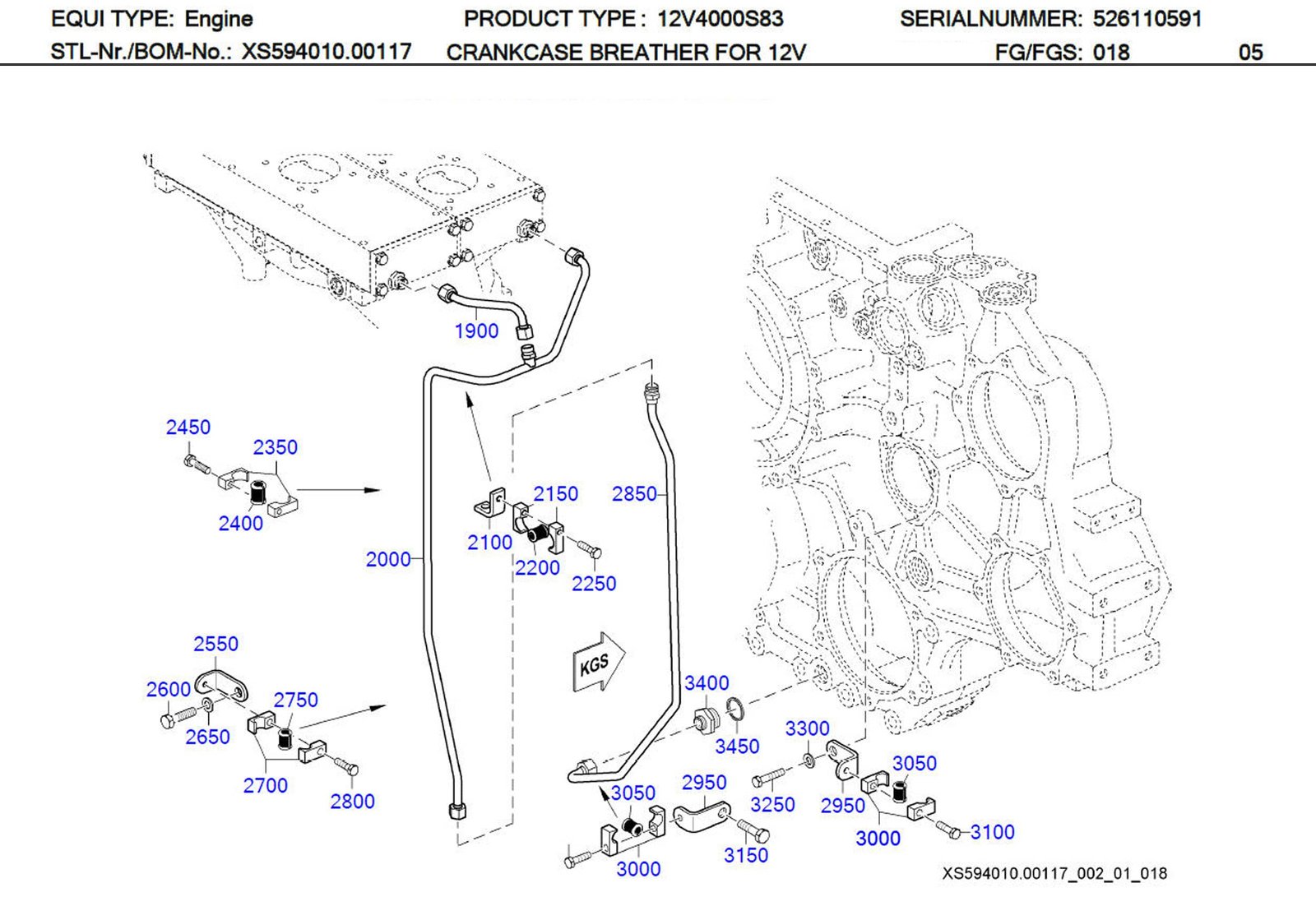

MTU X00004135 Technical Engineering Exploded View MTU 700325015100 Technical Engineering Exploded View

MTU 4000 DIESEL ENGINE PARTS X00004135 GASKET

C/N Description Part-Number Qty
100 VENT HOUSING X52701800063 001
150 SUPPORT F OIL SEPARATOR X52401800041 001
200 SUPPORT F OIL SEPARATOR X52401800041 001
300 HEX SCREW 000000004389 016
350 WASHER 000125008427 016
400 GASKET X00004135 002
650 OIL SEPARATOR 0000187135 004
700 HEX SCREW 304017006063 016
750 WASHER 000125006431 016
800 MANIFOLD X59401800147 002
850 CLAMP 000000000668 004
1100 HEX SCREW 000000000906 001
1150 HEX SCREW 204017010026 001
1200 HEX SCREW 000000003323 002
1250 WASHER 000125010524 003
1350 SCREW PLUG 000908014001 003
1400 SEAL RING 007603014102 003
1450 THREAD PLUG 735210014000 001
1550 TUBE PLUG-IN-03 X00003083 001
1600 O-RING 700429085002 002
1750 NUT 915001008003 002
1800 CONE SEALING 10 915005008001 002
1900 OIL LINE X52601800020 001
2000 TUBE ASM OIL LINE 10 21.065 X52601800019 001
2100 RETAINER 5551870640 001
2150 CLAMP HALF TUBE 1/1 D9-15 700325015100 002
2200 GROMMET 700327010000 001
2250 HEX SCREW 304017008083 001
2350 CLAMP HALF TUBE 1/1 D9-15 700325015100 002
2400 GROMMET 700327010000 001
2450 HEX SCREW 304017008083 001
2550 RETAINER 5315461043 001
2600 HEX SCREW 304017008079 001
2650 WASHER 007349008002 001
2700 CLAMP HALF TUBE 1/1 D9-15 700325015100 002
2750 GROMMET 700327010000 001
2800 HEX SCREW 304017008083 001
2850 TUBE ASM OIL GEAR CA SE HSG 790.780 X00026673 001
2950 RETAINER 5315461043 002
3000 CLAMP HALF TUBE 1/1 D9-15 700325015100 004
3050 GROMMET 700327010000 002
3100 HEX SCREW 304017008083 002
3150 HEX SCREW 000000003381 001
3250 HEX SCREW 204014010001 001
3300 SPACER 735151010100 001
3400 CONNECTOR 16/10 915007016000 001
3500 COPPER SEALING RING 007603026104 001
3550 VENT LINE F.CRANKC.VENT.LEFT X59401800081 001
3600 VENT LINE F.CRANKC.VENT.RIGHT X59401800149 001
3650 RUBBER SLEEVE X59499100561/88 004
3655 CLAMP 000000000668 008
3750 PLUG 000908020000 002
3800 WASHER A COP 007603020103 002
3900 RETAINER X52699100581 001
3950 WASHER 007349008002 001
4000 HEX SCREW 304017008084 001
4050 PIPE HALF-CLAMP X00005790 002
4100 HEX SCREW 304017008088 001
4150 WASHER 007349008002 001
4200 HEX NUT 304032008014 001

MTU 4000 Series Engines: Oilfield Models and Specifications

MTU 4000 S83 Family

MTU 4000 Series Engines: Oilfield Models and Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
12V 4000 S83 1680 1900 170/210 (6.7/8.3)
12V 4000 S83L 1865 1900 170/210 (6.7/8.3)
16V 4000 S83 2237 1900 170/210 (6.7/8.3)
16V 4000 S83L 2461 1900 170/210 (6.7/8.3)
12V 4000 S81 1678 1900 165/190 (6.5/7.5)
16V 4000 S81 2237 1900 165/190 (6.5/7.5)
12V 4000 T95R 1678 1900 170/210 (6.7/8.3)
12V 4000 T95 1864 1900 170/210 (6.7/8.3)
12V 4000 T95L 1939 1900 170/210 (6.7/8.3)
16V 4000 T95 2237 1900 170/210 (6.7/8.3)
12V 4000 S23 1425 1800 170/210 (6.7/8.3)
16V 4000 S23 1865 1800 170/210 (6.7/8.3)
20V 4000 S53L 3000 1800 170/210 (6.7/8.3)
12V 4000 P63 1350 1500 170/210 (6.7/8.3)
16V 4000 P63 1800 1500 170/210 (6.7/8.3)
20V 4000 P63 2245 1500 170/210 (6.7/8.3)
20V 4000 P83 2425 1800 170/210 (6.7/8.3)
