| PART NUMBER | X52404100226 |
| ENGINE TYPE | MTU 4000 ENGINE |

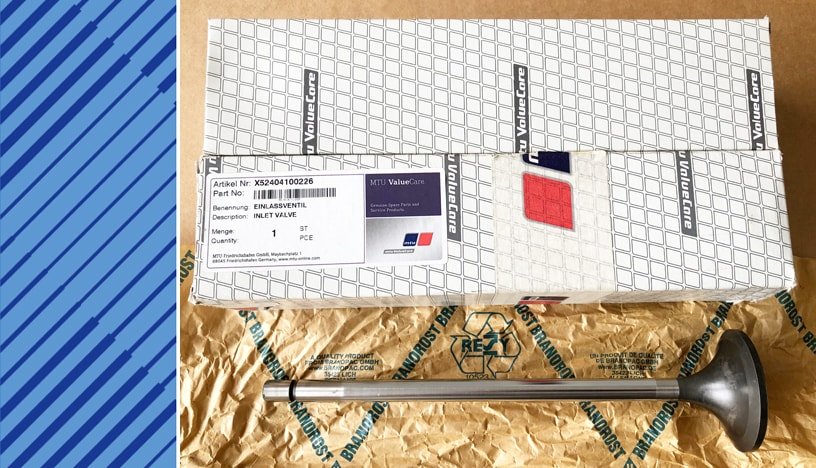

| DESCRIPTION | INLET VALVE |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.344 KG |
| HS CODE | 84099900 |
| NATO-VERS.-NR. | 2815123858518 |
| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 10 | CYLINDER HEAD W/VALVE GUIDES | N/A | 001 |
| 30 | O-RING | 700429010004 | 002 |
| 40 | INLET VALVE | X52404100226 | 002 |
| 50 | EXHAUST VALVE | 5240530805 | 002 |
| 60 | VALVE SPRING INNER | 5240530122 | 004 |
| 70 | VALVE SPRING OUTER | 5240530120 | 004 |
| 80 | RETAINER VALVE SPRIN G | 5240530125 | 004 |
| 90 | VALVE KEEPER WEDGE | 0000530926 | 008 |
| 100 | VALVE ROTATOR | 0000534335 | 004 |
| 120 | PLUG | 000910014004 | 001 |
| 130 | SEAL RING | 007603014102 | 001 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | X52404100240 | X00025995 | N/A |
| 02 | X52404100240 | X00042197/N00 | 2012/07/01 |
| 03 | X52404100240 | X00042197 | 2012/08/01 |
| 04 | X52404100240 | X52404100273 | 2019/08/02 |
| 05 | X52404100240 | X52404100290 | 2022/04/11 |
| 06 | X52404100240 | X52404100226 | 2022/04/12 |
| 07 | X52404100240 | X52404100226/N00 | 2022/04/14 |
| 08 | X52404100240 | X52404100240 | 2022/08/01 |
| Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
|---|---|---|---|
| 8V 4000 R43 | 1000 | 1800 | 170/210 (6.7/8.3) |
| 8V 4000 R43L | 1200 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R43 | 1500 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R43L | 1800 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 R43R | 2000 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 R43 | 2200 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 R43L | 2400 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R43 | 2700 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R43L | 3000 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R63R | 2700 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R63 | 3000 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R63L | 3300 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R54 | 1800 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 M73L | 2832 | 2050 | 170/190 (6.7/7.5) |
| 16V 4000 R54 | 2400 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R64 | 1500 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R84 | 1800 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 R64 | 2000 | 1800 | 170/210 (6.7/8.3) |
