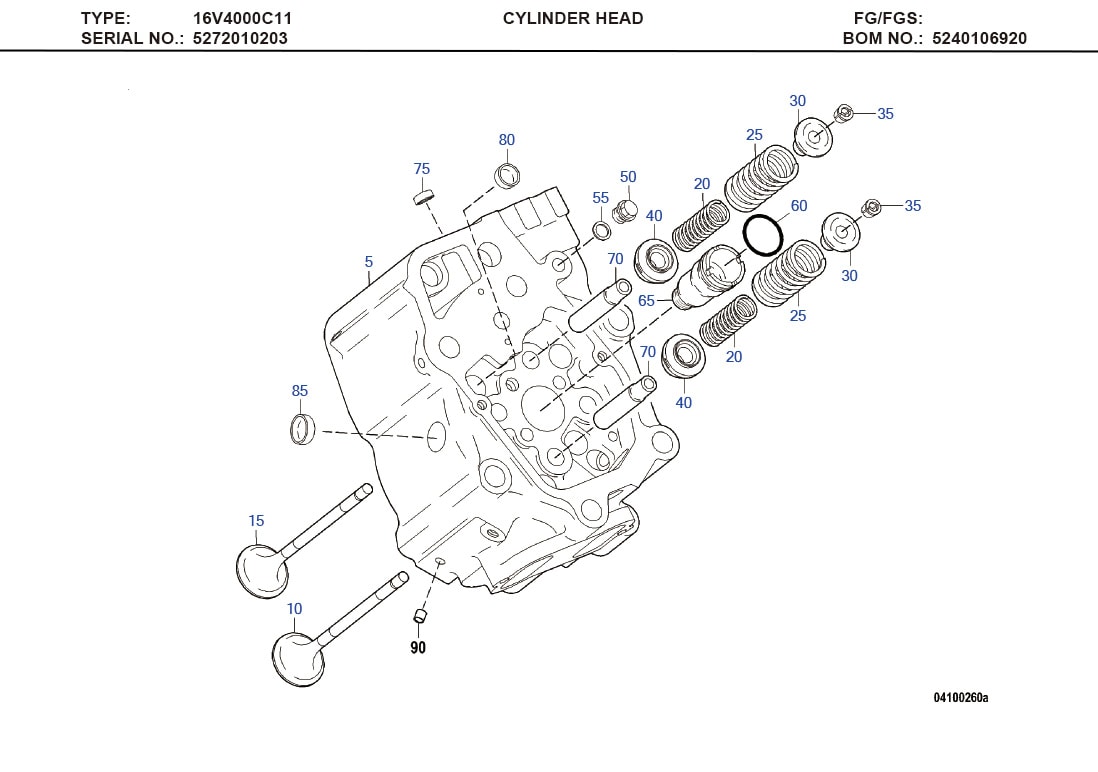

C/N | Description | Part-Number | Qty |
---|---|---|---|
5 | CYLINDER HEAD | 5240163101 | 001 |
10 | INLET VALVE | 5240531101 | 002 |
15 | EXHAUST VALVE | 5240530905 | 002 |
20 | SPRING VALVE INNER | 5240530122 | 004 |
25 | SPRING VALVE OUTER | 5240530120 | 004 |
30 | RETAINER VALVE SPRING | 5240530125 | 004 |
35 | VALVE COLLET | 0000530926 | 008 |
40 | ROTATOR VALVE | 0000534335 | 004 |
50 | PLUG | 000910014004 | 001 |
55 | WASHER A COP | 007603014102 | 001 |
60 | O-RING | 700429039000 | 001 |
65 | TUBE INJECTOR | 5240160153 | 001 |
70 | GUIDE CYL HD VALVE | 5240530530 | 004 |
75 | SEALING CAP CYL HD | 5550160633 | 001 |
80 | PLUG CUP | 5800160033 | 004 |
85 | PLUG CUP | 5240160233 | 005 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 5240531101 | 23540728 | N/A |
02 | 5240531101 | 5240530701 | 2002/05/01 |
03 | 5240531101 | 5240531101 | 2002/06/01 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 4000 R43 | 1000 | 1800 | 170/210 (6.7/8.3) |
8V 4000 R43L | 1200 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43L | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43R | 2000 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43 | 2200 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43L | 2400 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43 | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43L | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63R | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63 | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63L | 3300 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R54 | 1800 | 1800 | 130/150 (5.1/5.9) |
16V 2000 M93 | 1790 | 2450 | 170/210 (6.7/8.3) |
16V 4000 R54 | 2400 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R64 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R84 | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R64 | 2000 | 1800 | 170/210 (6.7/8.3) |
