PART NUMBER 8695860572
ENGINE TYPE MTU 4000 ENGINE
DESCRIPTION GASKET KIT
DIMENSIONS N/A
UNIT WEIGHT 0.061 KG
HS CODE 84849000
NATO-VERS.-NR. 5330123634236
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

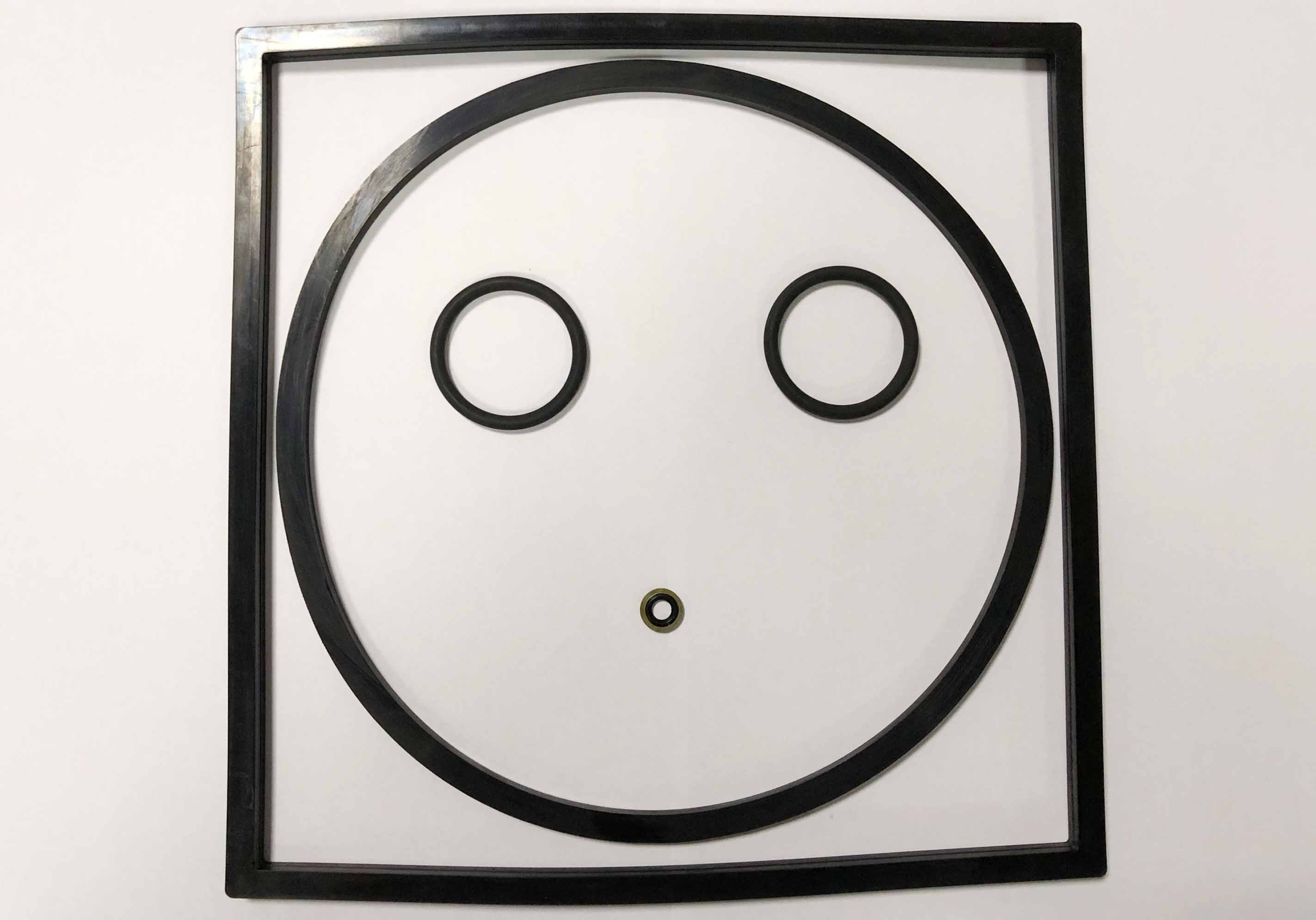

MTU 8695860572 FUEL PREFILTER GASKET KIT

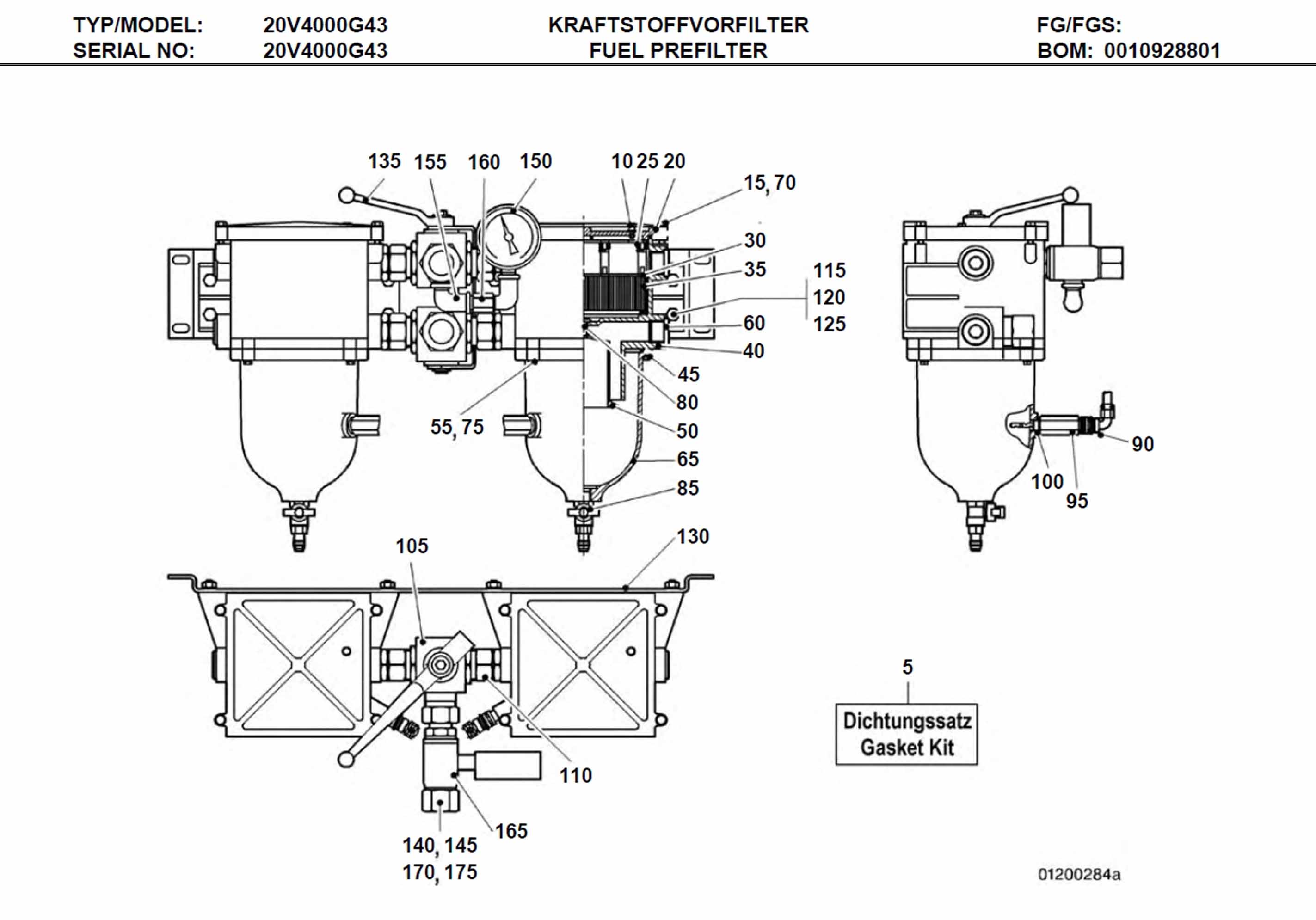

MTU 8695860572 Technical Engineering Exploded View MTU 4000 Parts 8695860572 FUEL PREFILTER GASKET  KIT

MTU 8695860572 FUEL PREFILTER GASKET KIT

C/N Description Part-Number Qty
05 GASKET KIT 8695860572 002
10 SCREW 8690920043 002
15 SCREW Z=30404 008
20 COVER 8690920046 002
25 TENSION SPRING 8699930053 024
30 SPRING CASSETTE 8690920040 004
35 FILTER ELEMENT 0000925105 002
40 HOUSING Z=30434 002
45 RETAINER Z=30446 002
50 CENTRIFUGE Z=30438 002
55 SCREW 304017006065 008
60 PLUG Z=30445 004
65 COLLECTING TROUGH 8690920037 002
70 WASHER 000125008427 008
75 WASHER 000125006431 008
80 SCREW Z=30560 002
85 COCK 8690920038 002
90 MALE CONNECTOR 0005316785 002
95 LEVEL MONITOR 0005353703 002
100 SEALING RING 007603018104 002
105 BALL COCK Z=30467 001
110 UNION Z=30468 004
115 SCREW 000933010035 008
120 WASHER 000125010524 016
125 NUT Z=30178 008
130 PLATE Z=30470 001
135 RETAINER 8690920060 001
140 UNION NUT Z=30340 002
145 CUTTING RING Z=30341 002
150 VACUUM GAUGE 8690920024 001
155 BRACKET Z=30368 002
160 SLEEVE Z=30383 001
165 ADAPTER Z=30385 001
170 UNION NUT Z=30281 001
175 SEALING CONE Z=30280 002

MTU 4000 Diesel Engine Models & Specifications

MTU 4000 Family

MTU 4000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 4000 M63 1000 1800 170/210 (6.7/8.3)
12V 4000 M63 1500 1800 170/210 (6.7/8.3)
12V 4000 M65L 1680 1800 170/210 (6.7/8.3)
16V 4000 M63L 2240 1800 170/210 (6.7/8.3)
16V 4000 M65L 2240 1800 170/210 (6.7/8.3)
8V 4000 M54R 746 1600 170/210 (6.7/8.3)
8V 4000 M55RN 746 1600 170/210 (6.7/8.3)
8V 4000 M54 895 1800 170/210 (6.7/8.3)
8V 4000 M53 950 1800 170/210 (6.7/8.3)
12V 4000 M55R 1119 1600 170/210 (6.7/8.3)
12V 4000 M53R 1140 1600 170/210 (6.7/8.3)
12V 4000 M54 1193 1800 170/210 (6.7/8.3)
12V 4000 M64 1398 1800 130/150 (5.1/5.9)
12V 4000 M93 2340 2100 165/190 (6.5/7.5)
12V 4000 M73L 2160 2050 170/210 (6.7/8.3)
16V 4000 M73 2560 1970 170/210 (6.7/8.3)
12V 4000 M93L 2580 2100 170/210 (6.7/8.3)
20V 4000 M65L 2800 1800 170/210 (6.7/8.3)
