MTU 4000 GAS PARTS | X52412400138 | GASKET

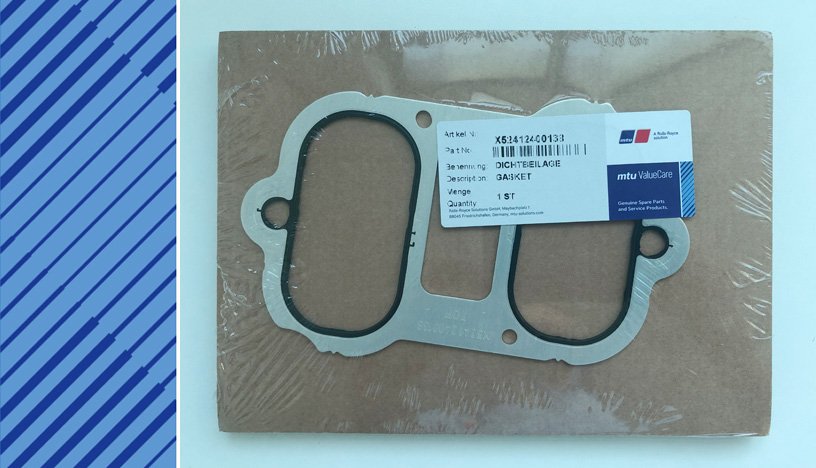

X52412400138 GASKET

Other
OtherX52601600011 GASKETX59407700021 ADAPTATEUR P. CONDUITE HPX59499100015 HOSE FOR AIR COMPRESSORX59499100014 HOSE FOR AIR COMPRESSOREX59403800070/42 CONROD0005357333 SPEED SENSOR0005357833 SPEED SENSORX00E50207196 PRESSURE SENSORX00E50207217 PRESSURE SENSOR0005358133 SPEED SENSOR5241420057 SEALING RINGX54707700072 RELIEF VALVE FOR 4-CYL HP PUMP0005357633 SPEED SENSORX59417200010 STARTER ELECTRIC5249900705 BOLT HEX FLG11506101 NUT23524783 SEAL5244920181 SEALING RING5240382550 BUSHING CONROD SIZE 0XP59612300047 INSULATIONX54920200040/87 WATER PUMP HIGH-TEMPX52499100022 GASKETX54999100010 GASKETX59399100031 GASKETX00008172 GROMMETX59399100033 GROMMETX59414100022 RESTRICTOR5240111480 GASKET5241880180 GASKETX00004135 GASKETX00038531 HOSE TURBO OIL SUPPL000125013012 WASHER0001800015 PRESSURE REDUCING VA LVE ASSYX52408100007 LINK915005020001 SEALING CONE000912010014 BOLT HEX SOC HD700223010000 BOLT BANJO A125319970245 SEALING RING000908030002 THREAD PLUG5249900605 BOLT HEX CAPXP52799101135 SEAL RING0000160119 SEALING RING5240160153 TUBE INJECTORXP56918300055 OVERFLOW VALVE0005357533 SPEED SENSORX59407700023 HP FUEL LINE5240780824 CONN FUEL RAIL REARX52808100014 FUEL DELIVERY PUMPX52404200043 GASKET FOR CYLINDER HEAD0035352231 PRESSURE SENSOR0049976736 VALVE DRAINX00007116 V-BAND CLAMPX59399100141 BELLOWSX00E50207213 PRESSURE SENSORX57508300091 FUEL FILTER SPIN-ON5240530830 VALVE GUIDEX52404200010 VALVE GUIDEEX52407500064 INJECTORX54799101554 NON-RETURN VALVE WITH BAFFLEX52414700025 INSULATING MAT FOR EXH PIPEX52414100123 GASKET F.EXHAUST MANIFOLD0090374419 KEYSTONE COMPR RING5260160153 SLEEVEX00011779 GASKETXP52414800015 SEALING RINGX00E50203606/S0002 KNOCKING MODULEX52404200071 GASKET FOR CYLINDER HEADS-20056163 SEALING RINGX52607700009 ADAPTER JACKETEDEX59403700072 PISTONX59403800071/42 CONNECTING ROD5241420780 GASKET23540304/A1 GASKET KIT5240384210 CONROD BEARING SIZE 0-1X00043219 CONROD BEARING SIZE 0-15240332730 CRANKSHAFT BEARING DRIVINGX00016599 BEARING BUSHINGX59301300049 CYLINDER LINER STAGE 0XP59501800123 FILTER ELEMENT5260200305 HOUSING+ROTATING ASM5272010505 SHAFT WAT PUMPX59607700020 ADAPTER FOR HP LINEEX00035690 PISTONEX00008371 PISTONX00E50201372 TEMPERATURE SENSORX52404500056 SPARKPLUGX00E50200176 CONNECTION INTERFACE0001424957 RING EXH MANIFX52408300025 FUEL HAND PUMP5240980281 HOSEX52420300037 THERMAL ACTUATOR5240333407 BEARING THRUST/0-1/LO/SPT5240332608 BEARING THRUST/0-1/UP/RIL5110850960 PISTON RING X52499100815 4/2-WAY SOL. VALVEXP52712100006 FILTER ELEMENTXP52712100005 FILTER ELEMENTXP52712100003 FILTER ELEMENTXP52712100002 FILTER ELEMENT5205304069 SPEED TRANSMITTERX52421300004 ALTERNATOR0219976547 SEAL RING CRANKSHAFT FRONT0219976647 SEAL RING CRANKSHAFT REARXP59408300054 FILTER CARTRIDGEXP59400600004 GASKET KITXP52718300064 GASKET KITXP52718300065 CIRCLIP KITXP52718300060 PAPER INSERTX52808100004 FUEL DELIVERY PUMP8691840027 ROTOR COMPLETE5240530905 EXHAUST VALVE5240531101 INLET VALVE5240550550 BUSHINGX52499100259 ADJUSTING SCREWX52405400013 PUSHROD0000530926 VALVE KEEPER WEDGE5240530120 VALVE SPRING OUTER5240530122 VALVE SPRING INNER5240530805 EXHAUST VALVEX52404100226 INLET VALVEX52404200037 GASKET FOR CYLINDER HEADX52404200052 SEAL RING5240380471 CONROD BOLT0120373618 OIL CONTROL RING0090375019 TAPER FACE COMP RINGX00009806 RECTANGLR-SECT RING5240336702 CRANKSHAFT BEARING SIZE 0-15110804420 TURBINE WHEELX52403100003 CRANKSHAFT BEARING SIZE 0-15240336602 CRANKSHAFT BEARING LOWER HALFX00016024 CRANKSHAFT BEARING SIZE 0-05240332630 CRANKSHAFT BEARING AUX PTO END5240111380 GASKETX00027830 CYLINDER LINER SIZE 0 C235240510110 BEARING CAMSHAFT STD23540455 CENTRIFUGAL OIL FILTER ASM5240114210 CYLINDER LINER SIZE 0X59620600007 THERMAL ACTUATORX59699101095 BANJO SCREWX59620700004 SEAL CARRIERXP00A36400005 FILTER ELEMENTX52407800004 FLOW RESTRICT VALVE0299976748 O-RINGX52499100774 SUPPORT PLATEX52420200075 ROTARY SEALX51699100327 SHAFT SEAL RINGXP59420700027 IMPELLERX59407700014 ADAPTER5272010153 SPACER SLEEVEX00040012 SPEED SENSORX59610100061 BEARING BODY5110251976 WASHERX59610100101 THRUST BEARING8695860572 GASKET KITXP59420300091 SEAL RING5241870380 GASKETX52414100132 GASKET FOR EXHAUST PIPEX56912300043 ACTUATING CYLINDERX59420200235 RESTRICTORX59420200234 RESTRICTORX59420200233 RESTRICTORX59420200238 RESTRICTOR5240384110 CONROD BEARING UPPER HALFXP58420400009 GASKETX00041552 COOLER PLATE X52403800001 CONROD BEARINGXP52618300032 OIL FILTER ELEMENTX00008369 PISTON5410180233 DIAPHRAGM700429038003 O-RINGXP59307500002 O-RINGX52405500190 PROFILE GASKET F CYLINDX00044065 SLEEVE RUBBER
PART NUMBER X52412400138
ENGINE TYPE MTU 4000 GAS ENGINE
DESCRIPTION GASKET
DIMENSIONS N/A
UNIT WEIGHT 0.023 KG
HS CODE 84841000
NATO-VERS.-NR. N/A
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

MTU 4000 GAS ENGINE PARTS X52412400138 GASKET

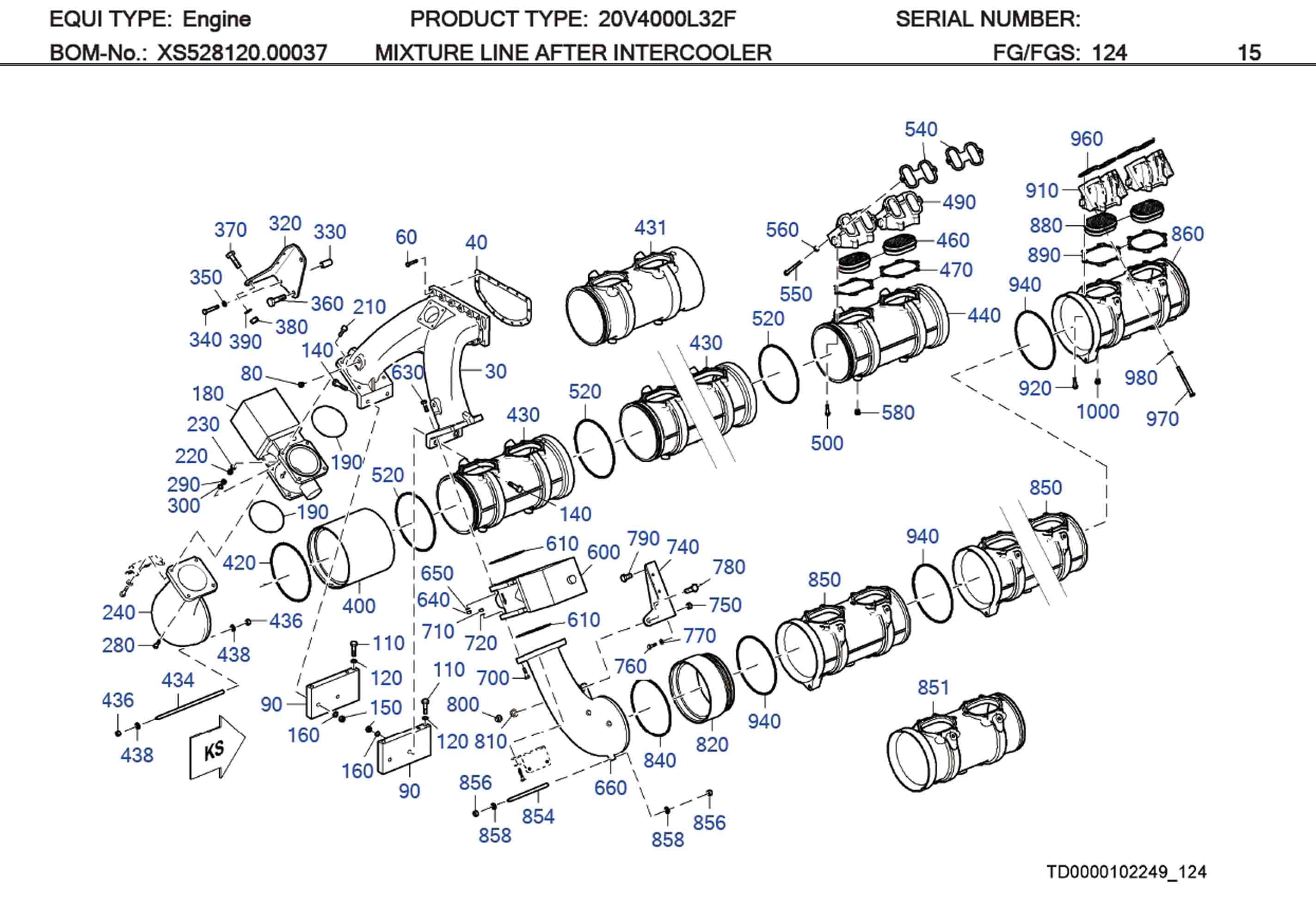

MTU X52412400138 Technical Engineering Exploded View

MTU 4000 GAS ENGINE PARTS X52412400138 GASKET

C/N Description Part-Number Qty
30 DISTRIBUTOR HOUSING AFTER MIXED-GAS COO X52712300038 001
40 GASKET ON MONO-INTERCOOLER 5260980380 001
60 HEX SCREW 304017008086 015
80 THREAD PLUG 735210014000 001
90 STRIP X52609600002 002
110 HEX SCREW 000000003949 004
120 WASHER 000125013012 004
140 HEX SCREW 000000003328 004
150 HEX NUT 000000004744 004
160 WASHER 000125013012 004
180 THROTTLE FLAP ELECTRIC X52412300042 001
190 O-RING 700429140003 002
210 HEX SCREW 000000003347 004
220 NUT HEX A3C 000000003187 004
230 WASHER 000125010524 004
240 INTAKE ELBOW LEFT X52412400105 001
280 HEX SCREW 000000003347 004
290 NUT HEX A3C 000000003187 004
300 WASHER 000125010524 004
320 RETAINER FOR ELBOW X52812300030 001
330 SPACER SLEEVE 5241870553 001
340 HEX SCREW 000000004745 001
350 WASHER 000125010524 001
360 HEX SCREW 304017016019 002
370 HEX SCREW 304017016028 001
380 HEX NUT 304032016003 001
390 WASHER 000125017014 001
400 CONNECTING PIECE ON CHARGE-AIR PIPE X52812400004 001
420 O-RING 700429220002 001
430 CHARGE-AIR PIPE X52412400116 001
431 CHARGE-AIR PIPE X52412400084 003
434 STUD SCREW X52499100656 001
436 NUT HEX ZNPH R5F 204032012000 002
438 WASHER 8379902540 002
440 CHARGE-AIR PIPE END MEMBER, LEFT X52412400114 001
460 FLAME ARRESTOR X52412300034 010
470 GASKET X52412400110 010
490 INLET ELBOW ON CHARGE-AIR PIPE X52412400124 010
500 HEX SCREW 201665008000 060
520 O-RING 700429220002 005
540 GASKET X52412400119 010
550 HEX SCREW 000000001465 020
560 WASHER 000125010524 020
580 THREAD PLUG 735210014000 004
600 THROTTLE FLAP ELECTRIC X52412300042 001
610 O-RING 700429140003 002
630 HEX SCREW 000000003347 004
640 NUT HEX A3C 000000003187 004
650 WASHER 000125010524 004
660 INTAKE ELBOW RIGHT X52412400104 001
700 HEX SCREW 000000003347 004
710 NUT HEX A3C 000000003187 004
720 WASHER 000125010524 004
740 RETAINER FOR ELBOW X52812300031 001
750 SPACER S2000/4000 735151010200 001
760 HEX SCREW 000000001464 001
770 WASHER 000125010524 001
780 HEX SCREW 304017016019 002
790 HEX SCREW 304017016028 001
800 HEX NUT 304032016003 001
810 WASHER 000125017014 001
820 CONNECTING PIECE ON CHARGE-AIR PIPE X52812400003 001
840 O-RING 700429220002 001
850 CHARGE-AIR PIPE X52412400116 001
851 CHARGE-AIR PIPE X52412400084 003
854 STUD SCREW X52499100657 001
856 NUT HEX ZNPH R5F 204032012000 002
858 WASHER 8379902540 002
860 CHARGE-AIR PIPE END MEMBER, RIGHT X52412400109 001
880 FLAME ARRESTOR X52412300034 010
890 GASKET X52412400110 010
910 INLET ELBOW ON CHARGE-AIR PIPE X52412400124 010
920 HEX SCREW 201665008000 060
940 O-RING 700429220002 005
960 GASKET X52412400119 010
970 HEX SCREW 000000001465 020
980 WASHER 000125010524 020
1000 THREAD PLUG 735210014000 003

X52412400138 SUPERSEDED PART AND EFFECTIVE DATE

X52412400138 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 X52412400138 X52412400119 N/A
02 X52412400138 X52412400138 2019/06/01

MTU 4000 GAS Engine Models & Specifications

MTU 2000 M96 Family

MTU 4000 GAS Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 4000 L64 1012 1500 170/210 (6.7/8.3)
8V 4000 L64 FNER 1013 1500 170/210 (6.7/8.3)
12V 4000 L64 1523 1500 170/210 (6.7/8.3)
12V 4000 L64 FNER 1521 1500 170/210 (6.7/8.3)
16V 4000 L64 2028 1500 170/210 (6.7/8.3)
16V 4000 L64 FNER 2028 1500 170/210 (6.7/8.3)
20V 4000 L64 2530 1500 170/210 (6.7/8.3)
20V 4000 L64 FNER 2538 1500 170/210 (6.7/8.3)
8V 4000 L32 762 1500 170/210 (6.7/8.3)
12V 4000 L32 1151 1500 170/210 (6.7/8.3)
16V 4000 L32 1542 1500 170/210 (6.7/8.3)
20V 4000 L32 1932 1500 170/210 (6.7/8.3)
12V 4000 L64 FB 2106 1500 170/210 (6.7/8.3)
8V 4000 L33 764 1500 170/210 (6.7/8.3)
12V 4000 L33 1152 1500 170/210 (6.7/8.3)
16V 4000 L33 1549 1500 170/210 (6.7/8.3)
20V 4000 L33 1924 1500 170/210 (6.7/8.3)
20V 4000 L64 FB 2547 1500 170/210 (6.7/8.3)
16V 4000 L32 ER 1560 1500 170/210 (6.7/8.3)
20V 4000 L32 ER 1948 1500 170/210 (6.7/8.3)
8V 4000 L32 1169 1500 170/210 (6.7/8.3)
8V 4000 L64 FB 1012 1500 170/210 (6.7/8.3)
16V 4000 L64 FB 2032 1500 170/210 (6.7/8.3)
