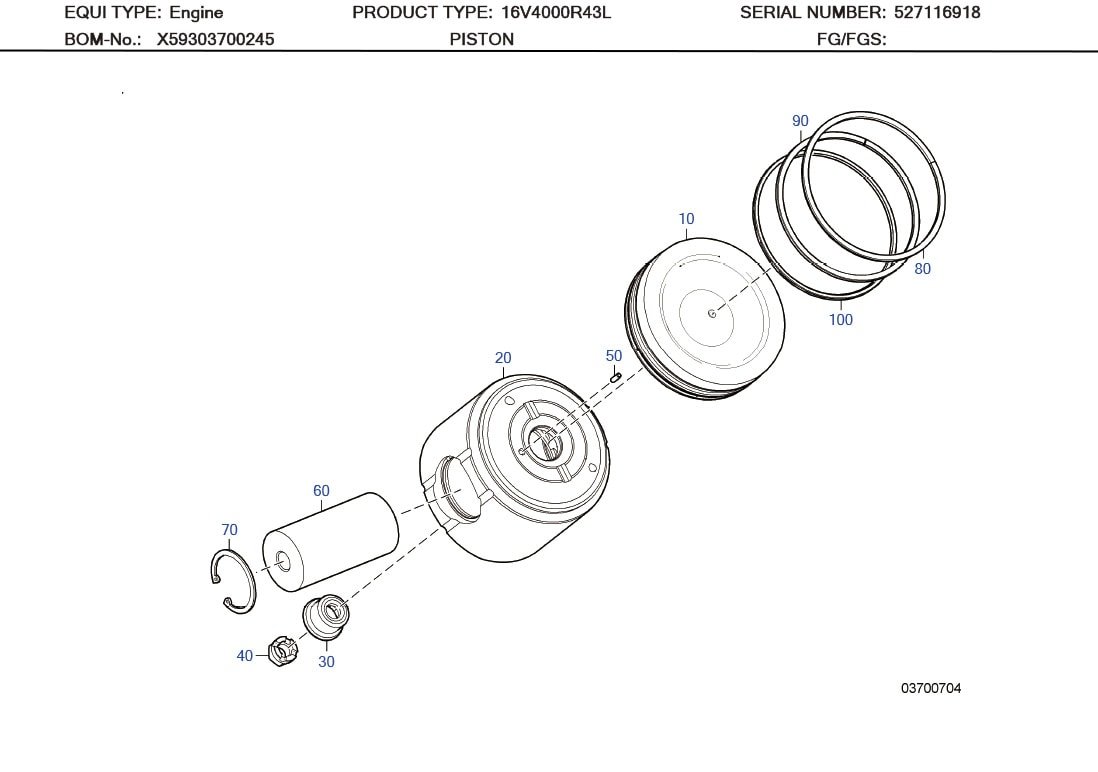

C/N | Description | Part-Number | Qty |
---|---|---|---|
10 | PISTON CROWN | N/A | 001 |
20 | PISTON SKIRT | X59403700073 | 001 |
30 | EXPANSION SLEEVE | X00039430 | 001 |
40 | PISTON NUT | X00039431 | 001 |
50 | PIN SPRING | 001481005017 | 001 |
60 | PISTON PIN | 5240370120 | 001 |
70 | SNAP RING | X52403700066 | 001 |
80 | RECTANGLR-SECT RING | X00009806 | 001 |
90 | TAPER FACE COMP RING | 0090375019 | 001 |

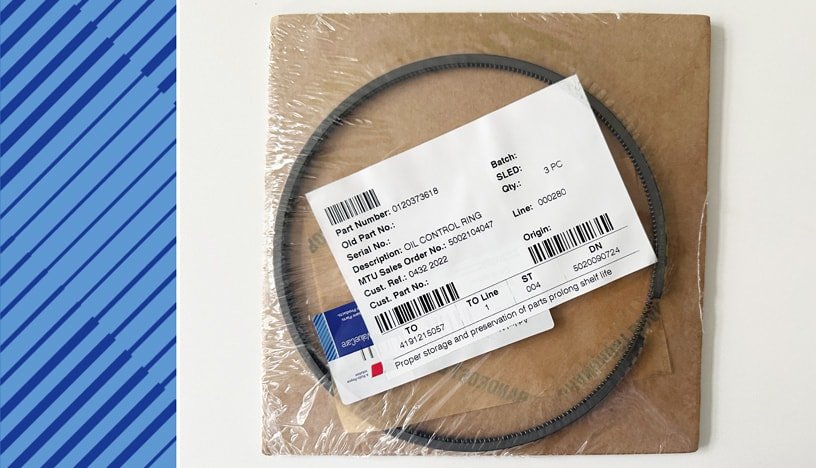

100 | OIL CONTROL RING | 0120373618 | 001 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 4000 R43 | 1000 | 1800 | 170/210 (6.7/8.3) |
8V 4000 R43L | 1200 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43L | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43R | 2000 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43 | 2200 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43L | 2400 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43 | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43L | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63R | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63 | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63L | 3300 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R54 | 1800 | 1800 | 130/150 (5.1/5.9) |
16V 4000 M73L | 2832 | 2050 | 170/190 (6.7/7.5) |
16V 4000 R54 | 2400 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R64 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R84 | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R64 | 2000 | 1800 | 170/210 (6.7/8.3) |
