C/N | Description | Part-Number | Qty |
---|---|---|---|
200 | CARRIER HOUSING | X59414300006 | 008 |
300 | COVER | 5261420091 | 005 |
350 | HEX SCREW | 000000003021 | 010 |
360 | SCREW PLUG | 000908014001 | 004 |
365 | SEAL RING | 007603014102 | 004 |
375 | SCREW PLUG | 000908014001 | 004 |
380 | SEAL RING | 007603014102 | 004 |
450 | INTERMEDIATE FLANGE | X52814300005 | 004 |
500 | HEX SCREW | 304017010035 | 024 |
600 | STUD | 000939010115 | 024 |
650 | O-RING | 700429200002 | 004 |
750 | RESTRICTOR | X59420200233 | 008 |

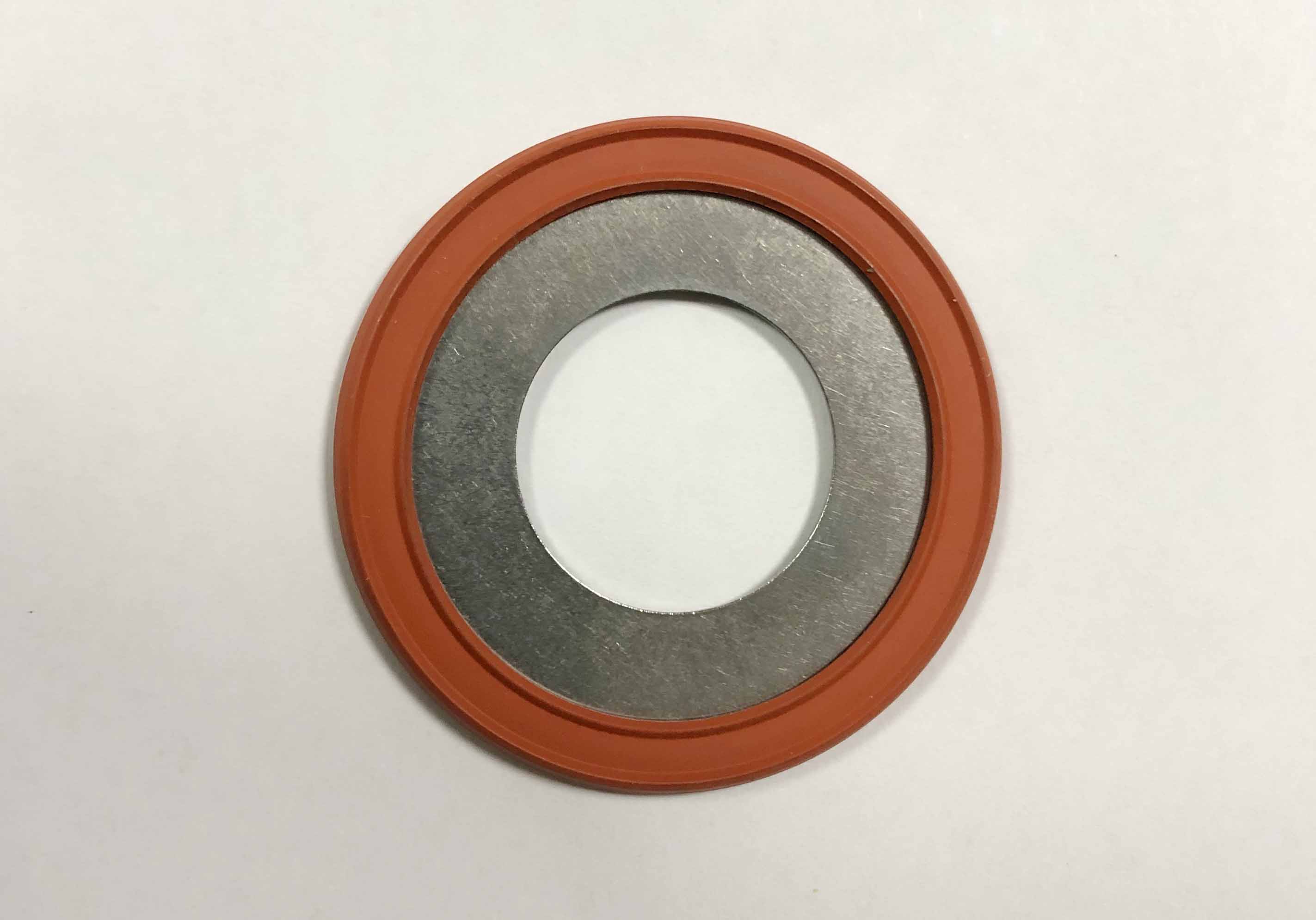

800 | RESTRICTOR | X59420200234 | 008 |
850 | RESTRICTOR | X59420200235 | 008 |
900 | HEX SCREW | 304017010034 | 039 |
910 | WASHER | 007349010002 | 003 |
920 | HEX SCREW | 000000003510 | 003 |
1000 | RESTRICTOR | X59420200238 | 016 |
1050 | HEX SCREW | 000000001042 | 038 |
1100 | BOLT HEX SOC HD | 000912010016 | 002 |
1150 | HEX SCREW | 000000000906 | 016 |
1200 | WASHER A COP | 007603012102 | 012 |
1250 | THREAD PLUG | 000908012003 | 012 |
1270 | RETAINER F/TURBO OIL SUPPLY | X59418500093 | 003 |
1280 | HEX SCREW | 000000003021 | 006 |
1300 | RETAINER F/TURBO OIL SUPPLY | X59418500019 | 002 |
1305 | RETAINER | X59418500032 | 001 |
1310 | WASHER | 007349010002 | 006 |
1315 | HEX SCREW | 204014010006 | 001 |
1320 | HEX SCREW | 000000003510 | 005 |
1330 | WASHER | 007349013002 | 003 |
1340 | HEX SCREW | 000000003925 | 003 |
1370 | ACTUATING CYLINDER | X56912300043 | 003 |
1380 | HEX SCREW | 304017006063 | 012 |
1390 | CLEVIS | X00041795 | 003 |
1400 | ARTICULATED BEARING FOR FLAP CONTROL | X52499100007 | 003 |
1410 | LEVER F/EXH FLAP CONTROL | X52810100084 | 003 |
1420 | SCREW | 000912006018 | 003 |
1430 | HEX SCREW | 304017008084 | 003 |
1440 | PIN SPRING | 001481005030 | 003 |
1450 | NUT | 5069900251 | 003 |
1470 | RETAINER | X59418500052 | 003 |
1475 | SPACER | X59499100117 | 003 |
1480 | WASHER | 007349006004 | 012 |
1490 | HEX SCREW | 304017006065 | 012 |
1500 | WASHER | 007349008002 | 006 |
1510 | HEX SCREW | 204017008011 | 006 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | X59420200234 | X00003011 | N/A |
02 | X59420200234 | X59420200234 | 2011/12/01 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 4000 M63 | 1000 | 1800 | 170/210 (6.7/8.3) |
12V 4000 M63 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 M65L | 1680 | 1800 | 170/210 (6.7/8.3) |
16V 4000 M63L | 2240 | 1800 | 170/210 (6.7/8.3) |
16V 4000 M65L | 2240 | 1800 | 170/210 (6.7/8.3) |
8V 4000 M54R | 746 | 1600 | 170/210 (6.7/8.3) |
8V 4000 M55RN | 746 | 1600 | 170/210 (6.7/8.3) |
8V 4000 M54 | 895 | 1800 | 170/210 (6.7/8.3) |
8V 4000 M53 | 950 | 1800 | 170/210 (6.7/8.3) |
12V 4000 M55R | 1119 | 1600 | 170/210 (6.7/8.3) |
12V 4000 M53R | 1140 | 1600 | 170/210 (6.7/8.3) |
12V 4000 M54 | 1193 | 1800 | 170/210 (6.7/8.3) |
12V 4000 M64 | 1398 | 1800 | 130/150 (5.1/5.9) |
12V 4000 M93 | 2340 | 2100 | 165/190 (6.5/7.5) |
12V 4000 M73L | 2160 | 2050 | 170/210 (6.7/8.3) |
16V 4000 M73 | 2560 | 1970 | 170/210 (6.7/8.3) |
12V 4000 M93L | 2580 | 2100 | 170/210 (6.7/8.3) |
20V 4000 M65L | 2800 | 1800 | 170/210 (6.7/8.3) |
