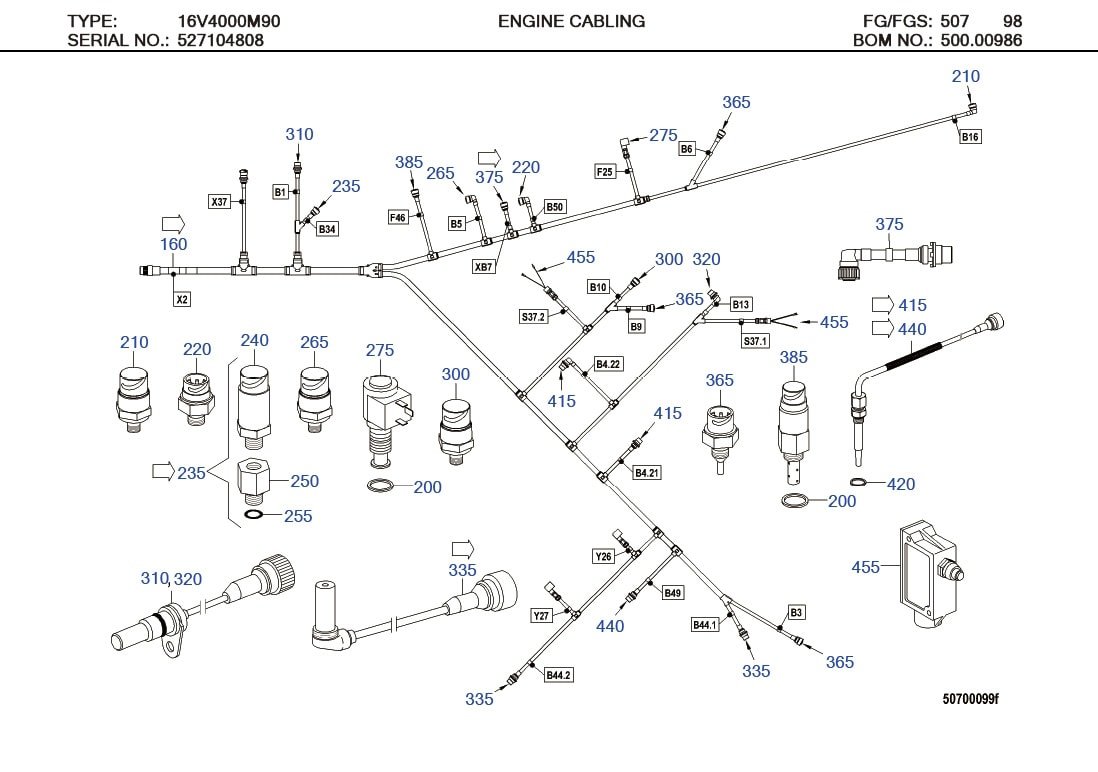

C/N | Description | Part-Number | Qty |
---|---|---|---|
145 | WIRING HARNESS TO IN JECTOR | 5275305222 | 001 |
161 | WIRING HARNESS FOR ON-ENGINE SENSO | X00E50700032 | 001 |
180 | WIRING HARNESS FOR ON-ENGINE SENSO | 5275302925 | 001 |
195 | LEVEL MONITOR | X00031104 | 001 |
200 | SEALING RING | 007603018101 | 003 |
210 | PRESSURE SENSOR | 0045358831 | 001 |
220 | PRESSURE SENSOR | 0035352231 | 001 |
235 | SENSOR FOR FUEL | 5205304531 | 001 |
240 | PRESSURE SENSOR | 0035351731 | 001 |
250 | BUSHING | 5240780050 | 001 |
255 | O-RING | 735221011000 | 001 |
265 | PRESSURE SENSOR | 0035352531 | 001 |
275 | DIFF-PRESS MONITOR | X00E50201396 | 001 |
290 | PRESSURE SENSOR | X00038945 | 001 |
300 | PRESSURE SENSOR | 0035352731 | 001 |
310 | SPEED SENSOR | 0005357533 | 001 |
320 | SPEED SENSOR | 0005357633 | 001 |

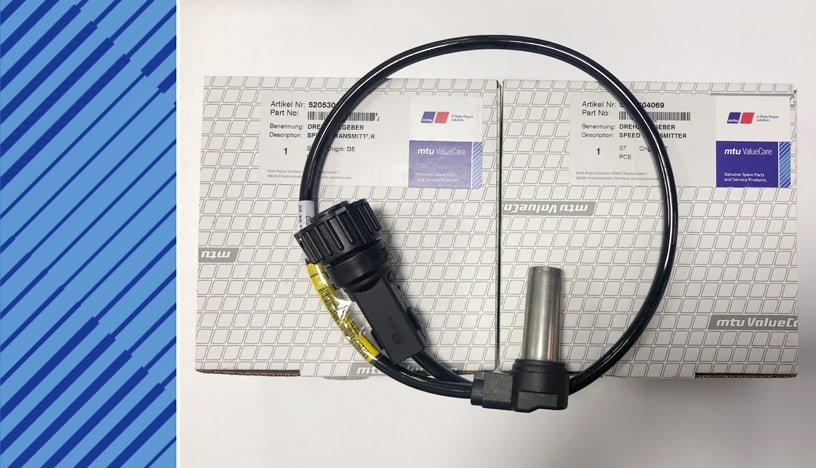

335 | SPEED TRANSMITTER | 5205304069 | 002 |
365 | TEMPERATURE SENSOR | 0005356430 | 005 |
375 | CABLE | 5265303735 | 001 |
385 | LEVEL MONITOR | X00031095 | 001 |
416 | TEMPERATURE SENSOR | 0005358530 | 002 |
420 | SEALING RING | 007603014103 | 002 |
441 | TEMPERATURE SENSOR | 0005358530 | 001 |
455 | SWITCH | 635H22706/2 | 002 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 4000 R43 | 1000 | 1800 | 170/210 (6.7/8.3) |
8V 4000 R43L | 1200 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43L | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43R | 2000 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43 | 2200 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43L | 2400 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43 | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43L | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63R | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63 | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63L | 3300 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R54 | 1800 | 1800 | 130/150 (5.1/5.9) |
16V 4000 M73L | 2832 | 2050 | 170/190 (6.7/7.5) |
16V 4000 R54 | 2400 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R64 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R84 | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R64 | 2000 | 1800 | 170/210 (6.7/8.3) |
