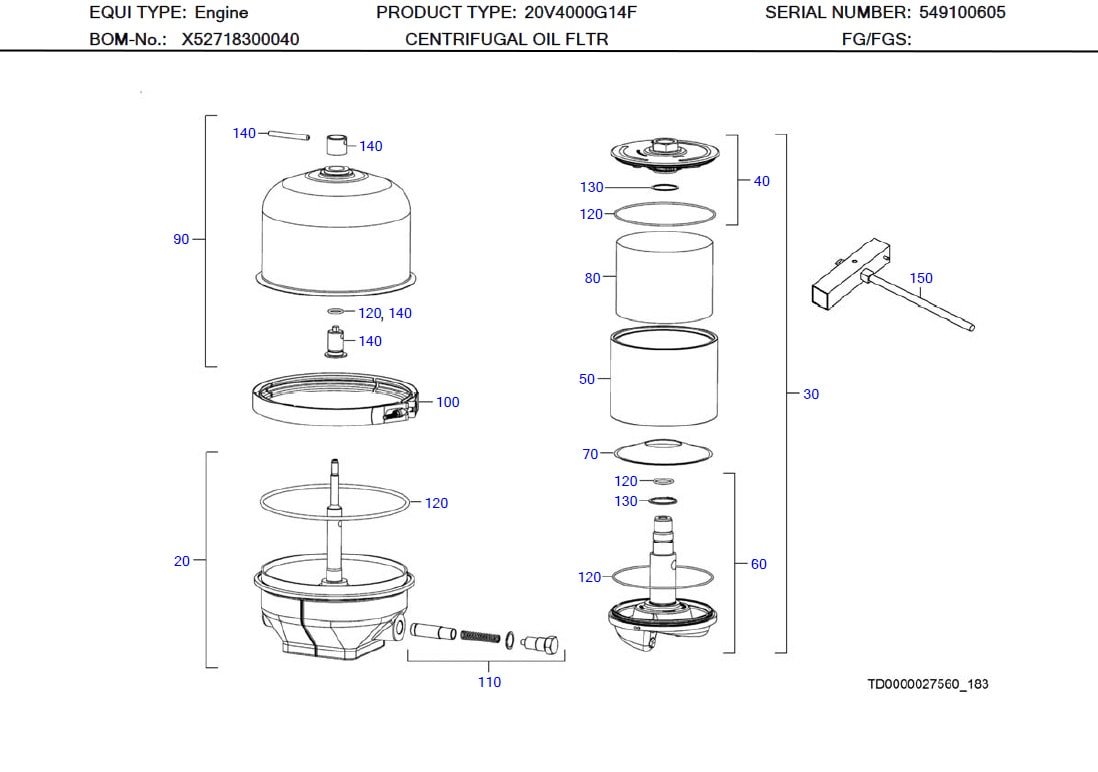

MTU XP52718300064 Technical Engineering Exploded View

MTU XP52718300064 Technical Engineering Exploded View

MTU XP52718300064 Technical Engineering Exploded View

C/N Description Part-Number Qty
20 HSNG; BOTTOM SECTION XP52718300054 001
30 ROTOR ASSEMBLY XP52718300055 001
40 ROTOR COVER ASSEMBLY XP52718300056 001
50 ROTOR TUBE XP52718300057 001
60 ROTOR BASE ASSEMBLY XP52718300058 001
70 SEPARATION CONE XP52718300059 001
80 PAPER INSERT XP52718300060 001
90 COVER ASSEMBLY XP52718300061 001
100 V-BAND CLAMP XP52718300062 001
110 CUT OFF VALVE KIT XP52718300063 001
120 GASKET KIT XP52718300064 001
130 CIRCLIP KIT XP52718300065 001
140 FILTER COVER NUT KIT XP52718300066 001
150 ROTOR DISASSEMBLY TOOL XP52718300067 001

MTU 4000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 4000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 4000 R43 1000 1800 170/210 (6.7/8.3)
8V 4000 R43L 1200 1800 170/210 (6.7/8.3)
12V 4000 R43 1500 1800 170/210 (6.7/8.3)
12V 4000 R43L 1800 1800 170/210 (6.7/8.3)
16V 4000 R43R 2000 1800 170/210 (6.7/8.3)
16V 4000 R43 2200 1800 170/210 (6.7/8.3)
16V 4000 R43L 2400 1800 170/210 (6.7/8.3)
20V 4000 R43 2700 1800 170/210 (6.7/8.3)
20V 4000 R43L 3000 1800 170/210 (6.7/8.3)
20V 4000 R63R 2700 1800 170/210 (6.7/8.3)
20V 4000 R63 3000 1800 170/210 (6.7/8.3)
20V 4000 R63L 3300 1800 170/210 (6.7/8.3)
12V 4000 R54 1800 1800 130/150 (5.1/5.9)
16V 2000 M93 1790 2450 170/210 (6.7/8.3)
16V 4000 R54 2400 1800 170/210 (6.7/8.3)
12V 4000 R64 1500 1800 170/210 (6.7/8.3)
12V 4000 R84 1800 1800 170/210 (6.7/8.3)
16V 4000 R64 2000 1800 170/210 (6.7/8.3)
