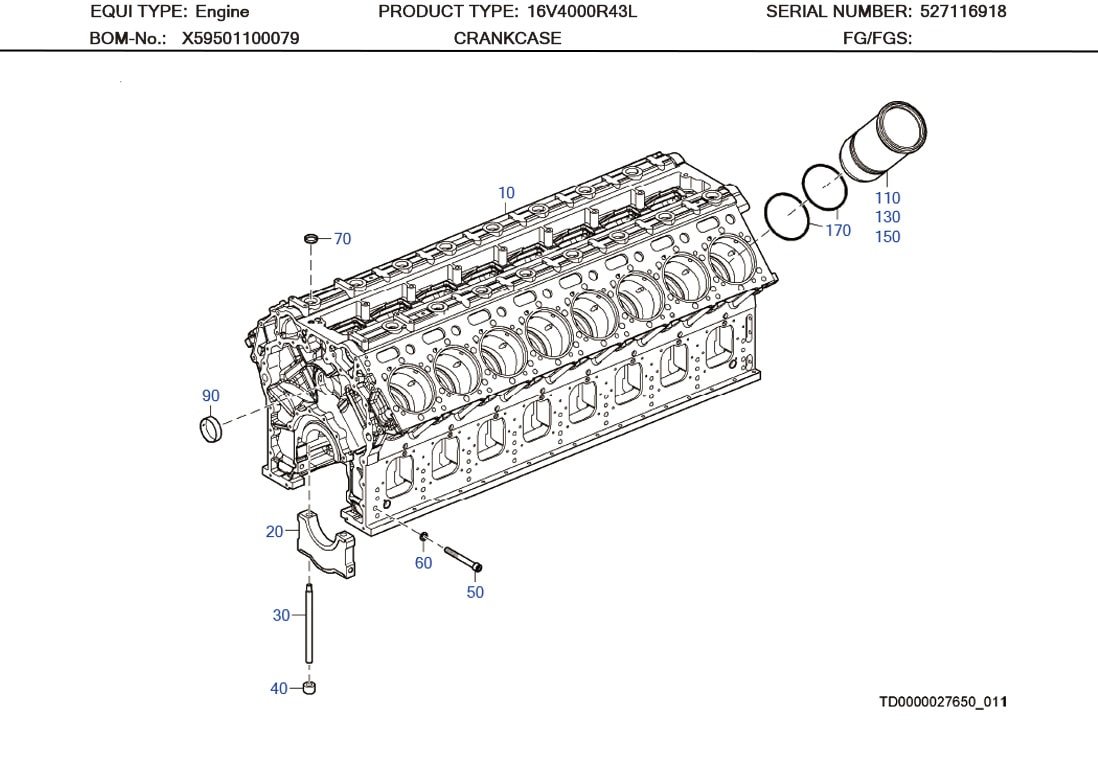

C/N | Description | Part-Number | Qty |
---|---|---|---|
10 | CRANKCASE | X59501100078 | 001 |
20 | CRANKSHAFT BRG CAP | X59301100005 | 009 |
30 | STUD | 5240110570 | 018 |
40 | NUT | 5240110172 | 018 |
50 | SCREW W. INTERNAL HEX. | X52899100040 | 018 |
60 | WASHER | 700521020200 | 018 |
70 | SEALING CAP | 5249970020 | 032 |
90 | BEARING CAMSHAFT STD | 5240510110 | 009 |
110 | CYLINDER LINER SIZE 0 C23 | X00027830 | 016 |
130 | CYLINDER LINER STAGE 1 | X59301300038 | 001 |
150 | CYLINDER LINER STAGE 2 | X59301300039 | 001 |
170 | SEALING RING | 5550110259 | 032 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 4000 R43 | 1000 | 1800 | 170/210 (6.7/8.3) |
8V 4000 R43L | 1200 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43L | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43R | 2000 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43 | 2200 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43L | 2400 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43 | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43L | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63R | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63 | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63L | 3300 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R54 | 1800 | 1800 | 130/150 (5.1/5.9) |
16V 4000 M73L | 2832 | 2050 | 170/190 (6.7/7.5) |
16V 4000 R54 | 2400 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R64 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R84 | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R64 | 2000 | 1800 | 170/210 (6.7/8.3) |
