| PART NUMBER | 23540304/A1 |
| ENGINE TYPE | MTU 4000 ENGINE |

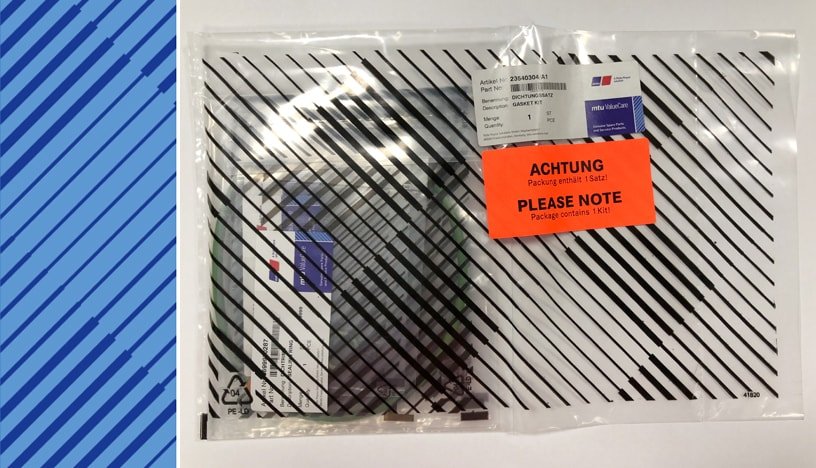

| DESCRIPTION | GASKET KIT |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.075 KG |
| HS CODE | 40169300 |
| NATO-VERS.-NR. | N/A |

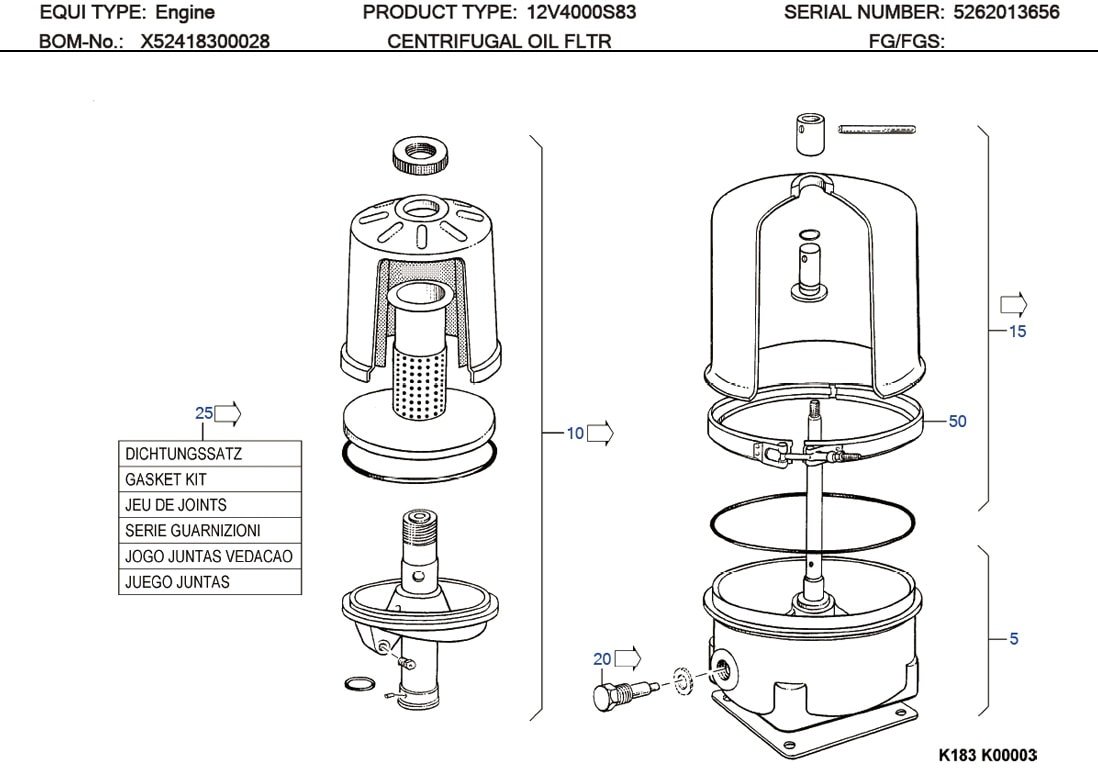

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 5 | BODY ASM CENTRIFUGAL SPINNER OIL FLTR | 23540299 | 001 |
| 10 | ROTOR COMPLETE | 8691840027 | 001 |
| 15 | COVER | 8691840028 | 001 |
| 20 | VALVE | 8691840019 | 001 |
| 25 | GASKET KIT | 23540304 | 001 |
| 50 | V-BAND CLAMP | XP52499100226 | 001 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 23540304/A1 | 8695860454 | N/A |
| 02 | 23540304/A1 | 23525947 | 2001/07/01 |
| 03 | 23540304/A1 | 23523084 | 2001/08/01 |
| 04 | 23540304/A1 | 23540304 | 2001/09/01 |
| 05 | 23540304/A1 | 23540304/A1 | 2015/02/25 |
| Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
|---|---|---|---|
| 8V 4000 R43 | 1000 | 1800 | 170/210 (6.7/8.3) |
| 8V 4000 R43L | 1200 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R43 | 1500 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R43L | 1800 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 R43R | 2000 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 R43 | 2200 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 R43L | 2400 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R43 | 2700 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R43L | 3000 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R63R | 2700 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R63 | 3000 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R63L | 3300 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R54 | 1800 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 C11 | 1715 | 1500 | 165/190 (6.5/7.5) |
| 16V 4000 R54 | 2400 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R64 | 1500 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R84 | 1800 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 R64 | 2000 | 1800 | 170/210 (6.7/8.3) |
