XP59420700027 IMPELLER

Other
Other XP00A36400005 FILTER ELEMENT X52407800004 FLOW RESTRICT VALVE 0299976748 O-RING X52499100774 SUPPORT PLATE X52420200075 ROTARY SEAL X51699100327 SHAFT SEAL RING XP59420700027 IMPELLER 5272010153 SPACER SLEEVE X59407700014 ADAPTER 23540455 CENTRIFUGAL OIL FILTER ASM X00040012 SPEED SENSOR 5110251976 WASHER X59610100061 BEARING BODY X59610100101 THRUST BEARING 8695860572 GASKET KIT XP59420300091 SEAL RING 5241870380 GASKET X52414100132 GASKET FOR EXHAUST PIPE X56912300043 ACTUATING CYLINDER X59420200235 RESTRICTOR X59420200234 RESTRICTOR X59420200233 RESTRICTOR X59420200238 RESTRICTOR 5240384110 CONROD BEARING UPPER HALF XP58420400009 GASKET X00041552 COOLER PLATE X52403800001 CONROD BEARING XP52618300032 OIL FILTER ELEMENT X00008369 PISTON 5410180233 DIAPHRAGM 700429038003 O-RING XP59307500002 O-RING X52405500190 PROFILE GASKET F CYLIND EX59403700072 PISTON X59403800071/42 CONNECTING ROD 5241420780 GASKET 23540304/A1 GASKET KIT 5240384210 CONROD BEARING SIZE 0-1 X00043219 CONROD BEARING SIZE 0-1 5240332730 CRANKSHAFT BEARING DRIVING X00016599 BEARING BUSHING X59301300049 CYLINDER LINER STAGE 0 XP59501800123 FILTER ELEMENT 5260200305 HOUSING+ROTATING ASM EX00008371 PISTON X00E50201372 TEMPERATURE SENSOR X52404500056 SPARKPLUG X00E50200176 CONNECTION INTERFACE 0001424957 RING EXH MANIF X52408300025 FUEL HAND PUMP 5240980281 HOSE X00044065 SLEEVE RUBBER X52420300037 THERMAL ACTUATOR 5240333407 BEARING THRUST/0-1/LO/SPT 5240332608 BEARING THRUST/0-1/UP/RIL 5110850960 PISTON RING X52499100815 4/2-WAY SOL. VALVE XP52712100006 FILTER ELEMENT XP52712100005 FILTER ELEMENT XP52712100003 FILTER ELEMENT XP52712100002 FILTER ELEMENT 5205304069 SPEED TRANSMITTER X52421300004 ALTERNATOR 0219976547 SEAL RING CRANKSHAFT FRONT 0219976647 SEAL RING CRANKSHAFT REAR 5240114210 CYLINDER LINER SIZE 0 XP59408300054 FILTER CARTRIDGE XP59400600004 GASKET KIT XP52718300064 GASKET KIT XP52718300065 CIRCLIP KIT XP52718300060 PAPER INSERT X52808100004 FUEL DELIVERY PUMP 8691840027 ROTOR COMPLETE 5240530905 EXHAUST VALVE 5240531101 INLET VALVE 5240550550 BUSHING X52499100259 ADJUSTING SCREW X52405400013 PUSHROD 0000530926 VALVE KEEPER WEDGE 5240530120 VALVE SPRING OUTER 5240530122 VALVE SPRING INNER 5240530805 EXHAUST VALVE X52404100226 INLET VALVE X52404200037 GASKET FOR CYLINDER HEAD X52404200052 SEAL RING 5240380471 CONROD BOLT 0120373618 OIL CONTROL RING 0090375019 TAPER FACE COMP RING X00009806 RECTANGLR-SECT RING 5240336702 CRANKSHAFT BEARING SIZE 0-1 X52403100003 CRANKSHAFT BEARING SIZE 0-1 5240336602 CRANKSHAFT BEARING LOWER HALF X00016024 CRANKSHAFT BEARING SIZE 0-0 5240332630 CRANKSHAFT BEARING AUX PTO END 5240111380 GASKET X00027830 CYLINDER LINER SIZE 0 C23 5240510110 BEARING CAMSHAFT STD
PART NUMBER XP59420700027
ENGINE TYPE MTU 4000 ENGINE
DESCRIPTION IMPELLER
DIMENSIONS N/A
UNIT WEIGHT 3.734 KG
HS CODE 84139100
NATO-VERS.-NR. N/A
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

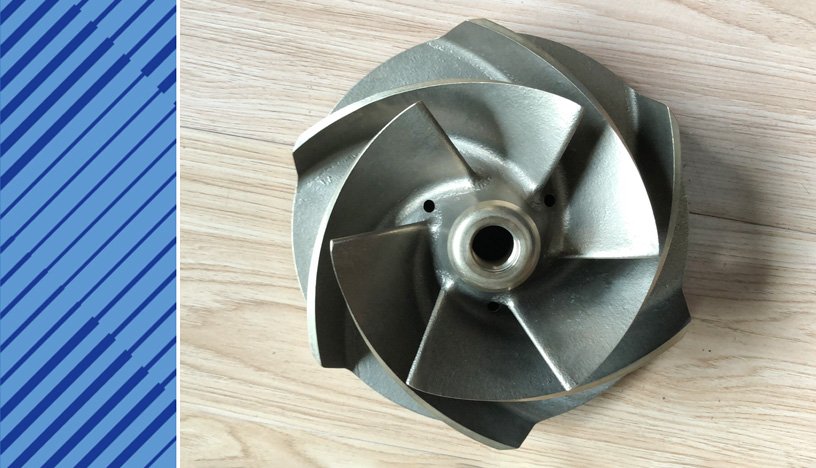

MTU 4000 SEAWATER PUMP XP59420700027 IMPELLER

MTU XP59420700027 Technical Engineering Exploded View

MTU 4000 SEAWATER PUMP XP59420700027 IMPELLER

C/N Description Part-Number Qty
50 BEARING HOUSING FOR SEAWATER PUMP X59420700004 001
100 CYL. ROLLER BEARING 205412422005 001
150 RING SNAP 000472080000 001
200 BUSHING X59420700009 001
250 BEARING ANGULAR CONT ACT ROLLER 200628103006 001
300 SHAFT WAT PUMP HT CO OLING CIRCUT 5272010505 001
350 SEAL CARRIER FOR SEAWATER PUMP X59620700004 001
400 O-RING 700429135000 001
450 SEAL OIL 48 X 72 X 8 MNN386 700386048001 001
500 O-RING 700429190001 001
550 IMPELLER FOR SEAWATER PUMP X00037017 001
600 WASHER 000125008427 004
650 HEX SCREW 000000004389 004
700 SPIRAL HOUSING FOR SEAWATER PUMP X59620700001 001
750 GEAR X00041743 001
800 WASHER 200433013000 006
850 HEX SCREW 000000000905 002
900 HEX SCREW 304017012018 004
950 COPPER SEALING RING 007603038101 001
1000 PLUG 000908038003 001
1050 PLUG 735210014001 002
1100 ROTARY SEAL X52420200075 001
1150 PLUG X52499100658 002

XP59420700027 SUPERSEDED PART AND EFFECTIVE DATE

XP59420700027 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 XP59420700027 X00037017 N/A
02 XP59420700027 XP59420700027 2015/01/01

MTU 4000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 4000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 4000 M63 1000 1800 170/210 (6.7/8.3)
12V 4000 M63 1500 1800 170/210 (6.7/8.3)
12V 4000 M65L 1680 1800 170/210 (6.7/8.3)
16V 4000 M63L 2240 1800 170/210 (6.7/8.3)
16V 4000 M65L 2240 1800 170/210 (6.7/8.3)
8V 4000 M54R 746 1600 170/210 (6.7/8.3)
8V 4000 M55RN 746 1600 170/210 (6.7/8.3)
8V 4000 M54 895 1800 170/210 (6.7/8.3)
8V 4000 M53 950 1800 170/210 (6.7/8.3)
12V 4000 M55R 1119 1600 170/210 (6.7/8.3)
12V 4000 M53R 1140 1600 170/210 (6.7/8.3)
12V 4000 M54 1193 1800 170/210 (6.7/8.3)
12V 4000 M64 1398 1800 130/150 (5.1/5.9)
12V 4000 M93 2340 2100 165/190 (6.5/7.5)
12V 4000 M73L 2160 2050 170/210 (6.7/8.3)
16V 4000 M73 2560 1970 170/210 (6.7/8.3)
12V 4000 M93L 2580 2100 170/210 (6.7/8.3)
20V 4000 M65L 2800 1800 170/210 (6.7/8.3)
