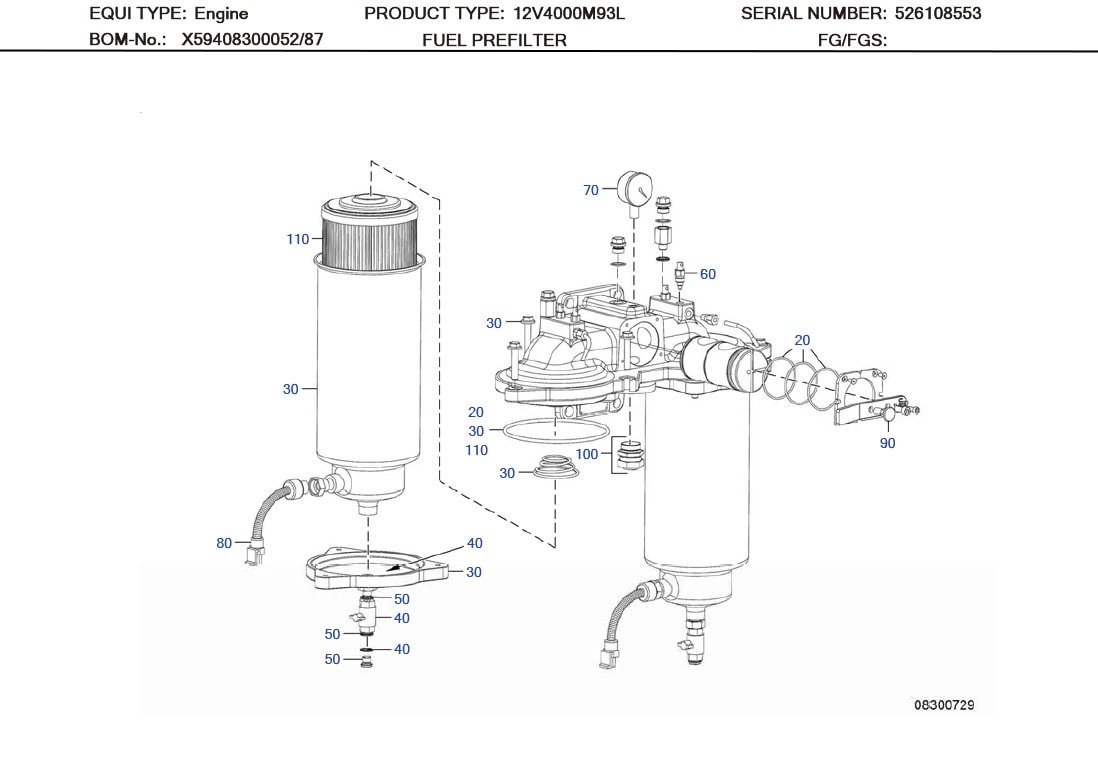

MTU XP59408300054 Technical Engineering Exploded View

MTU XP59408300054 Technical Engineering Exploded View

MTU XP59408300054 Technical Engineering Exploded View

C/N Description Part-Number Qty
20 GASKET KIT XP59400600004 001
30 BOWL KIT XP59408300061 002
40 DRAIN VALVE XP59408300060 002
50 CONNECTION KIT XP59400600003 002
60 VENT VALVE XP59408300059 004
70 PRESSURE GAUGE XP59408300055 001
80 LEVEL MONITOR RACOR WASSERSONDE X00E50209325 002
90 LOCKING DEVICE XP59408300062 001
100 CONNECTION XP59408300063 002

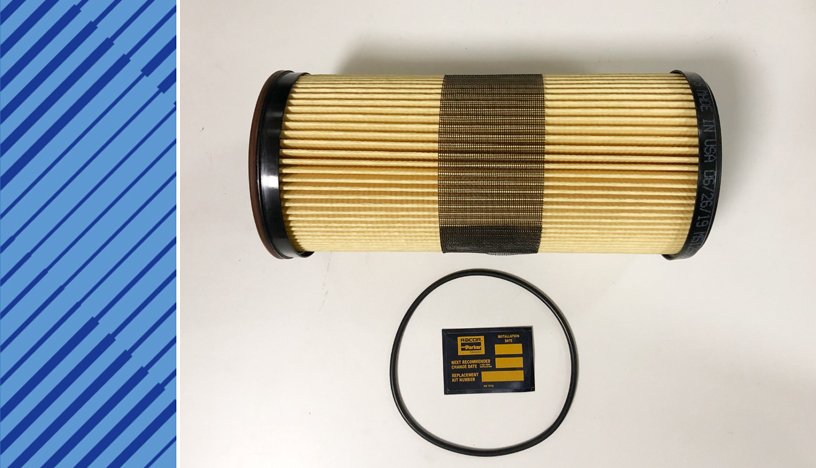

110 FILTER CARTRIDGE FBO60337 14" -5 MIC. XP59408300054 002

MTU 4000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 4000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 4000 R43 1000 1800 170/210 (6.7/8.3)
8V 4000 R43L 1200 1800 170/210 (6.7/8.3)
12V 4000 R43 1500 1800 170/210 (6.7/8.3)
12V 4000 R43L 1800 1800 170/210 (6.7/8.3)
16V 4000 R43R 2000 1800 170/210 (6.7/8.3)
16V 4000 R43 2200 1800 170/210 (6.7/8.3)
16V 4000 R43L 2400 1800 170/210 (6.7/8.3)
20V 4000 R43 2700 1800 170/210 (6.7/8.3)
20V 4000 R43L 3000 1800 170/210 (6.7/8.3)
20V 4000 R63R 2700 1800 170/210 (6.7/8.3)
20V 4000 R63 3000 1800 170/210 (6.7/8.3)
20V 4000 R63L 3300 1800 170/210 (6.7/8.3)
12V 4000 R54 1800 1800 130/150 (5.1/5.9)
16V 2000 M93 1790 2450 170/210 (6.7/8.3)
16V 4000 R54 2400 1800 170/210 (6.7/8.3)
12V 4000 R64 1500 1800 170/210 (6.7/8.3)
12V 4000 R84 1800 1800 170/210 (6.7/8.3)
16V 4000 R64 2000 1800 170/210 (6.7/8.3)
