MTU 4000 Parts | 5240530905 | EXHAUST VALVE

5240530905 EXHAUST VALVE

Other
Other XP59408300054 FILTER CARTRIDGE XP59400600004 GASKET KIT XP52718300064 GASKET KIT XP52718300065 CIRCLIP KIT XP52718300060 PAPER INSERT X52808100004 FUEL DELIVERY PUMP 8691840027 ROTOR COMPLETE 5240530905 EXHAUST VALVE 5240531101 INLET VALVE 5240550550 BUSHING X52499100259 ADJUSTING SCREW X52405400013 PUSHROD 0000530926 VALVE KEEPER WEDGE 5240530120 VALVE SPRING OUTER 5240530122 VALVE SPRING INNER 5240530805 EXHAUST VALVE X52404100226 INLET VALVE X52404200037 GASKET FOR CYLINDER HEAD X52404200052 SEAL RING 5240380471 CONROD BOLT 0120373618 OIL CONTROL RING 0090375019 TAPER FACE COMP RING X00009806 RECTANGLR-SECT RING 5240336702 CRANKSHAFT BEARING SIZE 0-1 X52403100003 CRANKSHAFT BEARING SIZE 0-1 5240336602 CRANKSHAFT BEARING LOWER HALF X00016024 CRANKSHAFT BEARING SIZE 0-0 5240332630 CRANKSHAFT BEARING AUX PTO END 5240111380 GASKET X00027830 CYLINDER LINER SIZE 0 C23 5240510110 BEARING CAMSHAFT STD
PART NUMBER 5240530905
ENGINE TYPE MTU 4000 ENGINE
DESCRIPTION EXHAUST VALVE
DIMENSIONS 233.3 X 56 X 10.915
UNIT WEIGHT 0.350 KG
HS CODE 84099900
NATO-VERS.-NR. 2815123843358
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

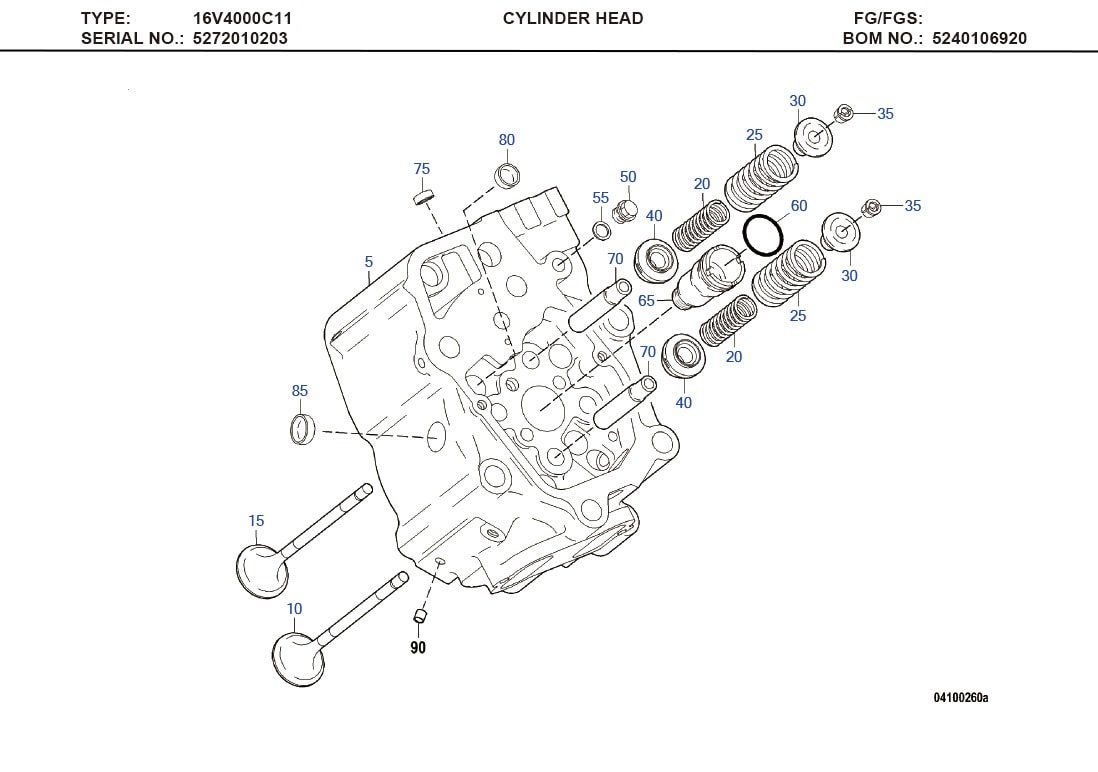

MTU 5240530905 Technical Engineering Exploded View

MTU 5240530905 Technical Engineering Exploded View

MTU 5240530905 Technical Engineering Exploded View

C/N Description Part-Number Qty
5 CYLINDER HEAD 5240163101 001
10 INLET VALVE 5240531101 002
15 EXHAUST VALVE 5240530905 002
20 SPRING VALVE INNER 5240530122 004
25 SPRING VALVE OUTER 5240530120 004
30 RETAINER VALVE SPRING 5240530125 004
35 VALVE COLLET 0000530926 008
40 ROTATOR VALVE 0000534335 004
50 PLUG 000910014004 001
55 WASHER A COP 007603014102 001
60 O-RING 700429039000 001
65 TUBE INJECTOR 5240160153 001
70 GUIDE CYL HD VALVE 5240530530 004
75 SEALING CAP CYL HD 5550160633 001
80 PLUG CUP 5800160033 004
85 PLUG CUP 5240160233 005

5240530905 SUPERSEDED PART AND EFFECTIVE DATE

5240530905 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5240530905 23540727 N/A
02 5240530905 5240530705 2002/05/01
03 5240530905 5240530905 2002/06/01

MTU 4000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 4000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 4000 R43 1000 1800 170/210 (6.7/8.3)
8V 4000 R43L 1200 1800 170/210 (6.7/8.3)
12V 4000 R43 1500 1800 170/210 (6.7/8.3)
12V 4000 R43L 1800 1800 170/210 (6.7/8.3)
16V 4000 R43R 2000 1800 170/210 (6.7/8.3)
16V 4000 R43 2200 1800 170/210 (6.7/8.3)
16V 4000 R43L 2400 1800 170/210 (6.7/8.3)
20V 4000 R43 2700 1800 170/210 (6.7/8.3)
20V 4000 R43L 3000 1800 170/210 (6.7/8.3)
20V 4000 R63R 2700 1800 170/210 (6.7/8.3)
20V 4000 R63 3000 1800 170/210 (6.7/8.3)
20V 4000 R63L 3300 1800 170/210 (6.7/8.3)
12V 4000 R54 1800 1800 130/150 (5.1/5.9)
16V 2000 M93 1790 2450 170/210 (6.7/8.3)
16V 4000 R54 2400 1800 170/210 (6.7/8.3)
12V 4000 R64 1500 1800 170/210 (6.7/8.3)
12V 4000 R84 1800 1800 170/210 (6.7/8.3)
16V 4000 R64 2000 1800 170/210 (6.7/8.3)
