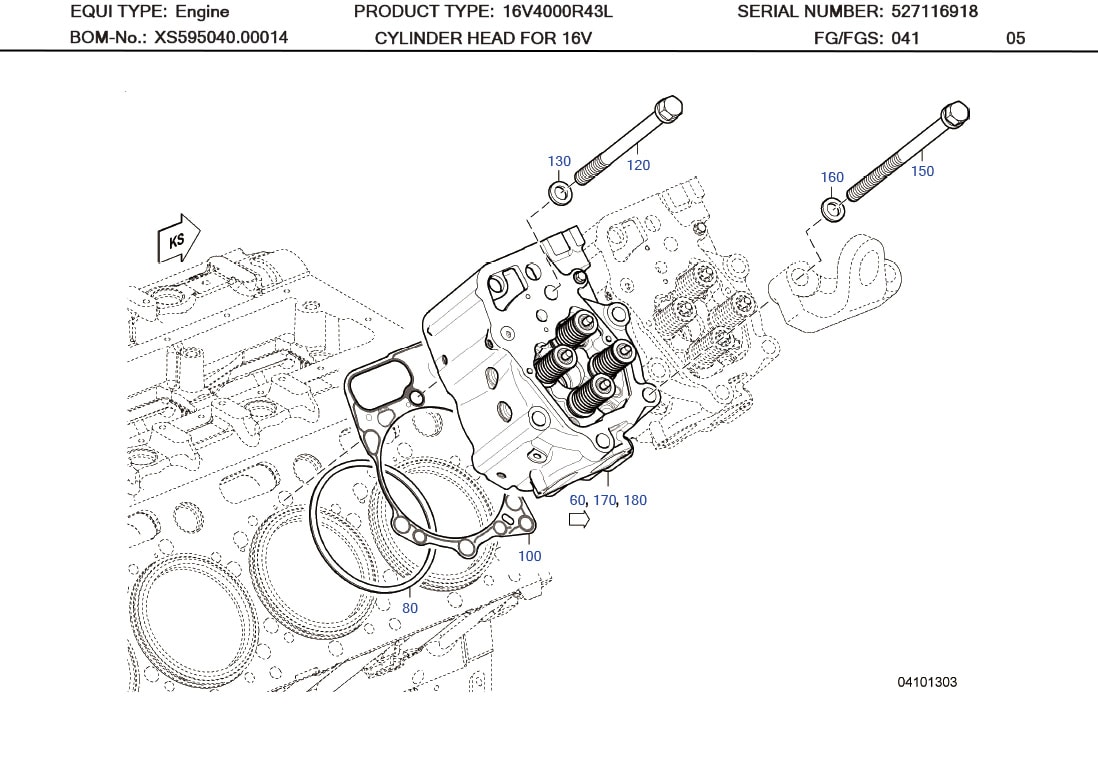

C/N | Description | Part-Number | Qty |
---|---|---|---|
60 | CYL.HEAD WITH VALVES | X52904100142 | 016 |
80 | SEAL RING | X52404200052 | 016 |
100 | GASKET FOR CYLINDER HEAD | X52404200037 | 016 |
120 | BOLT CYL HD | 5249900701 | 084 |
130 | WASHER THRUST | 5240110062 | 084 |
150 | BOLT HEX CYL HD | 5240160069 | 012 |
160 | WASHER THRUST | 5240110062 | 012 |
170 | CYLINDER HEAD | RX52404100035 | 001 |
180 | CYL.HEAD WITH VALVES | EX52904100142 | 001 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | X52404200037 | X52404200044 | N/A |
02 | X52404200037 | X52404200037 | 2021/04/26 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 4000 R43 | 1000 | 1800 | 170/210 (6.7/8.3) |
8V 4000 R43L | 1200 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43L | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43R | 2000 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43 | 2200 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43L | 2400 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43 | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43L | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63R | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63 | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63L | 3300 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R54 | 1800 | 1800 | 130/150 (5.1/5.9) |
16V 4000 M73L | 2832 | 2050 | 170/190 (6.7/7.5) |
16V 4000 R54 | 2400 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R64 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R84 | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R64 | 2000 | 1800 | 170/210 (6.7/8.3) |
