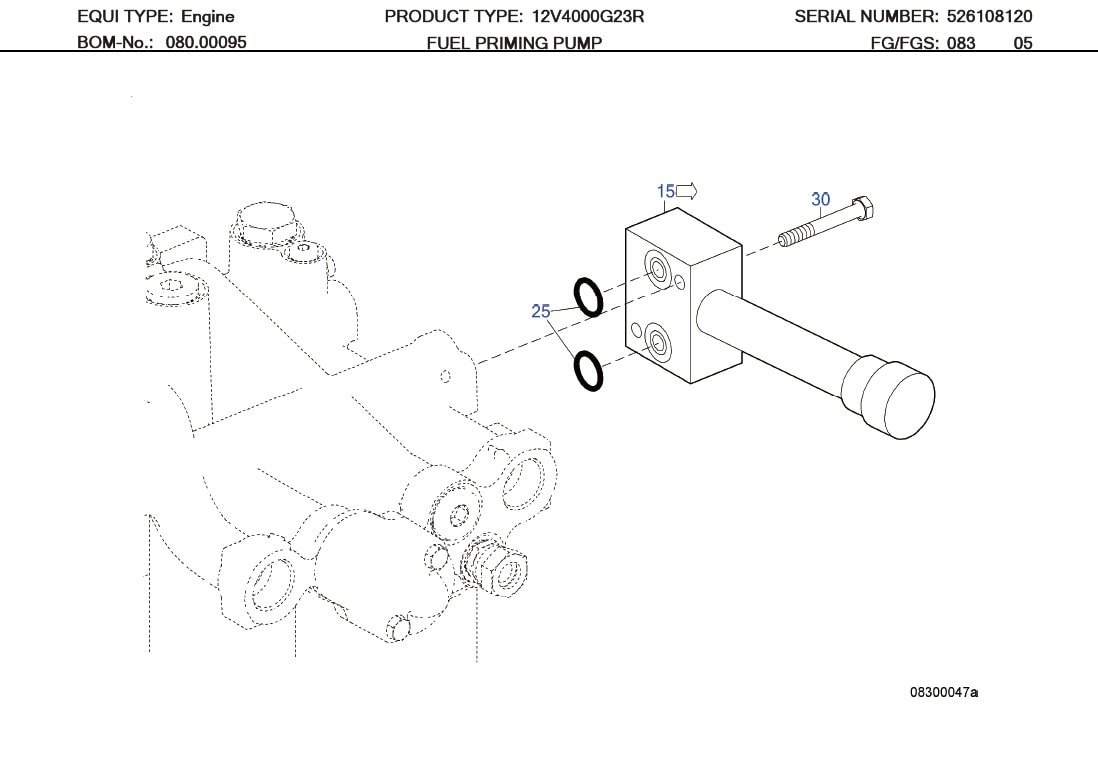

C/N | Description | Part-Number | Qty |
---|---|---|---|
15 | HAND PUMP FOR FUEL | X52408300025 | 001 |
25 | O-RING | 700429016003 | 002 |
30 | BOLT HEX | 304017008087 | 002 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | X52408100020 | 524SK1240 | N/A |
02 | X52408100020 | 0000912590 | 2008/06/01 |
03 | X52408100020 | 5240900950 | 2008/07/01 |
04 | X52408100020 | X52408300025 | 2008/08/01 |
05 | X52408100020 | X52408100020 | 2015/01/30 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 4000 R43 | 1000 | 1800 | 170/210 (6.7/8.3) |
8V 4000 R43L | 1200 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43L | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43R | 2000 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43 | 2200 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43L | 2400 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43 | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43L | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63R | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63 | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63L | 3300 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R54 | 1800 | 1800 | 130/150 (5.1/5.9) |
12V 4000 G23R | 1205 | 1500 | 170/210 (6.7/8.3) |
16V 4000 R54 | 2400 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R64 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R84 | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R64 | 2000 | 1800 | 170/210 (6.7/8.3) |
